InGaAs APD（Φ80μm）
CTAPD80V1
Otosky CTAPD80V1 exclusively developed for Laser Range Finding ,which is a 80μm InGaAs Avalanche Photodiode with a hybrid preamplifier for the use in highspeed,ultra-low light detection,and can be used for laser range finding,OTDR and Spatial light transmission.
Delivery
FOB
minimum order
1 unit
Country of Origin
Made in China
Quantity
Description
Otosky CTAPD80V1 exclusively developed for Laser Range Finding ,which is a 80μm InGaAs Avalanche Photodiode with a hybrid preamplifier for the use in highspeed,ultra-low light detection,and can be used for laser range finding,OTDR and Spatial light transmission.
Application
- Distance measurement
- Spatial light transmission
- OTDR
- Low-light-level detection

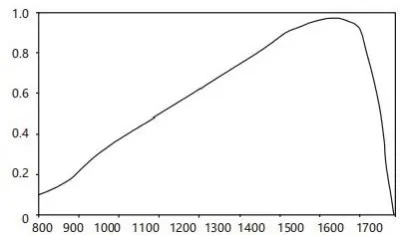

Typical response curve graph
Electro-Optical Characteristics (@Tc=22±3℃)
Parameter | Symbol | Test Condition | Min | Typ. | Max. | Unit |
Response Spectrum | λ | 950～1700 | nm | |||
Responsivity | Re | λ=1550nm Pin=1μW,M=1 | 0.90 | 1.05 | —— | AW |
Multiplication factor | M | λ=1550nm Pin=1μW,Vr=VBR-2V | 10.00 | |||
Dark Current | lb | VR=VBR-2V Pin=0uW | 16.00 | 50.00 | nA | |
-3dB cut-off frequency | BW | M=10 RL=50Ω | 2.5 | —— | —— | GHz |
Reverse Breakdown Voltage | VBR | IR=10μA,Pin=0μW | 40.0 | 50.00 | V | |
Capacitance | C | VR=VBR-2V,f=1MHz | —— | 0.38 | 0.50 | pF |
Temperature coefficient of VeR | Y | IR=10μA,Pin=0μW -55℃~+85℃ | 0.03 | 0.08 | 0.13 | V/℃ |
