Sensor head
|
|
|
|
Model
|
GY3100-20
|
GY3100-50
|
GY3100-80
|
GY3100-150
|
|
NO.
|
Category
|
|
|
1
|
Optical path principle
|
Diffuse
|
Diffuse
|
Diffuse
|
Diffuse
|
|
2
|

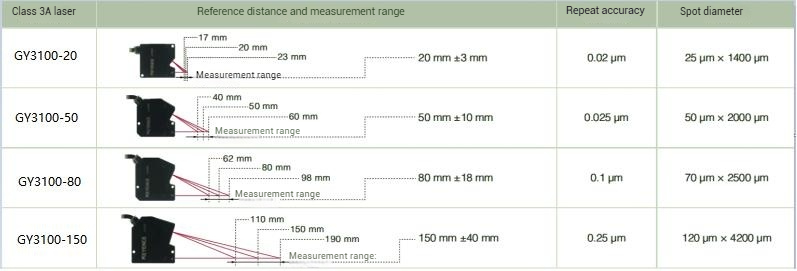

Reference distance
|
20mm
|
50mm
|
80mm
|
150mm
|
|
3
|
Measurement range
|
±3mm
|
±10mm
|
±18mm
|
±40mm
|
|
4
|
light source
|
Wavelength
|
655nm
|
655nm
|
655nm
|
655nm
|
|
5
|
Type
|
3A
|
3A
|
3A
|
3A
|
|
6
|
Power
|
4.8mW
|
4.8mW
|
4.8mW
|
4.8mW
|
|
7
|
Linearity (accuracy)
|
±0.02% F.S.
（F.S. =6 mm）
|
±0.02% F.S.
（F.S. =20 mm）
|
±0.02% F.S.
（F.S. =36 mm）
|
±0.02% F.S.
（F.S. =80 mm）
|
|
8
|
Light spot diameter
|
25um*1400um
|
50um*2000um
|
70um*2500um
|
120um*4200um
|
|
9
|
Repeat accuracy
|
0.02 μm
|
0.025 μm
|
0.1 μm
|
0.25 μm
|
|
10
|
Sampling frequency
|
2.55/5/10/20/50/100/200/500/1000μs(9 levels to choose from)
|
|
11
|
LED indication
|
Laser Open
|
|
12
|
Environmental characteristics
|
Temperature characteristics
|
0.01% F.S./°C（F.S. =6 mm）
|
0.01% F.S./°C （F.S. =20 mm）
|
0.01% F.S./°C （F.S. =36 mm）
|
0.01% F.S./°C （F.S. =80 mm）
|
|
13
|
Ambient light
|
Incandescent or fluorescent lamp: maximum 10000 lux
|
|
14
|
Ambient humidity
|
Operating/Storage: 35~85% RH (no condensation)
|
|
15
|
Ambient temperature
|
Operating: 0~+50℃,
|
|
16
|
Protection level
|
IP67
|
|
17
|
Vibration (durability)
|
10 to 55 Hz, 1.5mm double amplitude, 2 hours each in X, Y, and Z directions
|
|
18
|
Shock (durability)
|
150m/s2, 6 directions, 3 times each (up and down, left and right, front and back)
|
|
19
|
Material
|
Aluminum alloy
|
|
20
|
Cable length
|
0.3 meters
|
|
21
|
Weight
|
About 250g
|
About 260g
|
About 280g
|
About 300g
|
|
22
|
Installation method
|
suspended installation
|
|
23
|
Reference size
|
|
|
Controller
|
|
Model
|
GY3100
|
|
1
|
Input/output type
|
NPN/PNP universal
|
|
2
|
Number of sensor head connections
|
2
|
|
3
|
Applicable sensor heads
|
Compatible
|
|
4
|
Display
|
Digital tube
|
|
5
|
External Interface
|
Ethernet
|
100BASE-TX/10BASE-T no protocol (TCP/UDP), EtherNet/IP, RJ45
|
|
6
|
RS-232C
|
Baud rate: 9600 to 115200 bps
|
|
Data length: 8 bits Stop length: 1 bit Parity: None/Even/Odd
|
|
7
|
USB
|
USB2.0 High-speed compatible
|
|
8
|
EtherNet/IP interface
|
(Explicit information), UCMM and Class 3 Number of connections 32 Support Conformance Test Version.CT14
|
|
9
|
PLC link
|
The device supports Mitsubishi Electric's MELSEC iQ-R series, iQ-F series, Q series, L series, and FX series, but cannot be used simultaneously with EtherNet/IP™, CC-Link, or DeviceNet
|
|
10
|
Analog output
|
Analog voltage output (OUTV): -10V~+10V, output impedance: 100Ω
|
|
Analog current output (OUTA): 4mA~20mA, maximum load resistance: 350Ω
|
|
11
|
Key Features
|
Exposure time
|
Automaticfixed
|
|
12
|
Measurement cycle
|
200μs-400μs
|
|
13
|
Material specification
|
Rough surface metal
|
|
14
|
Filter processing
|
Median/average/differential/high pass/low pass/band pass
|
|
15
|
Output
|
Scaling/various holds/zeroing/measurement value recording
|
|
16
|
Display
|
Measured value/Threshold value/Analog output voltage value or current value/Judgment result/Resolution/Exposure time/Internal recording status/Peak light intensity
|
|
17
|
System
|
Save/initialize/measurement information display/communication setting/sensor head calibration/key lock/zero storage/time input
|
|
18
|
Measurement items
|
Height/Thickness/Operation
|
|
19
|
Rating
|
Power supply voltage
|
DC 24V
|
|
Current consumption
|
0.6A or less when 1 sensor head is installed
|
|
20
|
Environmental characteristics
|
Protection level
|
/
|
|
21
|
Temperature range
|
When one or less sensor head expansion modules are connected: 0 to 50°C
When two or more sensor head expansion modules are connected: 0 to 40°C
|
|
22
|
Humidity range
|
35 to 85%RH (non-condensing)
|
|
23
|
Material
|
Case
|
|
24
|
Dimensions
|
100mm*80mm*140mm
|
|
25
|
Weight
|
Less than
|
|
Accessories
|
|
NO.
|
Name
|
Description
|
Quantity
|
|
1
|
Power adapter
|
DC24V, used to power the controller
|
1
|
|
2
|
Controller sensor head cable
|
1 meter as standard, customizable
|
1
|
|
3
|
Automation software
|
/
|
1
|
|
4
|
User manual
|
/
|
1
|
