Microvolume Spectrophotometer

Nanobio 500

NanoBio 500 is a versatile microvolume spectrophotometer (190 ~ 850 nm) from Optosky, integrating 20+ years of spectroscopic expertise.

Delivery

FOB

minimum order

1 unit

Country of Origin

Made in China

Quantity

Contact Now

Description

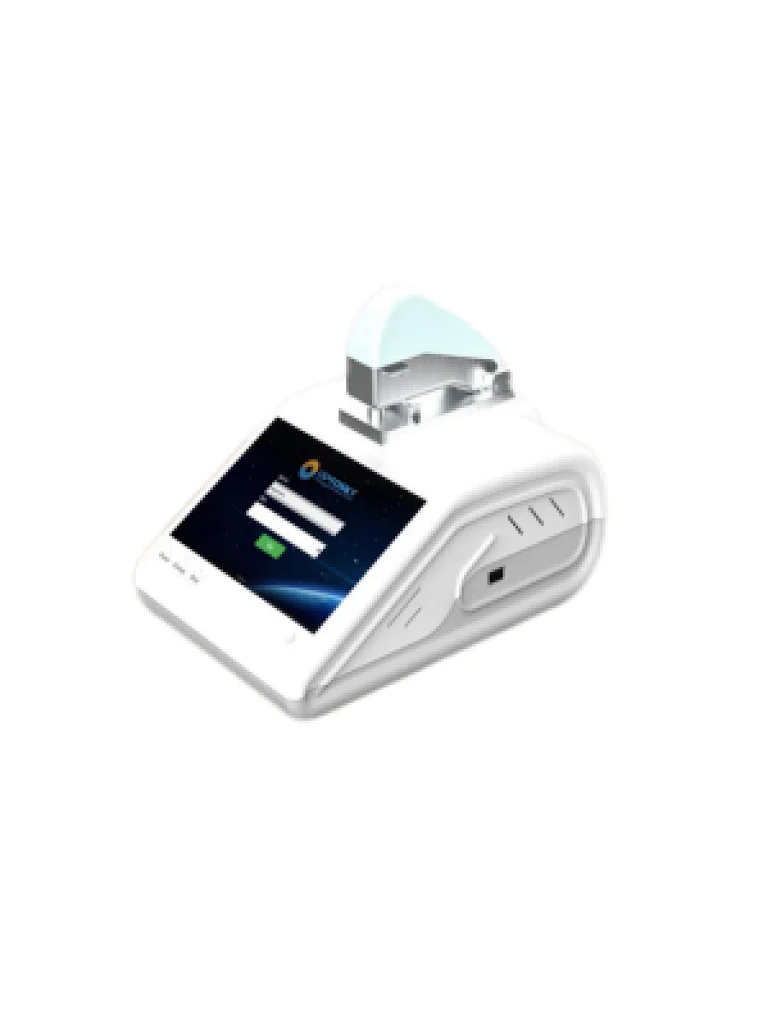

NanoBio 500 is a versatile microvolume spectrophotometer (190 ~ 850 nm) from Optosky, integrating 20+ years of spectroscopic expertise. It uses a high-performance fiber optic spectrometer and a stable light source (pulse xenon lamp or LED from Hamamatsu, Japan), ensuring rapid and precise detection of nucleic acids and proteins. It supports three modes: microvolume, cuvette, and fluorescence, adapting automatically for wide concentration ranges. The cuvette mode includes temperature control and mixing, while fluorescence mode enhances sensitivity. NanoBio 500 is essential in labs worldwide.

NanoBio 500L, an ultra-micro volume nucleic acid analyzer, focuses on 260nm, 280nm, 460nm, and 600nm UV spectrophotometry for nucleic acids and proteins. Featuring an Android OS and a 7-inch touchscreen, it offers PC-free operation, powered by a lithium battery for over 5 hours. Data can be printed or exported via USB, ensuring easy analysis and storage.

Model	Description
NanoBio500	General purpose, pulsed xenon light source, full spectrum, cuvette, fluorescence method
NanoBio500L	High-precision, long-life LED light source, OD600 cuvette

Features

Adaptive range adjustment
Fast detection: <3 seconds
Spectral range: 190-850 nm
Full touchscreen operation, 7-inch HD display
Long-life light source (up to 10 years)
No preheating; ready to use immediately
High-performance fiber optic spectrometer
Stable constant power light source
Data interfaces: USB, Bluetooth, Wi-Fi
Added cuvette mode
Comes with temperature control and stirring function
Highly sensitive fluorescence detection mode
Advanced calculation algorithm; full band

Application

Research laboratories
Hospitals and biochemical laboratories
Biological laboratories
Chemical laboratories
Environmental testing

Parameters	NanoBio 500	NanoBio 500L
Microvolume Mode
Sample Size	0.5 ~ 2.0 μL
Measurement Cycle	< 5s
Optic Path Length	0.05 ~ 2mm ，Adaptive Range Adjustment Based on Sample Concentration
Wavelength Range	190 ~850 nm	260nm 、280nm 、600nm
Light Source	Xenon flash lamp	Long-Life Narrow-Linewidth LED Light Source
Detector Type	2048 pixel linear CCD array	Ultraviolet Silicon Photodiode
Wavelength Accuracy	1 nm	1 nm
Wavelength Resolution	≤ 2 nm (FWHM at Hg 253.65 nm)	NA
Absorbance Precision	0.003 Abs(1mm)
Absorbance Accuracy	1% (0.76 at 257 nm)
Detection Limit	1 ng/μL (dsDNA) ， 2.0mm Optical path	5 ng/μL (dsDNA)
Max Concentration	25,000 ng/μL (dsDNA) ， 0.05mm Optical path	5,000 ng/μL (dsDNA)
Absorbance Range	0.02~500 (10mm)	1-100A
DNA range	1 ~ 25000ng/ul (dsDNA)	5-5000ng/μL(dsDNA)
Cuvette mode
Detection type	All	OD600
Optic Path Length	1mm 、2mm 、5mm、 10mm（standard）
Capacity	3.5ml（10mm）
Absorbance Range	0-4A(10mm)
Minimum Height	5mm
Temperature	37±0.5℃
Rotating Speed	0-2000RPM/min
Stirrer Size	3*6mm
Fluorescence mode
Light Source	UV LED（~375nm），Blue LED（~470nm）【standard】，green LED （~525nm），red LED（~635nm）
Excitation Channel	UV: 361-389nm, blue light: 442-497nm, green light: 490-558nm, red light: 613-662nm
Hair color Channel	Channel 1: 435-485nm, Channel 2: 514-567nm, Channel 3: 565-650nm, Channel 4: 664-740nm
Detector	Photodiode: Measuring range 300-1000nm
Tube Type	0.5ml thin wall centrifuge tube
Scope Of test	DNA：0.5pg/ul-25000ng/ul ，RNA：250pg/ul-20000ng/ul， protein：12.5ug/ml-750mg/ml
Others
Surface Construction	304 stainless steel and quartz fiber
Operation System	Android OS
Panel Type	Multi-touch capacitive touch screen
Panel Size	7 inches
Panel Resolution	800 × 1080
Endurance Time	5 hrs
Li-ion Battery	60 Wh
Operating Voltage	12V DC
Power Consumption	9 W	7.5 W
Standby Power	1.5 W	1.5 W
Data interface	USB 、Bluetooth、WIFI
Dimensions	286 × 196 × 227 mm（L ×W×H）
Weight	3.8 Kg	3. Kg
