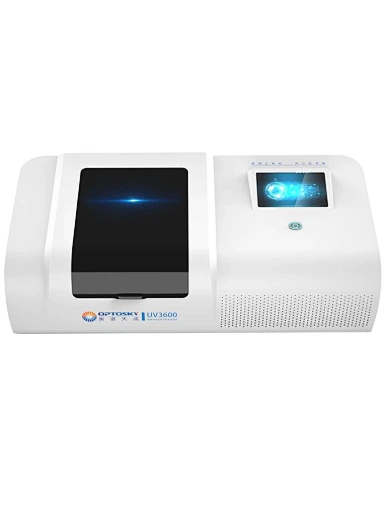

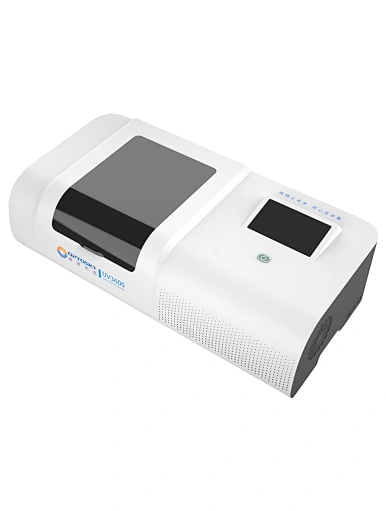

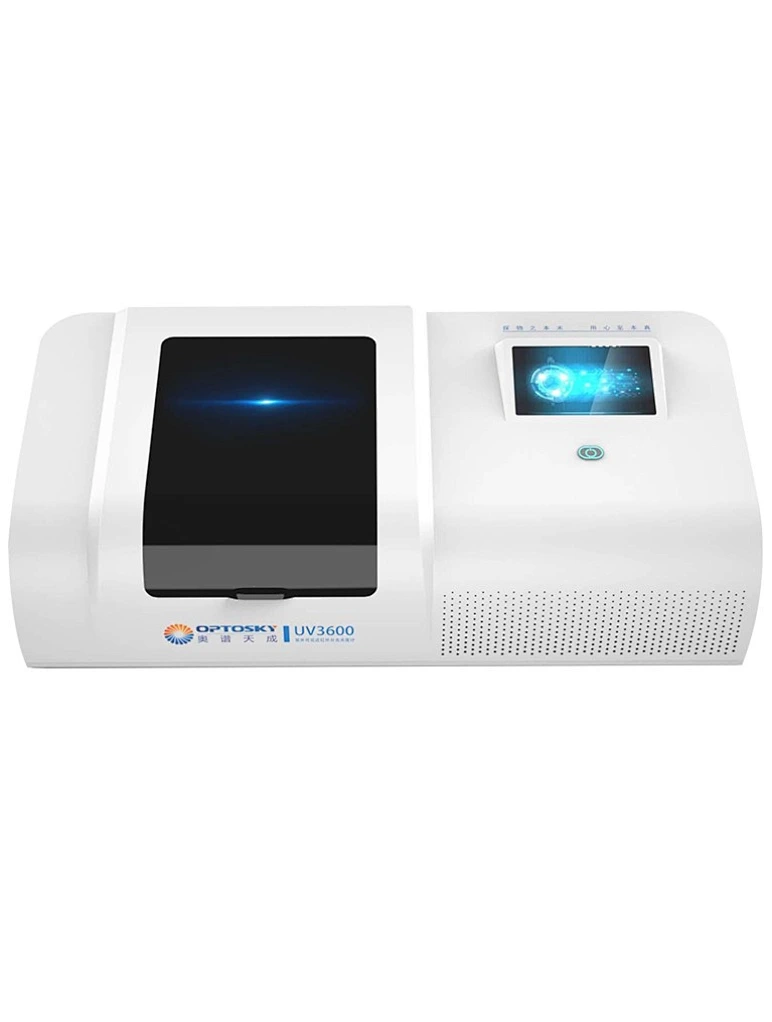

UV-Vis-NIR Spectrophotometer

UV3600

UV3600 is an ultraviolet-visible-near-infrared spectrophotometer, which can continuously acquire spectral signals in the range of 175~3600nm. It has three built-in detectors: PMT, InGaAs, and PbS, respectively detecting 175~900nm, 900~1700nm, and 1700~3600nm, and achieved the best sensitivity and signal-to-noise ratio.

Delivery

EXW

Country of Origin

Made in China

Quantity

Contact Now

Description

UV3600 is an ultraviolet-visible-near-infrared spectrophotometer, which can continuously acquire spectral signals in the range of 175~3600nm.

It has three detectors: PMT, InGaAs, and PbS, respectively detecting 175~900nm, 900~1700nm, and 1700~3600nm to achieve the best sensitivity and signal-to-noise ratio. The UV3600 provides accurate transmittance or reflectance measurements in the UV to NIR region. By using InGaAs detectors and PbS detectors, the sensitivity level in the ultraviolet and near-infrared regions is extremely improved.

The instrument uses a high-power 50W halogen lamp and a deuterium lamp (socket type), which achieves excellent measurement results and is easy to replace.

Wavelength scanning speed of UV3600: ultraviolet and visible region: about 4500nm/min, PMT/InGaAs region: about 9000nm/min, near-infrared PbS region: about 4000nm/min. (except the time required for various switching)

Features

Measurement band: 175~3600 nm
Ultra-low stray light optical path
Three detectors with extremely high sensitivity
Integrating sphere, solid samples can also be measured
Automatic six-way pool: 6 samples can be placed at a time
50W halogen lamp and deuterium lamp (socket type)
Simple and intuitive operation menu
High-speed data acquisition
USB data output interface,process data online
Equipped with three-color breathing lights
Superior light concentrating system ,Low transmittance

Application

Research institutes
Biology
Agriculture and food inspection
Environmental science
Water quality analysis
Metallurgical industry

Model	UV3600	UV3600-TP
Wavelength range	175~3600nm (below 185nm needs nitrogen purging)
Optical system	Double beam
Number of channels in the sample cell	6 channels, automatic switching
Spectral bandwidth	UV visible region: 0.01～5nm, 0.01nm interval automatic adjustment;
	Near-infrared region: 0.04~20nm, automatic adjustment at intervals of 0.01nm;
Wavelength accuracy	Ultraviolet, visible region: ±0.08nm Near infrared region: ±0.4nm
Wavelength repeatability	Ultraviolet and visible region: within ±0.08nm Near infrared region: within ±0.32nm
Transmittance accuracy	l±0.3% (0-100%)
	l±0.002% (0~0.5A)
	l±0.003% (0.5A~1A)
Transmittance repeatability	l±0.15% (0-100%)
	l±0.001% (0~0.5A)
	l±0.0015% (0.5A~1A)
Stray light	lBelow 0.00008%T (220nm, NaI 10g/L solution)
	lBelow 0.00005%T (340nm, NaNO2)
	lBelow 0.0005%T (1420nm, water)
	lBelow 0.005%T (2365nm, chloroform)
Stability	Less than 0.0002Abs/h (2 hours after power on, 500nm)
Metering method	Absorbance (Abs), Transmittance (%), Reflectance, Energy (E)
Wavelength adjustment	Auto scan
Baseline straightness	±0.004Abs (185-200nm)
	±0.001Abs (200-3000nm)
	±0.005Abs (3000-3300nm)
Photometric range	8 Abs
Detector	PMT, InGaAs, PbS
Detect light source	50W halogen lamp and deuterium lamp (socket type)
Monitor	none	10.1 inch capacitive touch screen
Built-in storage	none	32GB storage, can store 1 million spectra
External Interface	USB2.0	USB2.0, LAN, WIFI
Power supply and power consumption	AC110~240V, 100W
Volume	68.5x 38.5x22.5 cm3
Weight	26kg	28 kg
