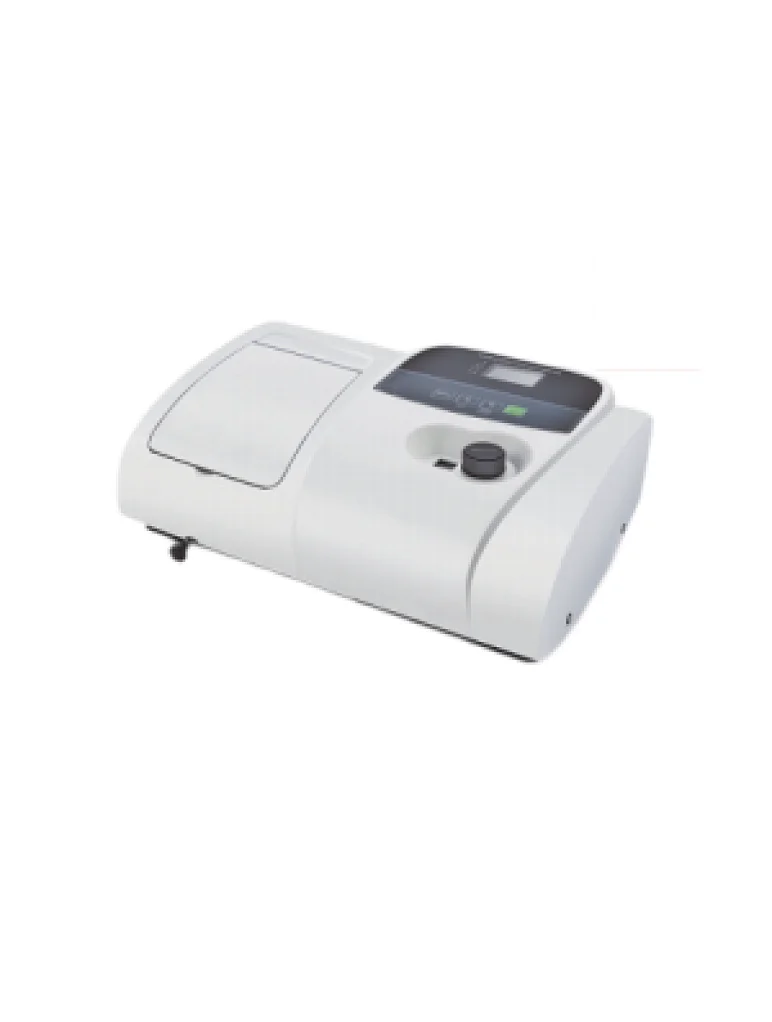

Visible Spectrophotometer

Visible Spectrophotometer

Model NO. VIS 5000

Delivery FOB

minimum order 1 unit

Country of Origin Made in China

Vis-5000 single beam Visible spectrophotometer features high performance cost cheap Vis Spectrophotometer. It’s designed with 128*64 LCD display screen readout transmittance, absorbance, and concentration at one button operation.

Quantity

Contact Now add to cart

Description
Vis-5000 single beam Visible spectrophotometer features high performance cost cheap Vis Spectrophotometer. It’s designed with 128*64 LCD display screen readout transmittance, absorbance, and concentration at one button operation.

Features

LCD display screen at one button Auto-Switch on four channels

Single beam 1200 lines/mm Grating Monochromator

Single beam 1200 lines/mm Grating Monochromator,Vis-5000 connect to computer via USB or connect to printer via parallel port to print

Compact design & Multiple functionality

With a dimension of 420*280*180mm but with a 120mm wide sample compartment and long optical path monochromator for multiple functionality

Four Display Modes, One-Button Quick Switch4G/5G WiFi for auto-fast transfer data

Transmittance, Absorbance, Concentration and Factor (coefficient) mode at one-button quick switch

Application

Quality control

General research

Pharmaceuticals

Biochemical and clinical laboratory applications.



Technical Specification

Model	Vis-5000
Optical System	Single Beam (1200 lines/mm grating)
Wavelength Range	325-1000nm
Spectral Bandwidth	4nm
Wavelength Accuracy	±2nm
Wavelength Repeatability	≤0.5nm
Wavelength Setting	Manual
Photometric Accuracy	±0.5%T
Photometric Repeatability	≤0.2%T
Photometric Range	-0.3-3A, 0-200%T, 0-9999C
Photometric Mode	Transmittance, Absorbance, Concentration and Factor
Stray Light	≤0.2%T@360nm
Stability	≤0.002A/30min
Display	128*64 Dots LCD
Detector	Silicon Photodiode
Data Output Port	USB
Printer Port	Parallel Port
Light Source	Tungsten Halogen Lamp
Power Requirements	AC 85~250V
Dimension	420*280*180mm
Weight	8kg

Standard Accessories

Item	Description	Quantity	Unit
1	Spectrophotometer	1	set
2	Glass cuvette 1cm	4	pcs
3	Power cord	1	pcs
4	User’s Manual	1	pcs
5	Black block	1	pcs
6	Dust Cover	1	pcs

Datasheet Download:

Vis5000_Visible Spectrophotometer_Datasheet_20221107 .pdf
