Portable Water Quality Analyzer

water quality analyzer,optical path,cold light source,

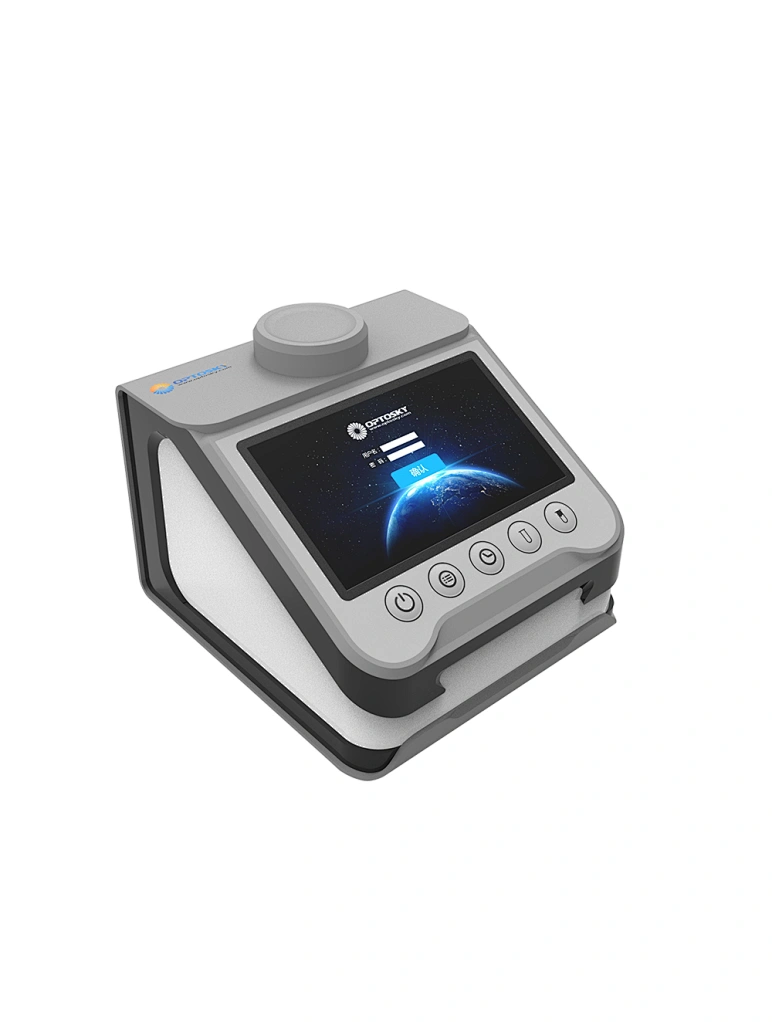

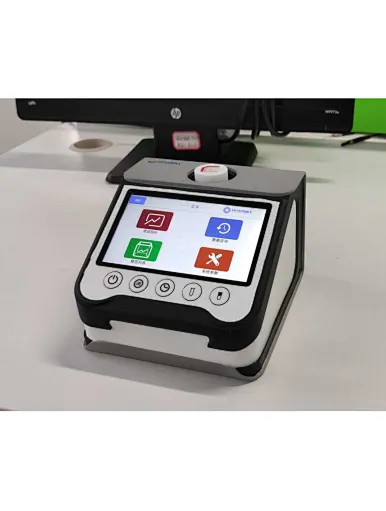

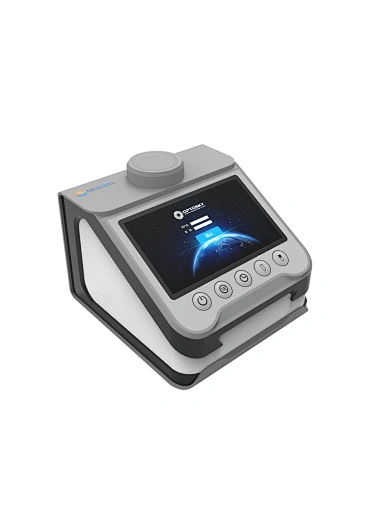

Portable Water Quality Analyzer

Model NO. ATE3000

Delivery FOB

minimum order 1 unit

Country of Origin Made in China

The portable water quality analyzer is a new portable water quality detector designed by Optosky,the instrument adopt imported cold light source,high stability,and it has a unique temperature control module,can maintain the stability of the read value for a long time.This instrument has optical path automatic switching function,can directly test the optical path in the range of 16-25mm.The digester adopts intelligent PID temperature control technology and special structure design,ensure the best heating uniformity.

Quantity

Description:

Features:

• Built-in 420nm,620nm,700nm three LED light sources,long life span,high stability of light source.

• Contains chemical oxygen(COD),ammonia nitrogen,total phosphorus three test items.

• Contains temperature control module,overcome the interference of ambient temperature measurement precision.

• Optical path antomatic switching function,can easy to test the optical path in the range of 16-25mm.

• Digestion colorimetric use the same digestion tube,no need to change the tube,simple and safe operation.

• Has dilution function,directly show the concentration of the water sample.

• Support user-built standard curve.

• Support factory reset.

• Support battery power,USB power and PC connection for data acquisition.

• Data can be printed through a printer

• Timer function

• The digestion apparatus adopts intelligent PID temperature control technology,the heating is uniform and fast.

• The digestion apparatus has overtemperature protection,ensure the safety of the digestion process.

Applications:

• Sewage treatment plant

• Environmental monitoring

• Universities and colleges,scientific research institutions

• Industry:electroplate,papermaking,pharmacy printing and dyeing,textile,leather,winemaking

ATE3000 System Parameters
Measure Room	Fit to tube diameter at 16-25 mm
Measure Parameters	Measure Range	Accuracy	Repeatability
COD	20- 100mg/L(customizable)	COD≤50mg/L,≤5mg/L; COD＞50mg/L,≤±5％	≤±5％
Ammonia Nitrogen	0.000~ 1.000mg/L(customizable)	≤±5％	≤±5％
NO2-N	0.000~0. 150mg/L(customizable)	≤±5％	≤±5％
NO3-N	0.000~0.500mg/L(customizable)	≤±5％	≤±5％
Total Nitrogen	0.000~0.500mg/L(customizable)	≤±5％	≤±5％
Total Phosphorus	0.000~ 1.600mg/L(customizable)	≤±5％	≤±5％
Orthophosphate	0.000~ 1.000mg/L(customizable)	≤±5％	≤±5％
Optical stability	＜0.003A/20min
Power supply	Battery(5 hours) or DC 5V
USB interface	Support connect to PC
Printer	Optional
Timer	Have
Smart power saving	10min(time settable) automatic shutdown
Environmental	5-40℃;relative humidity＜85％,no condensation
size	152mm143mm115mm
Digestion device
Power supply	DC 12V
Digestion hole	6
Temp accuracy	±0.5℃
Temp range	room temperature- 199℃ adjustable
Temp control time	0-999min adjustable(buzzer alarm prompt at the end of digestion)
Size	181mm126mm142mm
Protective cover	Protect personnel safety
