USB Series Spectrometer

USB Series Spectrometer

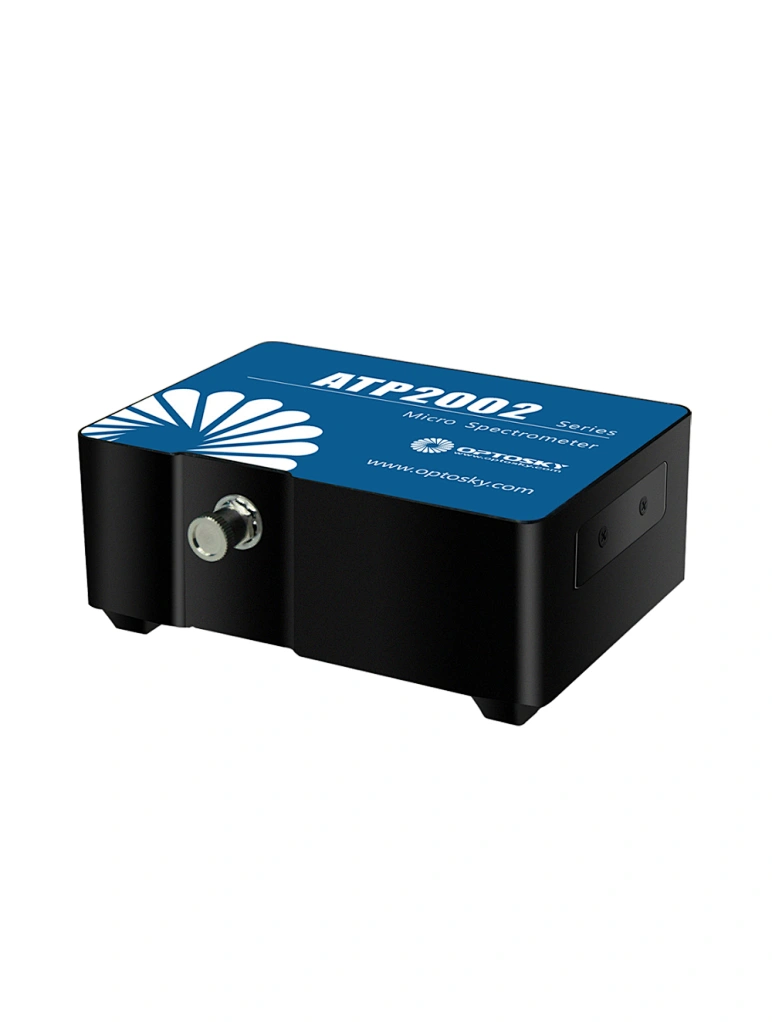

Model NO. ATP2002

Delivery FOB

minimum order 1 unit

Country of Origin Made in China

Quantity

Description：

Optosky ATP2002 Spectrometer built in pulsed xenon driver has a low-noise, high-performance, and cost-effective. The sensor used 2048 pixel CCD responding from 200-1100 nm.

ATP20002 Spectrometer is ideal for fast-detect because of high A/D converter frequency and the high-speed data transmission. In the Spectrometer memory chip is available for some solid programmed algorithms that can improve the performance, such as wavelength calibration coefficient, linearity coefficient. It transfers spectrum to PC through USB 2.0 or RS232 interface. ATP20002 Spectrometer operates with a single +5VDC supply supplied from USB or duo-pin interface.

Features:

Spectrometer built-in pulsed xenon driver
Spectral region: 200-1000 nm
Spectral resolution: 0.2-5 nm
Optical configuration: crossed Czerny-Turner
Linear low noise CMOS detector with 2048 pixel
Integration times: 0.1ms-256s
Supply voltage: DC 5V (USB Power)
16 bit, 2MHz A/D Converter
Spectrometer Interface: USB2.0 (High speed)
20-pin connector for interfacing to external products

Applications:

Fast and Microscale Spectrophotometer
Environmental Analyzer( water quality and exhaust gas）
Radiance
Spectrum Analyzer
Transmittance measurement
Reflectance measurement
Laser wavelength measurement

DETECTOR
Detector Type	Hamamatsu s11639 Linear COMS
Effective Pixels	2048
Pixels Dimension	14μm×200μm
Sensitivity	1300 V/(lx·s)
Dark Noise	13 RMS @ 13 ˚C
OPTICAL PARAMETER
Detect Range	200-1100 nm
Wavelength Range	350-800nm, 180-410nm, 200-850nm, 300-1100 nm, 200-1050nm, 780-1100nm
Optical Resolution	0.1-3 nm
Signal-To-Noise	>600 : 1
Dynamic Range	8.5 x 107 (system); 2000:1 for a single acquisition
Working Temperature	-10°c to + 50°c
Numberical Aperture	0.11
Working Humidity	< 90%RH
Trigger	YES(IN and OUT)
Cooling Temperature	uncooled
Full Well	NA
Scanning Rate	< 1 kfps
OPTICAL CONFIGURATION
Optical Design	f/4 crossed asymmetrical Czerny-Turner
Focal Distance	40 mm for incidence / 60 mm for output
Incident Slit	50 μm (5, 10, 25, 100, 150, 200 um are optional)
Incident Interface	SMA905 connector
ELECTRICAL PARAMETER
A/D Conversion Resolution	16 bit
Integration Time	0.1 ms - 256 s
Interfaces	USB 2.0
Supply Voltage	DC4.5 to 5.5 V (type @5V)
Operating Current	170mA@Typ.
Storage Temperature	-30°C to +70°C
Operating Temperature	-25-50 °C
PHYSICAL PARAMETERS
Dimension	102×72×36.3 mm^3
Weight	0.38kg
Sealing	Anti-sweat
