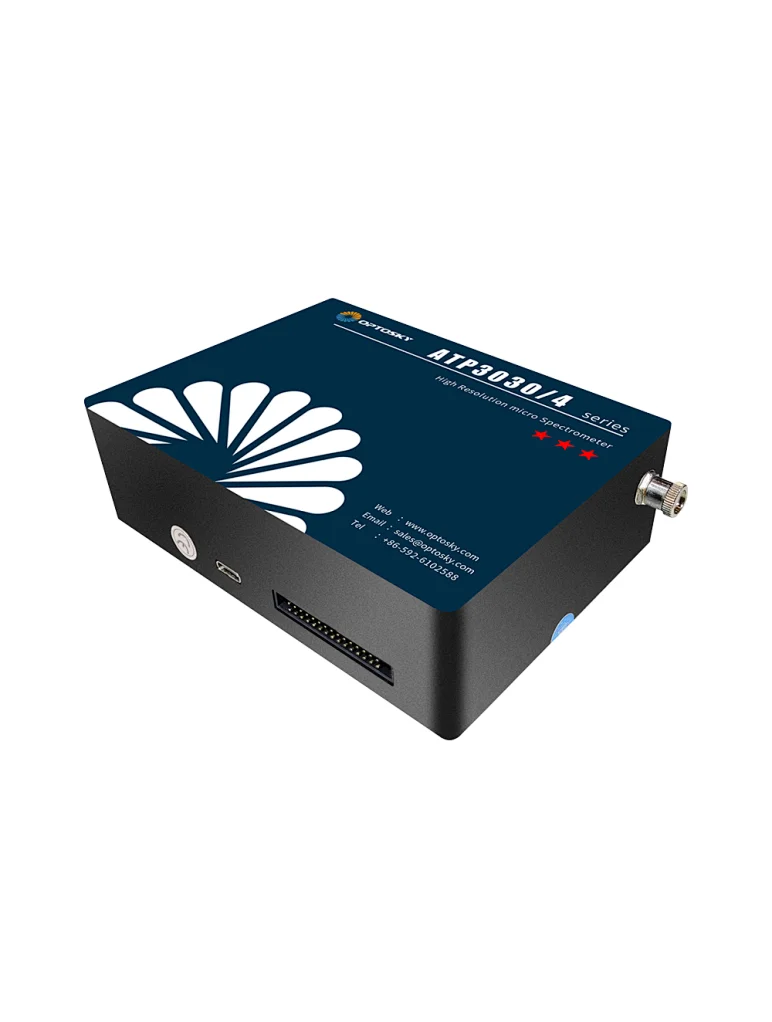

UV-enhance High resolution Spectrometer

Model NO. ATP3030

Delivery FOB

minimum order 1 unit

Country of Origin Made in China

Quantity

Description:

• ATP3030 is UV-enhanced designED with extra high resolution in the region of UV. ATP 3030 designed M-shape optical bench with super resolution and stray light
with a resolution of 2048 pixels.

•  ATP3030 is a ultra-high resolution micro spectrometer developed by Optosky. The highest resolution can reach 0.1nm, which is suitable for all kinds of
  high-resolution applications. At the same time, it has the characteristics of high reliability, ultra-high speed, low cost, high cost performance and so on.
  It can be used in various environmental applications such as online testing.

• ATP3030 is perfect for fast detection attribute to its high A/D converter frequency and the high speed data transmission. In ATP3030 memory chip, some
algorithms to improve the performance are programed solidly, such as wavelength calibration coefficients, linearity coefficients. ATP3030 operates with a
single +5V DC supply supplied from USB or UART.

• ATP3030 has free SDK for customers self-developed, Optosky support C++, C#, Labview and Linux system SDK, which is very convenient for OEM customers
to design solutions.

Features:

Resolution: 0.1-0.4 nm
Detector pixels: 2048
High sensitivity: 1300V（lx.s）
Response range: UV-VIS
Maximum readout speed: 10MHz max
Optical path: crossed C-T
Integration time: 1ms-65535ms
Power supply: USB port
Light input connector: SMA905 or free space
Data output connector: USB2.0 (High speed) or UART

Applications:

Small volume, fast spectrophotometer
Spectral analysis/Iradiance spectrophotometer analysis
Transmission, absorbance measurement
Reflectance detection
Ellipsometer
Laser wavelength measurement
UV and VIS measurement

DETECTOR
Detector Type	Linear CMOS
Effective Pixels	2048 pixels
Pixels Dimension	14X200 µm
Detector Model	Hamamatsu S11639
Sensitivity	1300(lx.s)
FIELD SPECTRORADIOMETER
SNR	>1000:1
OPTICAL PARAMETER
Wavelength Range	180-1100nm, the max.spectral interval 800nm
Optical Resolution	0.1-0.4nm（decide on slit and spectral range）
Dynamic Range	8.5×10^7(system); 2000:1 for a single acquisition
Confocal Distance	75 mm
Numberical Aperture	0.06
Working Humidity	< 90%NC
Trigger	YES/IN and OUT
Cooling Temperature	uncooled
Full Well	NA
Scanning Rate	< 1 kfps
OPTICAL CONFIGURATION
Optical Design	M-shape C-T (like Avantes or RGB Photonics)
Incident Slit	5,10,25,50,100,150,200 μm (optional), available in custom width)
Incident Interface	SMA905 connector or free space
ELECTRICAL PARAMETER
Integration Time	1 ms - 80 s
Power Supply	DC 5V±10%
Operating Current	<350 mA（uncooled）, <3.0A（cooled）
Storage Temperature	-30°c to + 70 °c
Operating Temperature	-10°c to + 50°c
PHYSICAL PARAMETERS
Dimension	124×90×37mm^3
Weight	0.553kg
Sealing	Anti-sweat
