Uncooled Ultra-high Resolution Spectrometer

Uncooled Ultra-high Resolution Spectrometer
ATP3330
FOB
1 unit
1unit / Month
China
30Day
Quantity


Description:

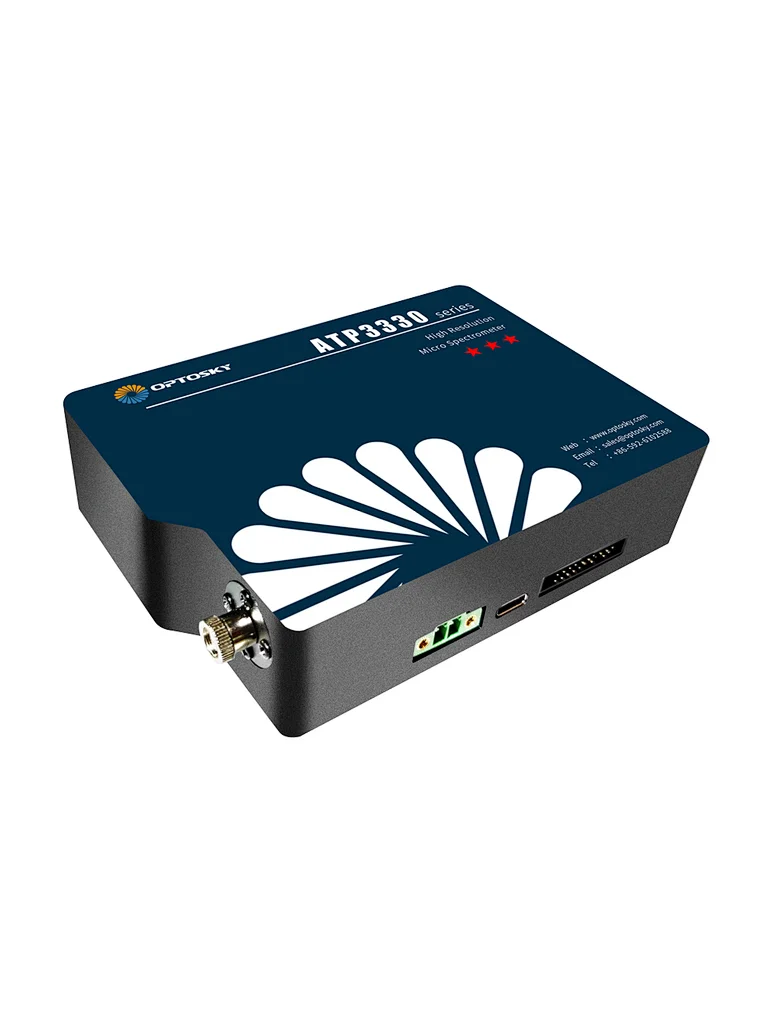

ATP3330 is newly designed ultra thin, uncooled, ultra high resolution miniature Spectrometers developed by Optosky. ATP3330 is M-type optical path structures, which have extraordinary ultra-high resolution. Uncooled 2048pixels at the same time, it uses the linear array detector, reached the acme of the ultra high resolution, high resolution can reach <0.04 nm, suitable for all kinds of applications, high resolution and high reliability, ultra-high speed, low cost, high cost performance and other characteristics, can adapt to the online test USES a variety of environments such as micro spectrometer.
ATP3330 Spectrometer is uncooled, improves the dynamic range and signal-to-noise ratio, and improves the environmental adaptability of the Spectrometer.
ATP3330 spectrometer can receive SMA905 fiber input light or free space light, and output the spectral data obtained through USB2.0 or UART port.
ATP3330 Spectrometer can receive SMA905 fiber input light or free space light, and output the spectral data obtained through USB2.0 or UART port.


Feature:

  • M-shape, high resolution;
  • Wavelength range: 200-1100 nm;
  • Resolution: 0.04 ~ 3 nm;
  • Optical path: M-shape C-T;
  • Detector:  2048/4096 pixel;
  • Integration time: 0.1ms ~ 256s;
  • Power supply: DC 5V power supply;
  • ADC:16 bit;
  • Output:USB Type-C;
  • 20-pin expansion interface;


Application:

  • LIBS, Plasma luminescence detection;
  • Raman detection;
  • Wavelength monitoring, laser, LED and other luminous bodies
  • Water quality analyzer
  • LED sorting machine, color detection;
  • Spectral analysis, radiation spectroscopic analysis, spectrophotometric analysis;
  • Reflection and transmission spectrum detection
