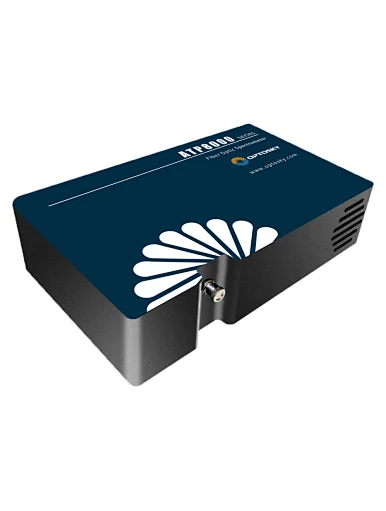

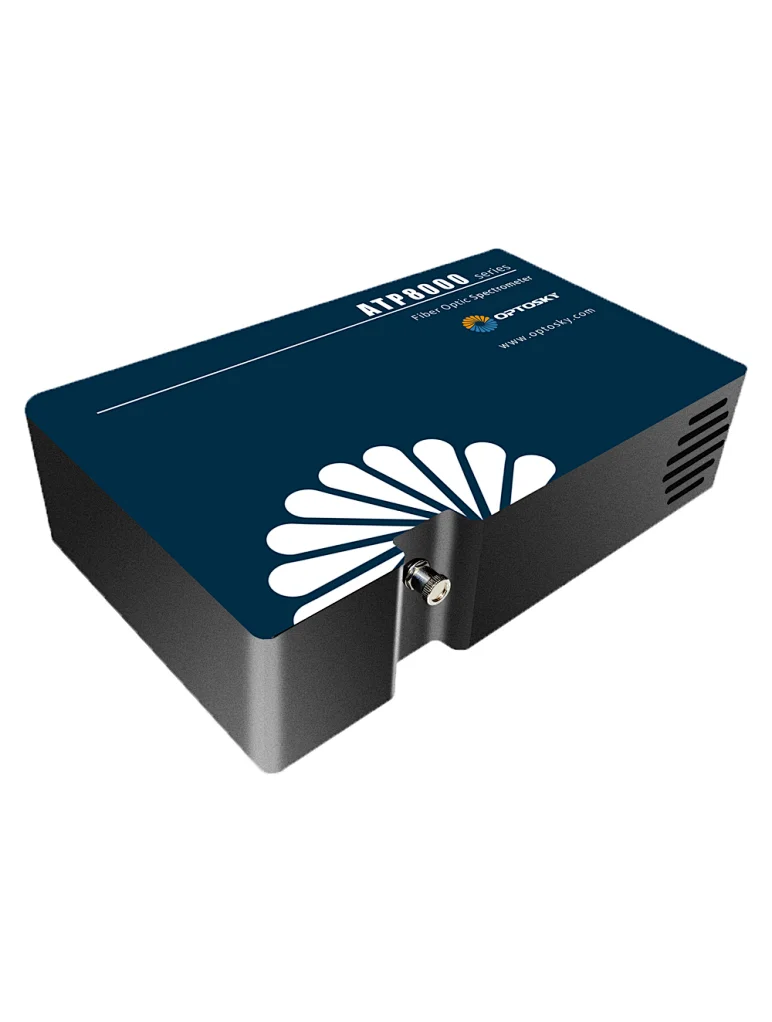

Cooled NIR Spectrometer
ATP8000
The ATP8000 series SWIR fiber optic spectrometers, developed by Optosky, operate in the near-infrared range with a maximum spectral coverage of 900-2500 nm (customizable).
Delivery
FOB
minimum order
1 unit
Country of Origin
Made in China
Quantity
Description:
The ATP8000 series SWIR fiber optic spectrometers, developed by Optosky, operate in the near-infrared range with a maximum spectral coverage of 900-2500 nm (customizable). Featuring a 512-pixel thermoelectrically cooled (TEC) InGaAs linear array detector, the CCD is maintained at a user-defined constant temperature (down to -30°C), significantly reducing sensor noise and achieving a signal-to-noise ratio (SNR) 2× higher than competing products. This design ensures measurement reliability unaffected by ambient temperature fluctuations.
The ATP8000 integrates an ultra-low noise CCD signal correlated double sampling (CDS) circuit with <5 counts quantization noise (industry-leading). It supports SMA905 fiber or free-space optical input, outputs spectral data via USB 2.0/UART, and operates on a single +5V DC supply for seamless integration.
Features:
- Detector: 512/1024-pixel InGaAs array
- Spectral range ：900-2500 nm（customizable sub-ranges）
- Cooling options: -15℃ (standard) / -30℃ (T3 series)
- Noise performance: Ultra-low noise correlated double sampling(CDS) circuit
- Resolution: Slit-dependent
- Integration time： 1 ms - 65 s
- CCD parameters：256/512×1 pixel ，50/25×500 um
- Power supply：5V DC±5%@<3A；
- Power Interfac: 2-pin connector with securing screws；
- ADC： 18-bit (16-bit effective output) @ 500 kHz；
- Optical Input Interfaces: SMA905 fiber optic or free-space；
- Data output：USB2.0 & UART；
- 20-pin expansion port
Application:
- Food sorting；
- Wastewater testing；
- Water, protein, fat, fiber detection of crops；
- Paper sorting；
- On-line monitoring of traditional medicine production；
- Solar panel testing；
