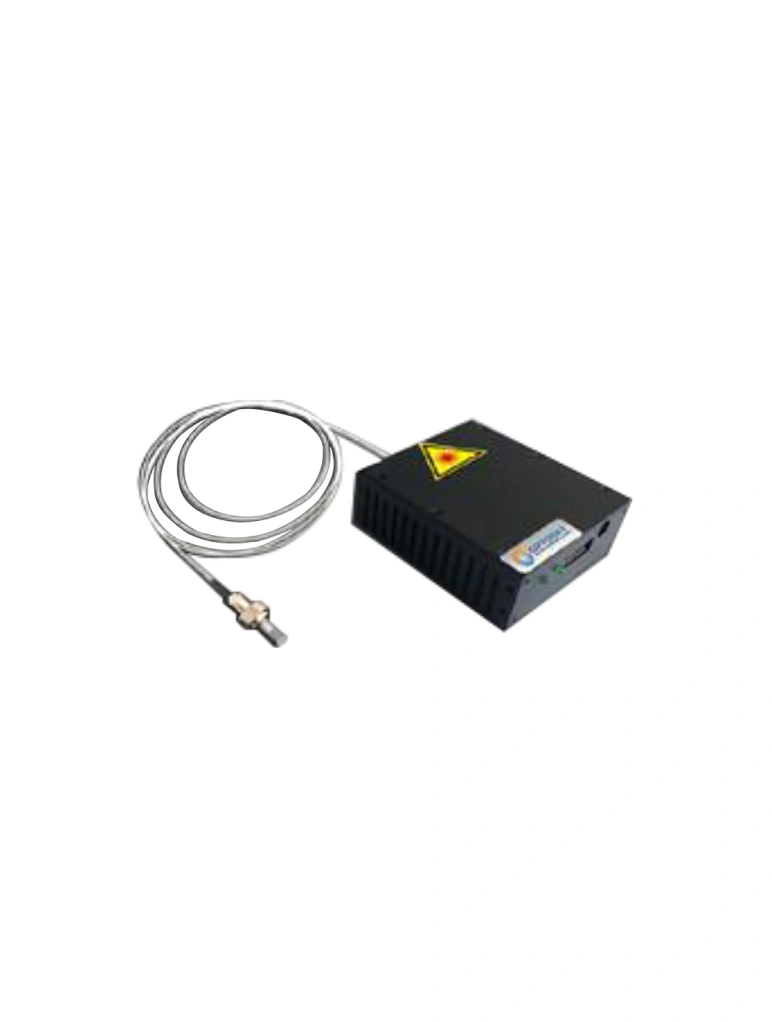

633nm Narrow-band Laser

633nm Narrow-band Laser

Model NO. ATR20202-633

Delivery FOB

minimum order 1 unit

Country of Origin Made in China

Quantity

Contact Now add to cart

Description:

ATR20202-633 narrow line laser is characteristic by its high reliability and ultra-narrow line-width. ATR20202-633 operates with a single 5V power supply and can output 300 mW laser power. When ATR20202-633 is used in Raman spectrometer, it will help to obtain high spectral stability and high resolution. It can be controlled through the TTL interface by the offered pin-out definition and the communication protocol. The output laser power can be changed continuously by changing the LD working current with the commands.

 Laser Parameter：

Ith (A)	Max Power (mW)	Max Iop(A)	%Power 0.04 NA (MIN 6%)	λc(nm)	FWHM(nm)	SMSR(dB)TYP.
0.3	500	0.98	11	633±0.5	0.1	>40

Features:

• Max output power: 500 mW
• Center wavelength: 633±0.5 nm,1064±0.5 nm,830±0.5 nm
• Line width (FWHM): < 0.1 nm
• Fiber: 105/125μm, 0.22NA, FC/PC
• Interface: UART
• Power supply: +5V/DC

Advantage:

• Narrow line
• High stability
• Low power consumption
• High reliability
• Applications:
• Raman System
• Biomedical
• Sensing

Optical Parameters	Specs			Conditions
	Min	Typ	Max
Wavelength center	531.5	532 nm	532.5
Line-width		0.1 nm	0.12 nm	FWHM
Output Power			300 mW
Power stability in 2h		3%	5%	RMSE
Stability time		5 s	7s	Power stability while open laser
SMSR		>40 dB
Optical fiber	105/125um multimode fiber 0.22NA			Fiber coupled
Connector	FC/PC			Fiber coupled
Electrical Parameters
LD working current	300mA	700mA	1000mA
TEC (˚C) (±5)		25 ˚C
Power Supply	4.75 V	5 V	5.25 V
Current (Laser on)		0.75 A	2 .5 A	TEC on
Current (Laser off)		0.3 A	1.3 A	TEC on
