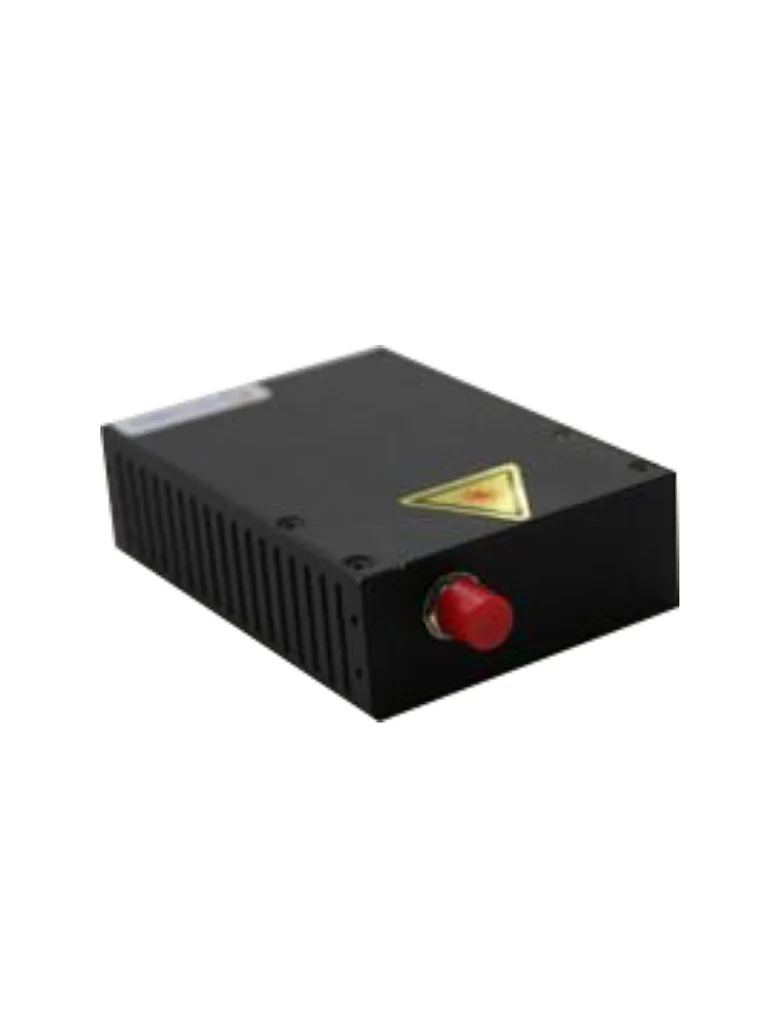

Laser with embedded fiber

ATR20203

Delivery

EXW

minimum order

1 unit

Country of Origin

Made in China

Quantity

Contact Now

Description:

633nm,830nm,1064nm narrowband laser features embedded fiber can protect fiber well from breaking, high reliability, and narrow band width. ATR20203 operates at a single 5V power supply, and outputs a 600 mW laser power. When laser works for Raman spectrometer, it's used to obtain high spectral stability and high resolution as a result. Being controlled through the TTL interface of pin-out and the communication protocol. Laser output power can be changed continuously by changing the LD working current with the command.

Part number	Laser wavelength
ATR20203-785	785nm laser
ATR20203-830	830nm laser
ATR20203- 1064	1064nm laser

Features:

No extended fiber, no worry to break off the fiber
Max output power: 600 mW
Center wavelength: 785±0.5 nm
Line width (FWHM): < 0.08 nm
Fiber: 105/125μm, 0.22NA, FC/PC or SMA905
Interface: UART
Power supply: +5V/DC

Advantage:

Narrow line
High stability
Low power consumption
High reliability

Application:

Raman System
Biomedical
Sensing

Optical Parameters	Specs			Conditions
	Min	Typ	Max
Wavelength center	784.5	785 nm	785.5
Line-width	0.04	0.06 nm	0.08 nm	FWHM
Output Power	10 mW		600 mW	Multimode fiber coupled
Power stability in 2h			0.4%	RMSE
Stability time		5 s	7s	Power stability while open laser
SMSR		>40 dB
Optical fiber	105/ 125um multi-mode fiber 0.22NA			Fiber coupled
Connector	FC/PC			Fiber coupled
Electrical Parameters
LD working current	300mA	700mA	1000mA
TEC (˚C) (±5)		25 ˚C
Power Supply	4.75 V	5 V	5.25 V
Current (Laser on)		0.75 A	2 .5 A	TEC on
Current (Laser off)		0.3 A	1.3 A	TEC on
