633nm Narrow band Laser

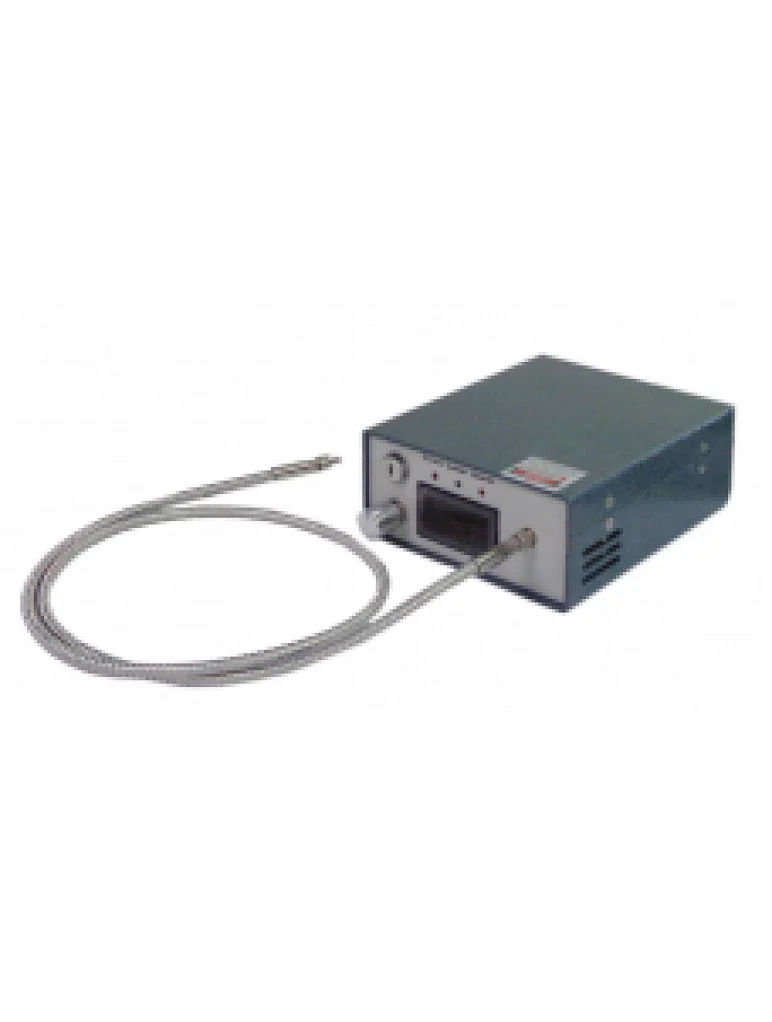

633nm Narrow band Laser

Model NO. ATR20633

Delivery FOB

minimum order 1 unit

Country of Origin Made in China

Quantity

Contact Now add to cart

Description:

The 633nm laser is configured for Raman Spectroscopy. With narrow bandwidth, spectral purity, and high stability of wavelength, laser drivers and thermoelectric coolers are integrated into a laser module. It's an ideal choice for industrial and medical application for compact size and powerful functions.

Model	FC-D-633(Spectrum Stabilized for Raman spectroscopy)
Center wavelength	633±0.5nm
Spectral line width	0.1nm(0.06, 0.03 optical)
Operaing mode	CW
Fiber core diameter	100µm, 0.22NA
Fiber connector	SMA905
Output power after fiber	>1, 10...100 mW
Power stability(rms, over 4 hours)	<1%, 2%, 3%
Central wavelength stability(rms, over 2 hours)	<10 pm
Noise of Amplitude(rms, 1~20 MHz)	<1%, (<0.5%, optical)
Humidity	5-95%
Warm-up time(minutes)	<5
Operating Temp	20-30 °C
Power supply	Adaptor(85-264VAC), 5 VDC @ 5 A
TTL modulation	0-100kHz
Rise time	<10µs
Expected lifetime	10000hours
Warranty	1 Year

Datasheet Download:

ATR20633_Datasheet_V2.1.pdf
