Portable Drugs & Chemicals Raman Analyzer

Portable Drugs & Chemicals Raman Analyzer

Model NO. ATR3000DH

Delivery FOB

minimum order 1 unit

Country of Origin China

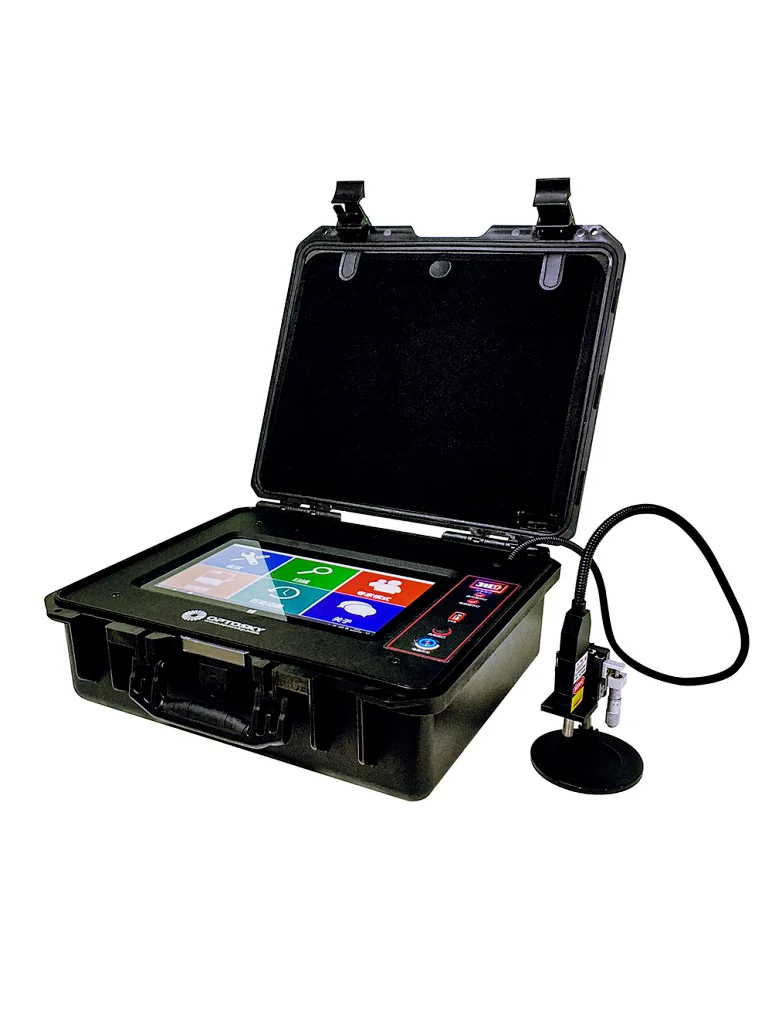

ATR3000DH portable Ram Analyzer has been newly launched to detect unknown drugs, explosives & chemicals ID in a fast & accurate way.

Quantity

Contact Now add to cart

Description:

    ATR3000DH portable Ram Analyzer has been newly launched to detect unknown drugs, explosives & chemicals ID in a fast & accurate way. Compact Raman is durable to detect accurate result in just few seconds. It fits to various safety and crime scene personnel, including law enforcement personnel, hazardous materials technicians, crime scene investigators, and non-contact scan samples in the field.

Features:

• WIFI connect;
• High-definition Camera;
• GPS;
• Linear CCD Sensor;
• Super Reliability;
• Intelligent & Visual Operation Software, Specialist and Non-Specialist Easy-to-Operate;
• 11.6 Inch Capacitive Touch-screen, Super operability;
• Android 4.4 Operation System;
• Built-in Li-battery span life >5hrs;
• Lightweight（7.5kg）,easy-to-take;
• IP-67 Housing;

Applications:

• Police
• Customs
• Border
• Metro
• Airport
• Big Event Scene

ATR3000DH
Interface	USB 2.0 or WIFI
Operative System	Android 6.0
Screen	11.6-inch capacitive touch screen, multi-touch control;
Screen Resolution	1920X1080
Battery life span	>5 h
Integration Time	4ms - 120s
Power Voltage	DC 19V(+/-5%)
Operating Temp.	-10~40 ℃
Operating Humidity	< 95%
Dimension(L*W*H)	40×30×18 cm
Weight	7.5 Kg
Reliability
Spectral Stability	σ/μ < 0.5% (COT 8 hours)
Temp. Stability	Spectral Shift ≤ 1 cm-1 (10-40 ℃)
Spectral Intensity shift（in 5 ~ 40 ℃）	<±5%
Optical Prameters
Spectral Range (cm-1)	200-2600
Resolution (cm-1)	10
SNR	>3000:1
Detector
Type	High-sensitivity 512pixels InGaAs CCD
Cooled down to	-20 ℃
Detect range	900-1700 nm
Effective pixels	512
Dynamic Range	50000：1
Pixel size	25 ×500 μm
Exitation Laser
Central Wavelength	1064 nm (+/-0.5nm)
Semi-peak width	0.1 nm
Max. Output	≥500 mW
Power Stability	σ/μ <±0.2%
Raman Probe
Operating Distance	6 mm
Blocking of filters	OD>8
Numerical aperture	0.3
Aperture	7mm

Datasheet Download:

ATR3000DH_Datasheet_V5.1.pdf
