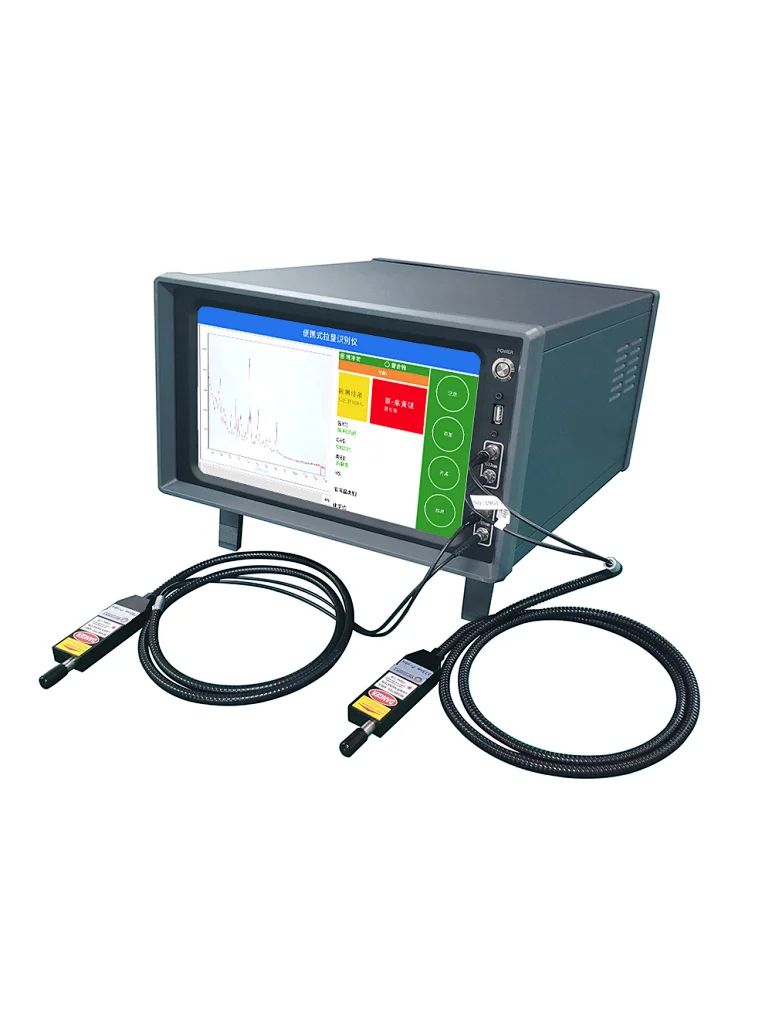

Dual-band Portable Raman Spectrometer

Dual-band Portable Raman Spectrometer

Model NO. ATR3200

Delivery FOB

minimum order 1 unit

Country of Origin China

Quantity

Contact Now add to cart

Description：
In many cases in lab is uncertain of wavelengths better for their application, ATR3200 dual-band Raman spectrometer integrate two wavelengths laser sources to detect small sample. It requires no contact, no treatment to make an undestructive detect. This instrument has advantages of high performance-to-ratio, smart size can detect liquids, including fabrics, biology, alcoholics, crystals etc. ATR3200 built-in 532nm, 633nm, 785nm Raman spectrometers, all of them employs cooled high sensitivity Raman signal enhanced CCD, high efficient Raman probe with a laser power up to 600mW narrow linewidth lasers, combined with high reliable optical design, circuit design, structure design, detect result is very stable, and super SNR. ATR3200 built in 1064 Raman, employs ultra high cooled semi-conductor lasers, 2nd class cooled ultra high sensitivity InGaAs linear array CCD. As a result, with high performance, high sensitivity can fit to scientific research, medical instrument industry

ATR3200 Series Models Selection
Selection	Model	Description
Wavelength/nm	ATR3200-532	Single Wavelength 532nm
	ATR3200-633	Single Wavelength 633nm
	ATR3200-785	Single Wavelength 785nm
	ATR32001064	Single Wavelength 1064nm
	ATR3200-wavelength 1+ wavelength 2	any two wavelengths of 266nm,325nm，405nm，532nm，633nm，638nm，785nm，1064nm
Other wavelengths can be customized

Features：

●Dual bands：532, 633, 785, 1064nm (optional dual wavelengths combination)；

● High sensitivity, SNR>3000:1

●High Stability

●Hamamatscu CCD, excellent performance；

●High performance spectrometer

●USB2.0 connect to PC

Application：

●Scientific Research

● Biology Science

●Forensic Science

●Material Science

●Medical Immunology

●Agriculture and food identification

●Water Pollution analysis

●Gemstones and inorganic mineral

●Environment Science

Types	ATR3200-532nm	ATR3200-633nm	ATR3200-785nm	ATR3200-830nm	ATR3200-1064nm
Interface	USB 2.0	USB 2.0	USB 2.0	USB 2.0	USB 2.0
Integration Time	1ms - 120s	1ms -64s	4ms - 120s	4ms - 120s	4ms - 120s
Power Voltage	AC 220V(+/-5%)	AC 220V(+/-5%)	AC 220V(+/-5%)	AC 220V(+/-5%)	AC 220V(+/-5%)
Working Temperature	-10~40 ℃	-10~40 ℃	-10~40 ℃	-25~50 ℃	-10~40 ℃
Working Humidity	< 95%	< 95%	< 95%	< 95%	< 95%
Size (L*W*H)（mm）	800*500*300	800*500*300	800*500*300	800*500*300	800*500*300
Channels No.	100	100	100	100	100
Rail Accuracy	0.625μm	0.625μm	0.625μm	0.625μm	0.625μm
Weight	27 Kg	26 Kg	25Kg	25 Kg	27Kg
Reliability
Spectral Stability	σ/μ < 0.5%   (COT 8 hours)	σ/μ < 0.5%   (COT 8 hours)	σ/μ < 0.5%   (COT 8 hours)	σ/μ < 0.5%   (COT 8 hours)	σ/μ < 0.5%   (COT 8 hours)
Temp Stability	shift ≤ 1 cm-1 (10-40 ℃)	shift ≤ 1 cm-1 (10-40 ℃)	shift ≤ 1 cm-1 (10-40 ℃)	Shift ≤ 1 cm-1 (10-40 ℃)	Shift  ≤ 1 cm-1 (10-40 ℃)
Spectral intensity change（in 5 ~ 40 ℃）	<±5%	<±5%	<±5%	<±5%	<±5%
SNR	>1500:1	>3000:1	>3000:1	>3000:1	>3000:1
Models	High sensitivity Cooled CCD	High sensitivity Cooled CCD	High sensitivity Cooled CCD	High sensitivity Cooled CCD, Raman signal enhanced back-thinned CCD	High sensitivity 512 pixels InGaAs detector
Detector cooled Temp	-10 ℃	-10 ℃	-10 ℃	-10 ℃	-20 ℃
Detector Range	200-1100 nm	200-1100 nm	200-1100 nm	200-1180 nm	900-1700 nm
Dynamic Range	50000：1	10000：1	50000：1	30000：1	80000：1
Central Wavelengths	532nm±0.5nm	633nm±0.5nm	785nm±0.5nm	830 nm±0.5nm	1064±0.5nm
PWHM	≤ 0.1 nm	≤ 0.1 nm	0.08 nm	0.1 nm	0.1 nm
Max. Power	≥100 mW	≥100 mW	≥500 mW	≥500 mW	≥500 mW
Power Stability	σ/μ <±0.5%	σ/μ <±0.5%	σ/μ <±0.2%	σ/μ <±0.2%	σ/μ <±0.2%
Raman Probe
Working Distance	6 mm	6 mm	6 mm	6 mm	6 mm
OD	OD>8	OD>8	OD>8	OD>8	OD>8
NA	0.3	0.3	0.3	0.3	0.3
Aperture	7mm	7mm	7mm	7mm	7mm
Operation System	Android
Interface	WIFI, 4G（optional）

Datasheet Download:

ATR3200_Datasheet_V5.1.pdf
