Raman Imaging Microscope

ATR8500

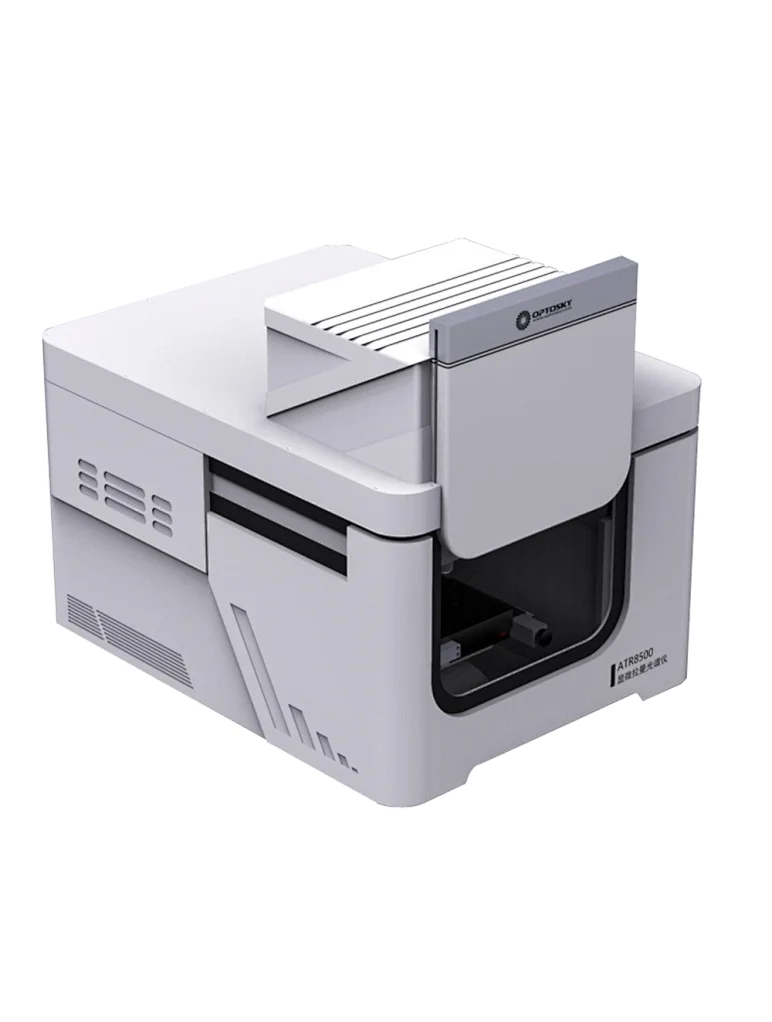

ATR8500 features build-in 3 wavelengths in the Raman imaging microscope. It also upgraded for super signal to noise >6000:1 and unique seal door design base on ATR8300 mini Raman microscope. With large and dark sample compartment design solve customer concern of experiment day and night at the shared laboratory.

Delivery

EXWORK

minimum order

Country of Origin

Made in China

Quantity

Contact Now

Description:

The ATR8500 Confocal Raman Microsope combines the advantages of microscopes and Raman spectrometers. The Raman microscope detection platform is a visual and precise positioning Raman detection platform, which allows the user to detect the Raman signals of different surface states on the sample, and can be displayed simultaneously on the computer, which is greatly Facilitates Raman micro-area detection.

ATR8500 raman instrument is equipped with an objective lens specially designed for the Raman system, which makes the laser spot close to the diffraction limit. The focus information is accurately and intuitively displayed on the computer through a 5-megapixel camera, which improves the quality of the Raman spectrum.

ATR8500 adopts a unique moving part without optical path switching (patented), which perfectly solves the loss of optical path for camera imaging, realizes the separation of camera imaging and Raman signal collection, and obtains the best signal strength.

At the same time, ATR8500 uses high-performance Raman specially optimized for micro-Raman systems. It is industry-leading in terms of sensitivity, SNR, stability, etc., providing a strong guarantee for Raman research.

Features:

Fully automated Raman imaging, auto-focus, auto-scan；
Large area imaging (50X50mm), Automated imaging spicing technology；
Maximum three wavelengths lasers；
Depth of Field (DOF) camera optional
High sensitivity ，SNR>6000:1
Integration time no less than 1.3 hours
True-Focus to ensure accurate Raman image
High spatial resolution
Exclusive software function to switch optical path
Fast positioning focus
High quality objectives, spot size up to μm level
5-mega camera for clear image
USB 2.0 connect to PC

Application:

Nanoparticles And New Materials
Universities And Research Institutes
Biotechnology : Biological Sciences
Biopharma : Forensic Medicine Identification
Material Science
Chemistry : Medical Immunoassay
Agriculture And Food Identification : Food & Beverage
Water Pollution Analysis
Energy: Gem And Inorganic Mineral Identification
Environment: Environmental Science

ATR8500 Order Guide:

ATR8500 Series Models Selection
Selection	Model	Description
Mapping Mode	ATR8500-BS	Manual focus
	ATR8500-AF	Auto focus
	ATR8500-MP	Auto-focus & Mapping
Detector	ATR8500-XX-LT	Deep cooled to -30℃, ultra-long integration time (up to 1.3h)
	ATR8500-XX-FI	Peak Quantum Efficiency:50%@730nm Deep-Cooled to -40℃ Deep-Cooled to -70℃
	ATR8500-XX-BI	Peak Quantum Efficiency:95%@800nm Deep-Cooled to -40℃ Deep-Cooled to -70℃
	ATR8500-XX-SCM	cooled SCMOS detector
Focus Length/nm	ATR8500-XX-XX -FL210	Focal length 210mm
	ATR8500-XX-XX -FL350	Focal length 350mm
	ATR8500-XX-XX-FL510	Focal length 510mm
	ATR880-XX-XX0-FL810	Focal length 810mm
Wavelength/nm	ATR8500-XX-XX-XX-266	Single Wavelength 266nm
	ATR8500-XX-XX-XX-325	Single Wavelength 325nm
	ATR8500-XX-XX-XX-405	Single Wavelength 405nm
	ATR8500-XX-XX-XX-532	Single Wavelength 532nm
	ATR8500-XX-XX-XX-633/638	Single Wavelength 633/638nm
	ATR8500-785	Single Wavelength 785nm
	ATR8500-XX-XX-XX-1064	Single Wavelength 1064nm
	ATR8500-XX-XX-XX-wavelength 1+ wavelength 2	any two wavelengths of 266nm,325nm，405nm，532nm，633nm，638nm，785nm，1064nm
	ATR8500-XX-XX-XX-wavelength 1+ wavelength 2+wavelength3	any three wavelengths of 266nm,325nm，405nm，532nm，633nm，638nm，785nm，1064nm
	ATR8500-XX-XX-XX-wavelength 1+ wavelength 2+wavelength 3+wavelength 4	any four wavelengths of 266nm,325nm，405nm，532nm，633nm，638nm，785nm，1064nm
ATR8500 series can be customized, and select specific Mapping Mode, Detector model, Focus Length, and WaveLengths as above e.g.: ATR8500-AF-LT-FL350-532+633：Autofocus, long integration time, focal length of 350mm, dual wavelengths: 532nm and 633nm

ATR8500 Performance parameters
Microscope Camera System	5-mega pixels
Focus Type	Conjugate Focus
Min Spot Size	25μm
Laser stability	σ/μ <±0.2%
Interface	USB2.0
X,Y-axis Electronic controlled two-dimension platform
Move range	50 X 50 mm
Move resolution	0.1 μm
Positioning	1 μm
Accuracy	1 μm
Scan Speed	20 mm/s
Z-axis（Auto-Focus）
Focus Accuracy	≤ ±0.2 μm
Max range	20 mm
Focus speed	Less than 10 s
