Integrating Spheres
ATST150
EXW
1 set
Made in China
15Day
Integrating spheres are well-suited for measurement of opaque or highly directional samples.
Quantity
Optosky’s integrating sphere is a cavity sphere, also known as the photometric sphere,Ulbricht sphere, etc.Its interior covered white highly diffuse Reflectance material. The light entering integrating sphere is diffusely reflected to form a uniform illumination, eliminate the influence of uneven beam.

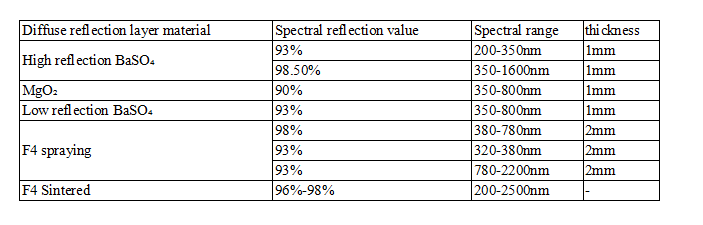

It has a wide range of applicability, accessories for spectrometer, optical fiber, light source and various optical measuring equipment.Our sphere afford NIST traceable characterization of all types of light .The diffuse reflecting surface of the inner wall of it is made of PTFE, BaSO4,MGO2.The dominant wavelength range is between 200-2500nm, and different sizes, ports and coatings can be customized.
Description:

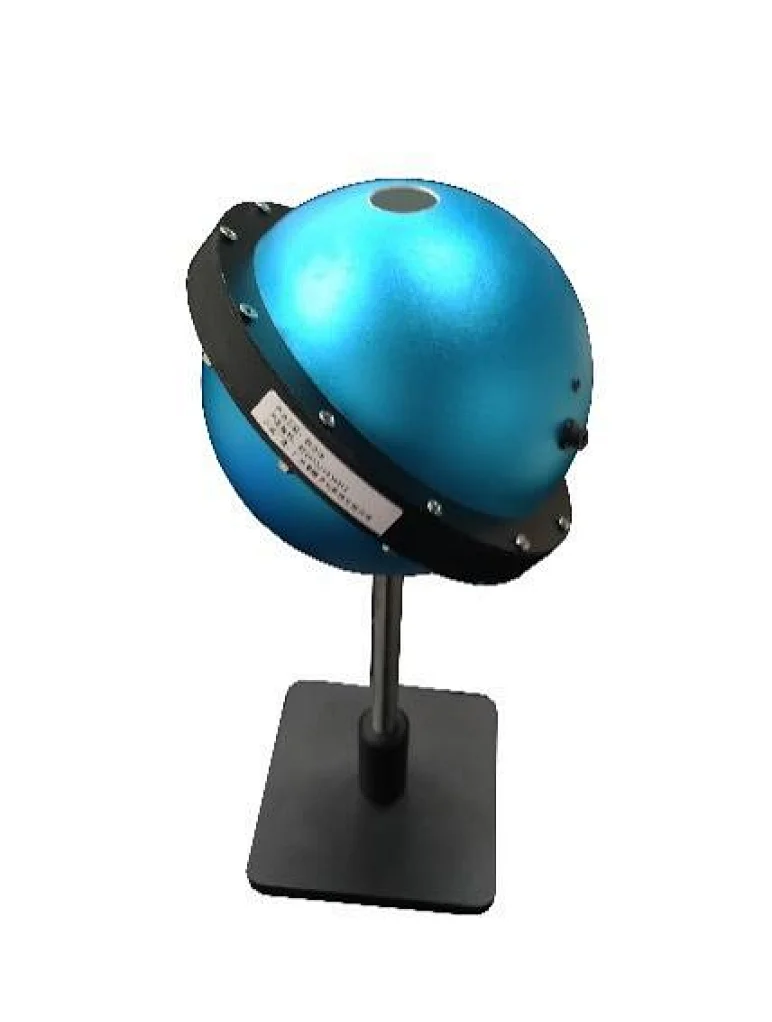

The universal integrating sphere ATST150 launched by Optosky is suitable for general-purpose spectral systems, and has high performance-to- price ratio, accurate measurement, compatible with different components to measure laser power, universal light source, spectrum, light transmission, reflectivity, etc.
The universal integrating sphere ATST150 is designed with three port configuration can be customized, and different accessories can be mounted to different applications to meet many demands. It is simple to operate and flexible to use. Customers can customize the size and position of the opening according to specific needs. ATST150 uses high stability, diffuse reflection effect, can test to achieve the best test results.
Feature:
It has a wide range of applicability, accessories for spectrometer, optical fiber, light source and various optical measuring equipment.Our sphere afford NIST traceable characterization of all types of light .The diffuse reflecting surface of the inner wall of it is made of PTFE, BaSO4,MGO2.The dominant wavelength range is between 200-2500nm, and different sizes, ports and coatings can be customized.
Description:
The universal integrating sphere ATST150 launched by Optosky is suitable for general-purpose spectral systems, and has high performance-to- price ratio, accurate measurement, compatible with different components to measure laser power, universal light source, spectrum, light transmission, reflectivity, etc.
The universal integrating sphere ATST150 is designed with three port configuration can be customized, and different accessories can be mounted to different applications to meet many demands. It is simple to operate and flexible to use. Customers can customize the size and position of the opening according to specific needs. ATST150 uses high stability, diffuse reflection effect, can test to achieve the best test results.
Feature:
- Diameter: 90-150mm (optional)
- Coating: 97% Barium sulfate ( Teflon 99% optional)
- Port configuration: three ports; 25.4mm sample port at north pole; 38.1mm detector port at 0° on horizontal equator; and a second 25.4mm excitation input port at 90° on the equator (customized hole size)
- Baffle to screen a centre-mounted sample from the detector port
- Base with post mount & height adjustable post holder
- Centre mounted sample holder assembly with two positions which allows for rotating of the sample in and out of excitation beam for base-line referencing
- Interchangeable sample holders(Customize)

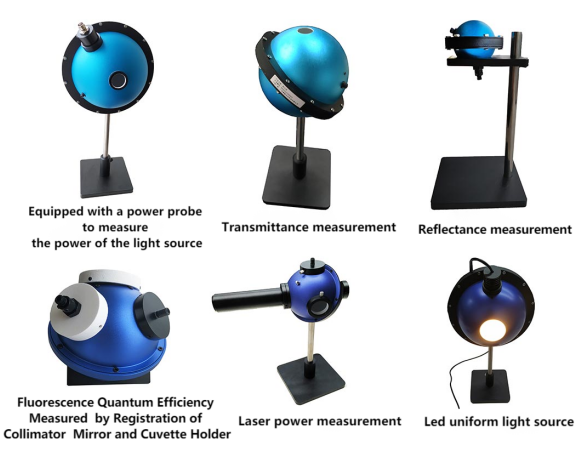

- Uniformity of different light source
- Reflectance & Transmittance measurement
- Laser power measurement
- Fluorescence quantum efficiency spectral measurement
- Scientific research experiments and analysis
- Product detection and identification
- Radiation calibration calibration
- Photo-luminescent quantum yield (PLQY)
- Quantum efficiency of phosphorescent materials
