Cosine Correctors

Cosine Correctors

Model NO. Cosine Correctors

Delivery FOB

minimum order 1 unit

Country of Origin Made in China

Quantity

Contact Now add to cart

Description:

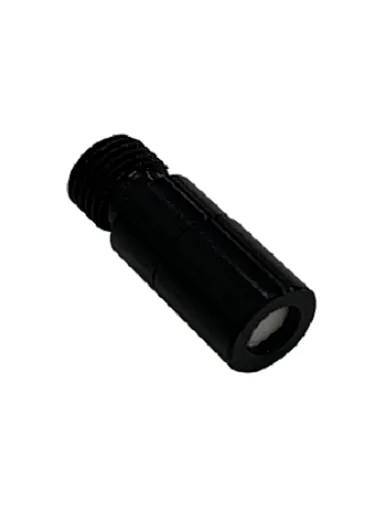

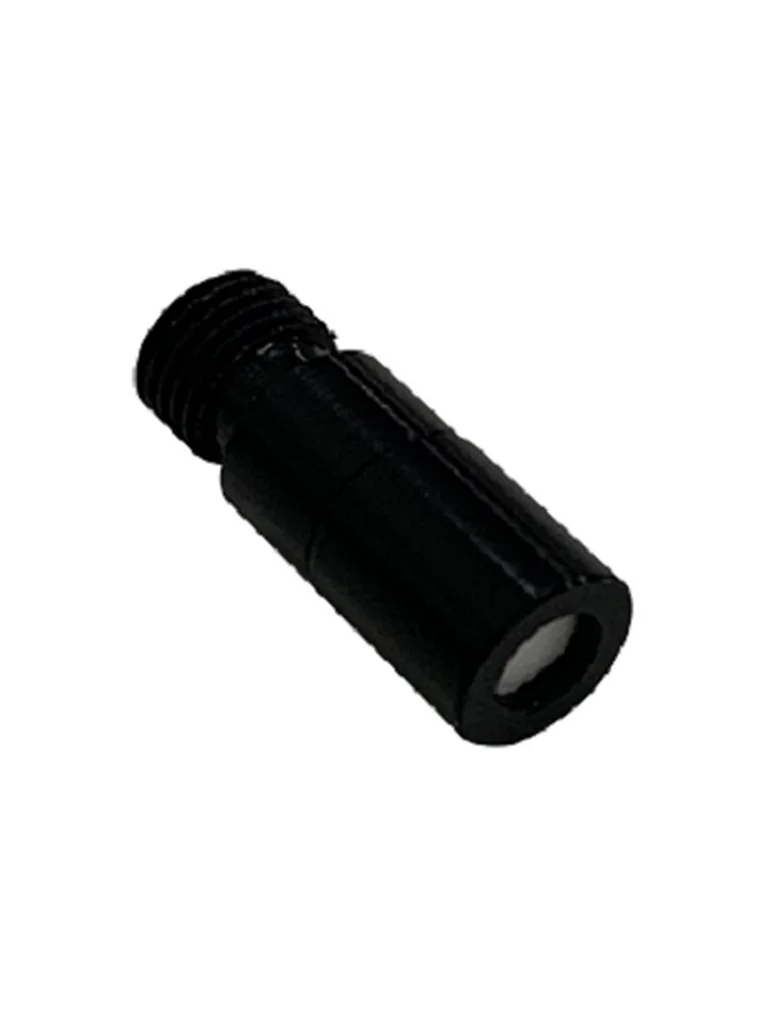

Cosine Correctors are optical diffusers (opaline glass, PTFE or Spectralon) that couple to fibers and spectrometers to collect signal from 180° field of view. Cosine Correctors are specified for setups requiring the redistribution of incident light, such as measuring spectral irradiance of a plane surface in air or other media.
Typical applications include relative and absolute spectral intensity measurements of LEDs, light sources and other radiant sources (including solar). Options are available for connecting to optical fibers or spectrometers.
Feature:

• Wide FOV – collects light from 180° field of view
• Versatile – couples to fibers or directly to spectrometers
• Diffuser material – Spectralon (200-2500 nm)

Optical Parameters
Connects To:	Optical fiber
Optical Diffuser:	Spectralon
Wavelength Range:	200nm - 2.5μm
Diffusers (Diameter):	3900um
Dimensions (OD):	12.7mm
Length (external):	17mm
Field Of View:	180°
Replacement Diffuser:	Yes
