Cuvette Holders

Cuvette Holders

Model NO. Cuvette Holders

Delivery FOB

minimum order 1 unit

Country of Origin Made in China

Quantity

Contact Now add to cart

Description:

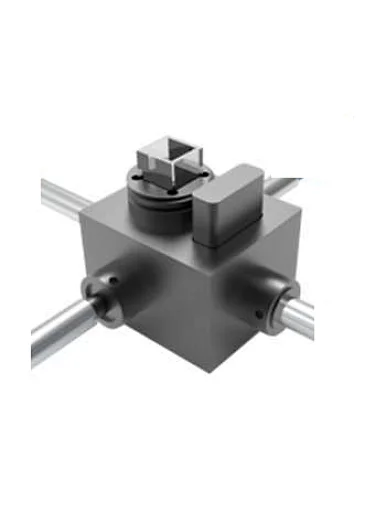

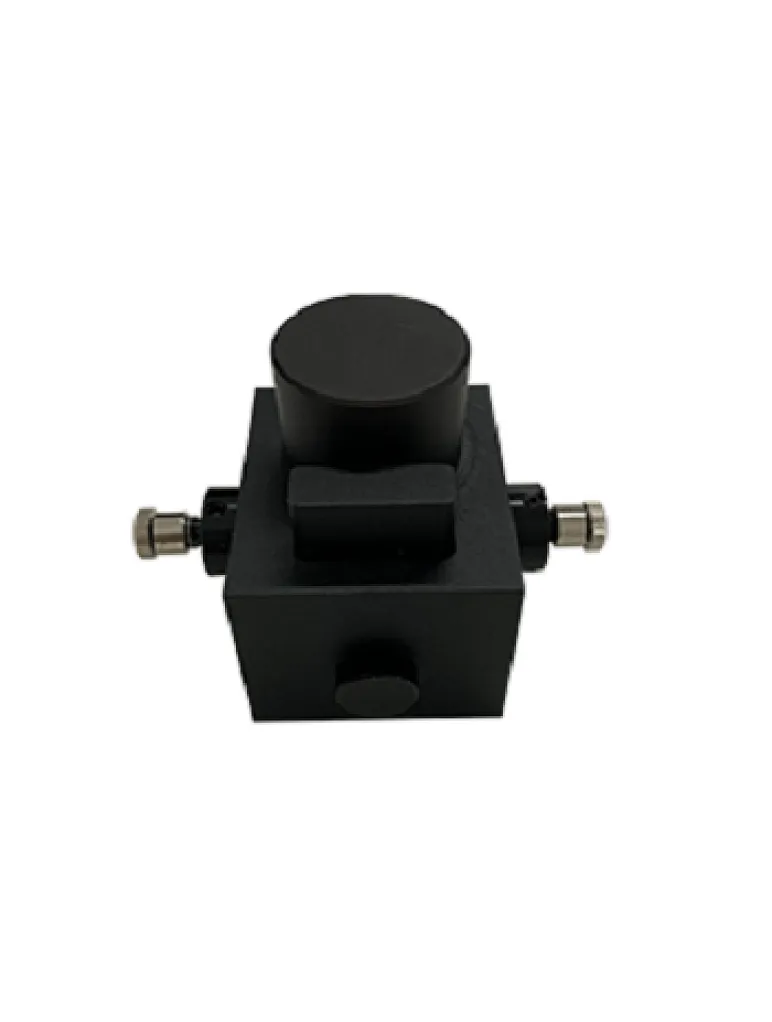

The CUV-UV cuvette holder for 1-cm pathlength cuvettes couples via optical fibers to Optosky spectrometers and light sources to create small-footprint systems for absolute absorbance measurements of aqueous solutions. The CUV-UV cuvette holder is optimized for applications from 200-2000 nm, has a built-in filter slot and features spring-loaded ball plungers for precise cuvette holder positioning. Optional covers are available to block ambient light from the sample chamber.
Feature:

• Absorbance accessory – compact holder for 1 cm pathlength square cuvette holder
• Filter slot – accommodates filters up to ¼-inch thickness
• Temperature control – internal channels accept a constant-temperature water source

Optical Parameters
Collimating Lenses:	Two 74-UV f/2 fused silica lenses (200-2000 nm)
Filter Slot Specification:	Accepts filters up to 6.35 mm (1/4”) thickness
Pathlength:	1cm
Z Dimension Specification:	15mm
Connector:	SMA905
Dimensions:	55 mm x 73 mm x 55 mm
Integrated Light Source:	No
Water Input Fittings for Temperature Regulation:	3.175mm(1/8”) NPT
Weight	230g
