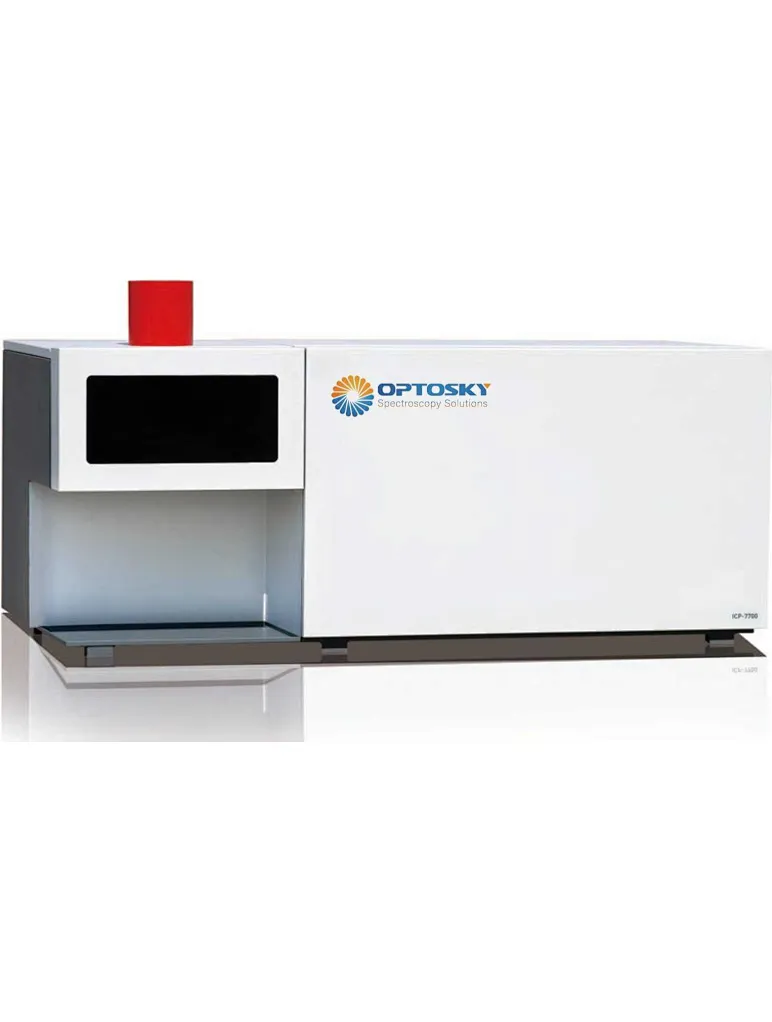

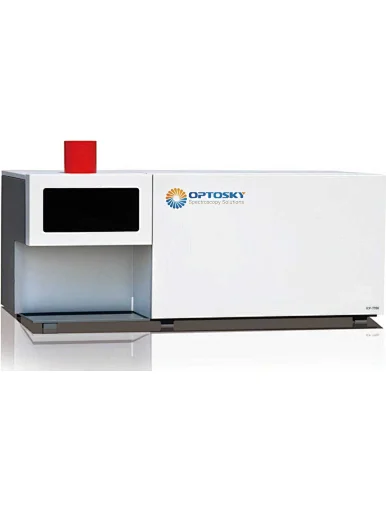

Automatic Inductively Coupled Plasma Emission Spectrometer

Automatic Inductively Coupled Plasma Emission Spectrometer
ICP-7700
ICP-7700 inductively coupled plasma emission spectrometer. The light source system adopts solid-state RF generator and end observation mode, featuring low detection limit, high resolution, stable operation and wide application. It can quickly and accurately detect 70 elements from trace to constant.
Quantity
Description:
ICP-7700 inductively coupled plasma emission spectrometer. The light source system adopts solid-state RF generator and end observation mode, featuring low detection limit, high resolution, stable operation and wide application. It can quickly and accurately detect 70 elements from trace to constant.
ICP-7700 inductively coupled plasma emission spectrometer has small size, light weight, long life, low noise, high coupling efficiency, and power output stability <0.1%, which greatly improves the analysis accuracy.

Features
● Plasma excitation and impedance matching use automatic technologylow reflected power, standing-wave ratio (SWR) is less than 1.25.
● Axial viewing position, longer torch is used to reduce the fluctuation of the tail flame, the cold cone is placed at the tail flame to prevent the tail flame from entering the viewing hole.
● Argon Flows: MFC on nebulizer gas, plasma gas, auxiliary gas. All gas flows under computer control.
●Small volume, light weight, long life, low noise, high coupling efficiency, stability of power output <0.1%, greatly improve the accuracy of analysis.
●One wavelength scan is performed before sample measurement, which can avoid wavelength shift after long-term measurement to affect measurement accuracy
●Upgraded spectrum database, data information up to 50,000.
●Interference spectral line automatic filter function.
● Automatic serial communication.
●Scanning mode: Turbo vortex rod, driven by computer-controlled stepper motor, minimum scan step is 0.0006nm.




Application
Geology, metallurgy, rare earth separation, rare earth magnetic materials, medicine and health, environment, biology, ocean, petroleum, chemical industry, nuclear industry, agriculture, water quality and other scientific fields are widely used.
