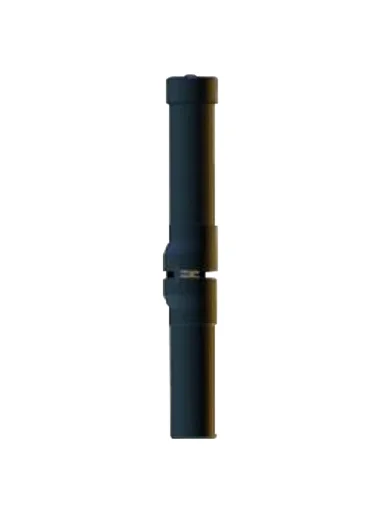

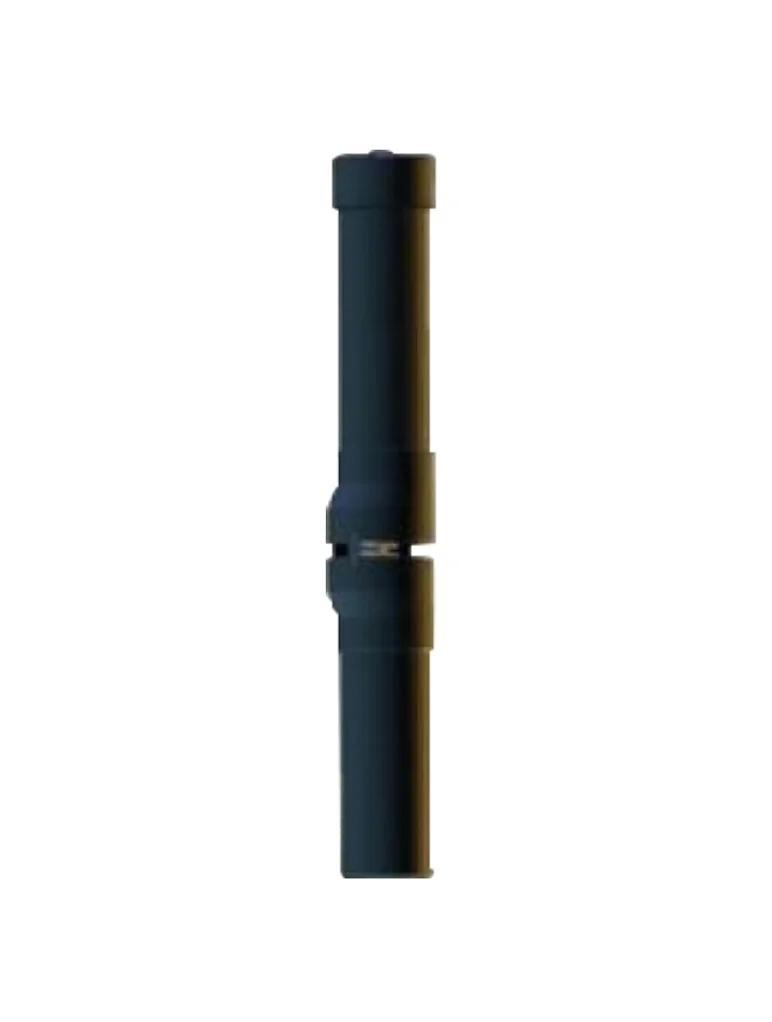

In-situ, Multi-parameter Water Quality Measurement Instrument

Model NO. MOL

Delivery FOB

minimum order 1 unit

Country of Origin Made in China

Online Multi-Parameters measurement, such as Turbidity、COD、BOD、TOC、DOC、NO3-N、NH4-N etc.

Quantity

Description:

Advantage:

Online measurement: less than 10s minimum reading time, real-time warning of abrupt changes in water quality.
In-situ measurement: sampling-free, True real-time and field measurement
Spectral measurement: chemical reagent-free, and prevent second-time pollution measurement from happening
Multi-Parameters measurement: simultaneous measure various critical parameters of water quality, such as turbidity, COD, NO3-N、NH4-N etc.

Automatic cleaning, long-term monitoring, 24/7 online data access, maintenance-free, and reliable water quality monitoring.

Features:

Function and Feature:

Online Multi-Parameters measurement, such as Turbidity、COD、BOD、TOC、DOC、NO3-N、NH4-N etc.

Multi-parameters reading time is less than 10s

Measurement accuracy＞5%, repeat accuracy＞2%

Wired connectivity, RS-485 / Modbus

Wireless remote data transmission

Alert limit values can be customizable configured

Long-term data storage, reviewing historical trends

Specification	Description
Principle	UV-VIS- spectral range: 200nm-650nm
Parameters	Turbidity（TSS）,COD,BOD,TOC,DOC,NO3-N,NH4-N,UV254
Probe size	Diameter 65mm × 532mm + Optical path length
Probe weight	2.1 Kg (weight of cables excluded)
Operating Temp	0 ~ 50 ℃
Storage Temp	-5 ~ 55 ℃
Environmental	IP68
rating	IP68
Input voltage	18 ~ 28 VDC
Power	Maximum power in the measure is 14W, otherwise less than 4W
Interface	RS-485 / Modbus
Cable length	Available length up to 35m
Automatically	Optional
clean	Optional
Optical path	2mm/5mm/10mm/15mm/30mm/50mm/100mm options
length	2mm/5mm/10mm/15mm/30mm/50mm/100mm options
Reading rate	Less than 10s reading time per simultaneous multi-parameters
Measure range	TSS: 0 ~ 2000 mg/L
	COD: 0 ~ 3000 mg/L
	BOD: 0 ~ 2000 mg/L
	TOC: 0 ~ 200 mg/L
	DOC: 0 ~ 150 mg/L
	NO3-N：0 ~ 100 mg/L
	NH4-N：0 ~ 30 mg/L
	UV254：0~ 2500 Abs/m
	(Remarks: Measure range increases by decreasing optical path, other
	Parameters keep unchanged.
Measurement	±5% + 0.5%×FOV
accuracy	±5% + 0.5%×FOV
Repeat accuracy	＞2%
Repeat accuracy	(An average value based on 30 times of measuring repeat water sample)
