Optosky Palm Oil Quality Rapid Testing Solution

author: Peggy

2026-09-10

The Optosky Dedicated Palm Oil Near-Infrared (NIR) Spectrometer is a rapid testing solution tailored specifically for the palm oil industry. It can simultaneously detect key quality indicators such as Free Fatty Acids (FFA), Moisture, and Iodine Value (IV) in just 30 seconds with zero sample pre-treatment. This solution helps palm oil producers achieve real-time, online quality monitoring and rapid grading.

Industry Pain Points

Time-Consuming Traditional Methods: Conventional chemical testing takes up to several hours, making it impossible to meet the real-time monitoring demands of modern production lines.

High Operator Error: Manual titration has a wide margin of error, and results are highly dependent on the experience level of the laboratory personnel.

Complex Pre-treatment: Traditional workflows require tedious sample preparation, specialized technicians, and high labor costs.

Lagging Results & Financial Loss: Delayed testing feedback means sub-standard products cannot be intercepted in time, causing significant economic losses.

High Capex & Complex Maintenance: Testing multiple indicators typically requires multiple devices, leading to high capital investment and complex maintenance routines.

Our Solution

The Optosky Palm Oil NIR Testing Solution features our flagship IR2500 Fourier Transform Near-Infrared (FT-NIR) Spectrometer. Utilizing advanced FT-NIR technology (covering the full 1000–2500 nm spectrum) combined with proprietary, industry-specific palm oil calibration models, it delivers instantaneous, multi-indicator analysis.

30-Second Multi-Indicator Detection: Simultaneously measures FFA, moisture, iodine value, and other critical metrics within 30 seconds.

Zero Sample Pre-treatment: Direct measurement with minimal effort, simplifying the operator's workflow.

Plug-and-Play Calibration: Equipped with built-in, pre-calibrated palm oil models for out-of-the-box accuracy.

Flexible Operational Modes: Supports both online and offline testing modes to seamlessly adapt to diverse production environments.

Data Traceability & Integration: Automatically saves data for full traceability and supports seamless integration with factory MES systems.

Technical Parameters

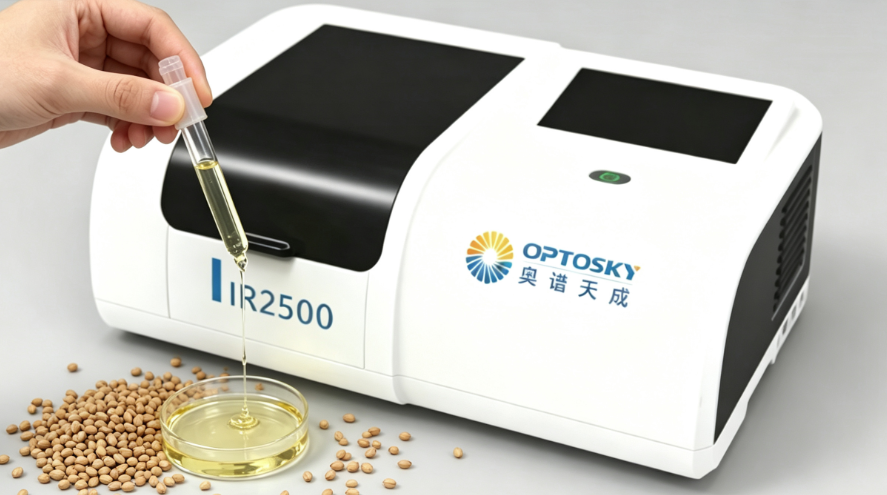

Recommended Model: IR2500 Fourier Transform Near-Infrared (FT-NIR) Spectrometer

Spectral Range: 1000 – 2500 nm

Spectral Resolution: 3 nm

Detector: InGaAs Detector

Measurement Mode: Diffuse Reflectance / Transmission Module (Optional)

Analysis Time: < 60 seconds

Wavelength Accuracy: < 0.1 nm

Repeatability: CV ≤ 5%

Light Source Lifetime: ≥ 5000 hours

Operating Temperature: 5 – 40 ℃

Power Supply: 110 – 240V AC, 50/60Hz

Communication Interface: USB, Ethernet Port

Dimensions: 550 × 400 × 250 mm

Weight: Approx. 12 kg

Operating System: Windows OS, with ≥ 10-inch capacitive touch screen

Customer Case Studies

A Mega Palm Oil Refinery in Malaysia: Implemented online FFA and moisture monitoring, boosting the product qualification rate by 3%.

A Palm Oil Trading Company in Indonesia: Adopted the system for rapid grading, shortening the inspection time per batch from 4 hours to just 5 minutes.

An Edible Oil Manufacturer in Thailand: Deployed for raw material gatekeeping, effectively controlling incoming quality and mitigating procurement risks.
