Mobile Hyperspec Imager

Mobile Hyperspec Imager

Model NO. ATH3010-17

Delivery FOB

minimum order 1 unit

Country of Origin Made in China

Hyperspectral imaging systems are a powerful tool for non-contact or remote sensing of molecular chemical information of material quality or composition.

Quantity

Description

ATH3010-17 is a miniature hyperspectral imager with small size and light weight.

ATH3010-17 is featured with high spatial resolution, high spectral resolution and wide imaging range. ATH3010-17 has a built-in stable and blue-light source, and the power is adjustable, so there is no need for additonal supplementary light sources.

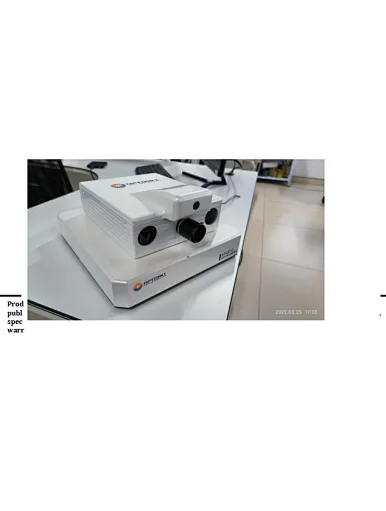

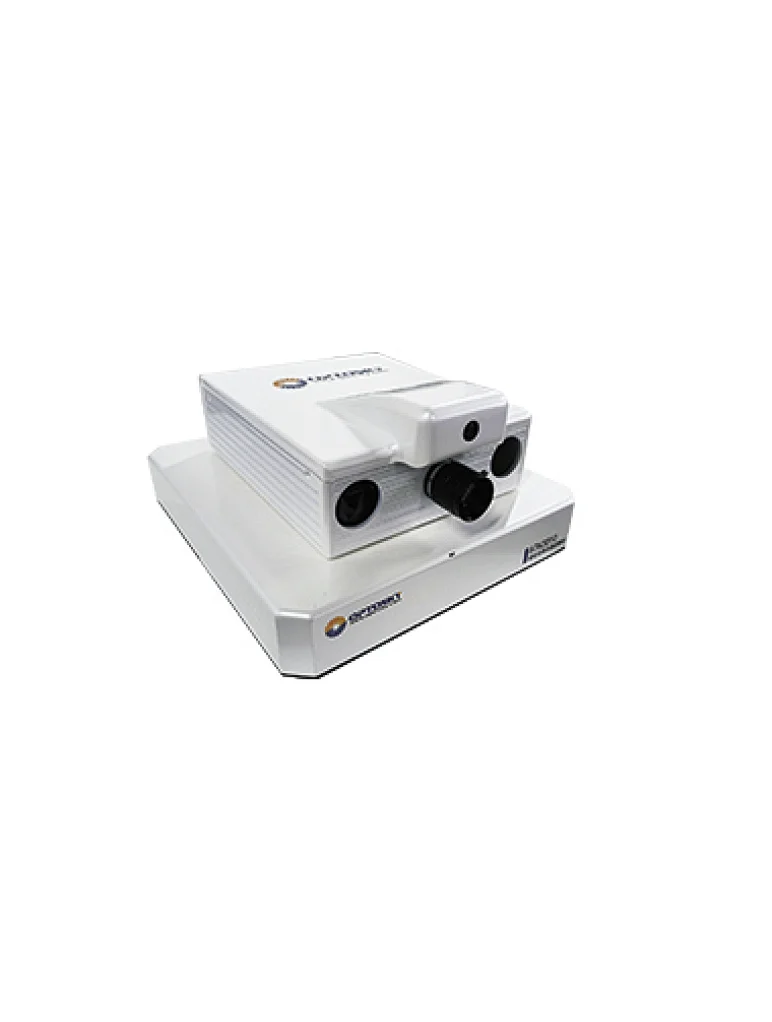

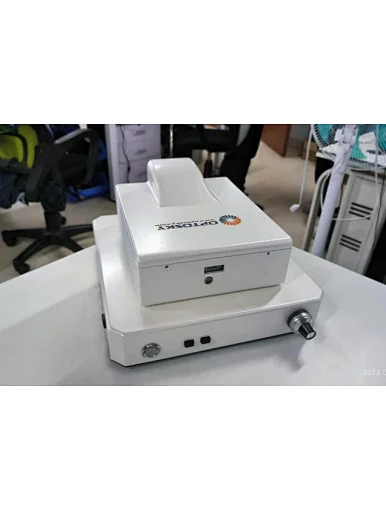

ATH3010-17 consists of a hyperspectral imager and a fully automatic motorized rotary atage, in which the hyperspectral instrument is based on high-efficiency transmission grating technology and has good aberration characteristics.

ATH3010-17 can be installed on a tripod or a apole, and add automatic calibration devices, weather monitoring sensors, etc, so as to achieve long and large-scale scanning upon the target.

Model	spectral channels	spatial channels
ATH3010-17-17	512	640
ATH3010-17-17H	1024	1280

Features

Spectral Range：900-1700nm
Spectral Resolution：3.5 nm
High Sensitivity SWIR Hyperspectral Imager
13-megapixel visible light camera with integrated spectrum
High-performance image sensor,high performance-to-price ratio
Blue light and infrared lighting source，power adjustable
Optical design with high imaging quality on the entire target surface, the spot diameter is less than 0.5 pixels
The lens interface is standard C-Mount, and the lens exchangeable
High-precision electric rotary table

Application

Pest Monitoring, Nutrient Monitoring, Disaster Assessment, Crop Yield Estimation, etc.

N/A	Items	ATH3010-17	ATH3010-17H
1	Spectral Range	900-1700nm	1000-1530nm（The band can be adjusted, with a total width of 530nm）
2	Spectral resolution	≤4.3 nm	≤3.5 nm
3	Sampling interval	1.56 nm	0.78 nm
4	F-number	F/2.6	F/2.6
5	Detector	InGaAs	Te-cooled InGaAs
6	Detector interface	USB3.0	USB3.0
7	Supply power	USB，10W	USB，25 W
8	Detector target size	9.6mm x 7.68mm	6.4 mm x 5.12mm
9	Detector raw resolution	640 × 512	1280 × 1024
10	Detector original pixel size	15 µm x 15 µm	5 µm x 5 µm
11	Bit depth	12 bits	12 bits
12	Slit width	15 µm	15 µm
13	Recommended way to merge cells	1x2	1x2、1x4
14	Spatial dimension effective number of pixels	512	1024
15	Number of spectral bands	256 or 512	512 or 1024
16	FOV	15.2°@f=35 mm	14.6°@f=35 mm
17	IFOV	2 mrad@f=35 mm	1.1 mrad@f=35 mm
18	Max frame rate	240 fps	66 fps
19	Size	306 mm x 300 mm x 162mm	306 mm x 300 mm x 162mm
20	Weight	＜5.8 Kg	＜7.5 Kg
21	Operating Temp	-10 - 50°C	-10 - 50°C
22	Storage Temp	-30-70°C	-30-70°C
23	Max. Spectral channel	≥512	≥1024
24	Max.Spatial channel	≥640	≥1280
26	Scanning	External push-broom measurement
27	Data acquisition software	Flexible setting of exposure time, dynamic display of real-time hyperspectral images and spectral curves
28	Data analysis software	One-click acquisition of cluster analysis, single-band, true and false color, more than 20 kinds of vegetation indices (customizable), 3D cropping of images, target spectrum recognition and other images can be obtained with one click without third-party software. All the above functions can realize intelligent batch processing
29	Software display	Dynamic real-time display of hyperspectral images, scientific light-dark focusing, avoiding manual visualization focusing errors
30	Communication interface	USB3.0
31	Light source	High stability constant power blue light surface light source The high-stability constant-power blue-light linear light source compresses and stretches the point light source through the optical lens group to improve energy utilization.
32	Line light source length（Optional）	Line light source length（Optional）
33	Line light source width（Optional）	≤30mm@400mm
34	Lifespan（Optional）	≥2000h
