Reflection Probes

Reflection Probes

Model NO. Reflection Probes

Delivery FOB

minimum order 1 unit

Country of Origin Made in China

Quantity

Contact Now add to cart

Description:

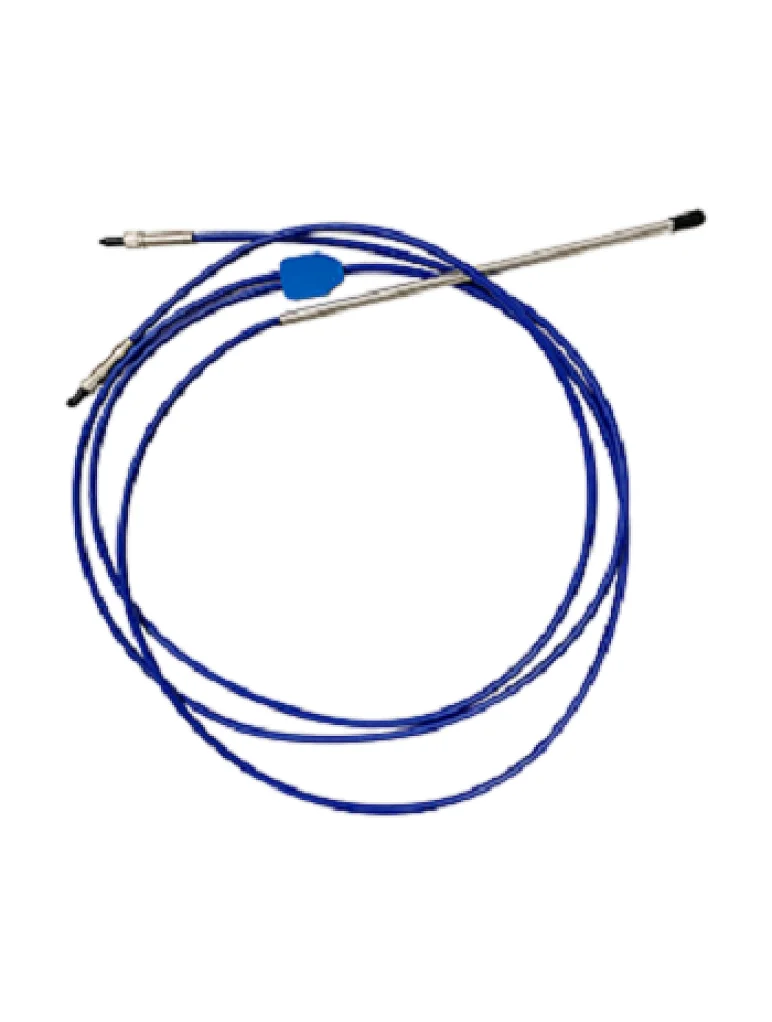

A reflection/backscatter probe is a compact, versatile sampling option to measure diffuse and specular reflectance, backscatter, or fluorescence from samples as varied as solids, solutions, and powders. reflection and backscatter measurements can provide quantitative information about the color, appearance, and chemical composition of a sample.
Optosky offer reflection/backscatter probes in a variety of fiber core sizes and wavelength ranges. Custom options are also available.
Features:

• General purpose -- ideal for diffuse or specular reflectance from solids; fluorescence; color
• SR fibers -- probe assembly comprises solarization-resistant fibers (200-1100 nm)
• Probe design -- 6-around-1 fiber bundle design, with 6-fiber leg connecting to light source and single-fiber leg connecting to spectrometer

Optical Parameters
Wavelength Range:	200nm - 1.1μm
Fiber Core Size:	200±4µm , 400±8µm ,600±10µm , customizable
Length:	2m
Jacket:	Stainless steel BX
Probe Ferrule Diameter:	3.175 mm (1/8″)
Breakout:	Midway point of assembly at 1 meter
Buffer Materials:	Polyimide
Cladding OD:	10±4µm ,30±3µm , 20±3µm , customizable
Connector:	SMA905
Long Term Bend Radius:	24cm
Coating OD	243±10µm , 487±20µm, 700±25µmcustomizable
Numerical Aperture:	0.22 ± 0.02 (equivalent to an acceptance angle of 24.8° in air)
Primary Buffer OD:	25 ± 10 µm, 20± 7 µm, 10± 5 µm
Probe Fiber Bundle:	6 illumination fibers around 1 read fiber
Short Term Bend Radius:	12cm
Probe Ferrule Length:	76.2 mm (3″)
Probe Ferrule Material:	Stainless steel
Electrical Parameters
Operating Temperature:	-65 to 300 °C
