Collimating Lenses

Collimating Lenses
UV5-10
Quantity

Description:

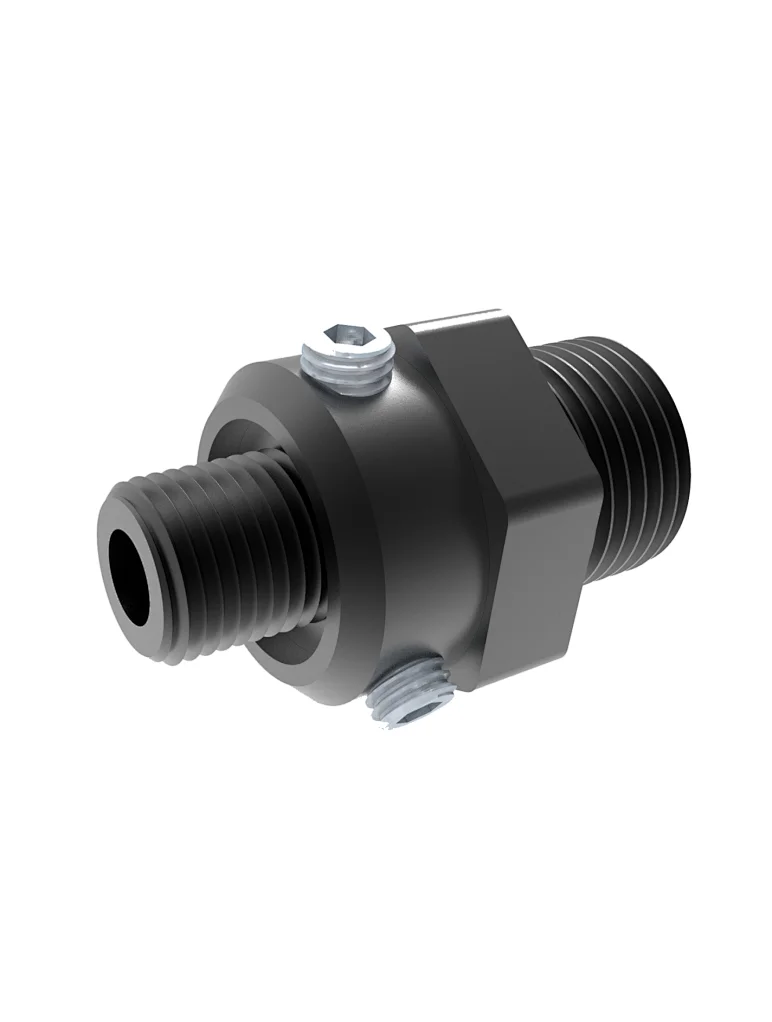

This product is used for collimation and focusing of optical fibers, with a standard SMA905 connector at one end for connecting fibers and a 3/8-24UNF-2A thread at the other end. The structure can be adjusted by three setting screws, and the beam passes through the lens without a divergence angle of no more than 2°. The beam field of view, which can be adjusted in UV-VIS or VIS-NIR applications, can be adjusted between convergence and divergence (~45°). UV5-10 fiber collimator can be used as an optical fiber probe after connecting to the fiber optic to collect the spectrum of the target point; two fiber optic collimators with two fibers and a fixed seat can realize absorbance test, transmittance test and fluorescence test.
Feature:

  • Connector: SMA905
  • Spectral Range: 200-2500nm
  • Lens materials: BaF10 and FD10 fused Silica
  • Lens diameter: 6-6.5mm
  • Length focal length: 10mm
  • Focal length adjustable: 5mm
  • Compatible Aperture: 0.22-0.37NA
  • Housing material: Aluminium Alloy
  • Housing color: black
  • Working Temp: -30~200℃
  • Thread: UNF 3/8"-24
  • Outer hexagon dimension: 12.7mm
