What are the powerful functions of ATR8500 Raman Microscope?
What are the powerful functions of ATR8500 Raman Microscope?

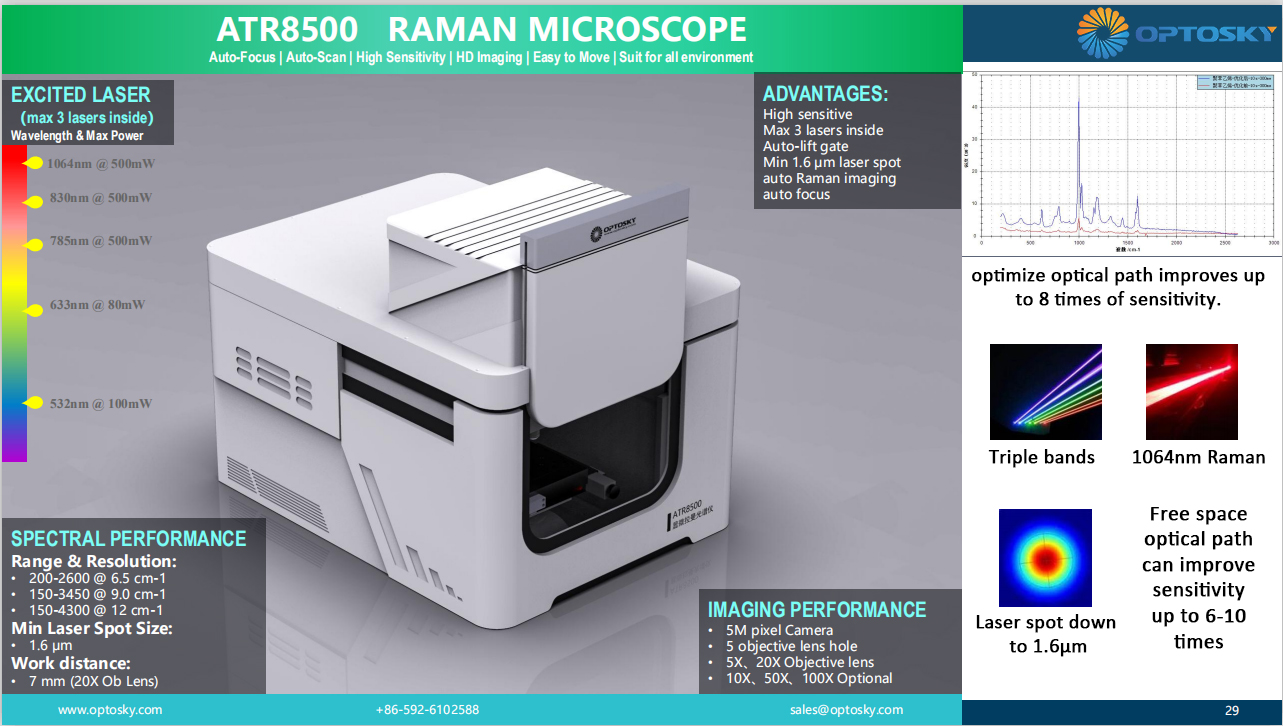

ATR8500 is a newest Raman Microscope Spectrometer of Optosky. Here are many features:
- Fully automatic Raman experiment ,can Auto-Focus and Auto-Scan
- Large-range imaging (50x50mm), automatic image stitching
- Max. 3 types of wavelengths lasers;
- Ultra depth Imaging function(Optional);
- High sensitivity,SNR>6000:1
- True-Focus to ensure accurate Raman image
- High spatial resolution
- Unique switch optical path controlled by software
- Fast positioning, fast find focus position
- High quality objective, spot size at micrometre
- 5-mega camera provide clear image
- USB2.0 direct connect to PC
- HD Imaging
- Easy to move
- Suit for all environment
At its imaging performance, we also have more choices. such as 5M pixel Camera, 5 Objective lens hole, 5X. 20X Objective lens, 10X. 50X. 100X Optional , And it has a large wavelength range to select. And each wavelength corresponds to a maximum power:
- 1064nm-500mW
- 830nm-500mW
- 785nm-500mW
- 633nm-80mW
- 532nm-100mW
Its work distance is 7mm (20x Ob Lens),and its spectral range corresponds to a resolution:
- 200-2600@6.5cm-1
- 150-3450@9.0cm-1
- 150-4300@12.0cm-1
Its biggest advantage is that Can max 3 lasers inside. Optimizing the optical path improves up to 8 times of sensitivity. Free space optical path can improve sensitivity up to 6-10 times. It means that its reliability will become higher. And its laser spot down to 1.6um.It has many applications:
- Nano particles & new materials
- Scientific research institute
- Biological Science
- Forensic medical identification
- Materials science
- Medical Immunology Analysis
- Agricultural & food safety
- Water pollution analysis
- Gemstones and inorganic minerals identification
