What does All-Auto & High Throughput Portable Raman Analyzer tell you?
What does All-Auto & High Throughput Portable Raman Analyzer tell you?

What is All-Auto & High Thoughput Portable Raman Analyer?

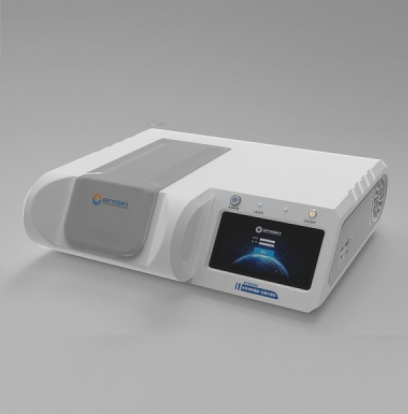

ATR8000 Full-Auto & High Throughput Portable Raman Analyzer is a all-auto detection instrument for improving detection throughput, reducing workload and protecting the health of testing personnel.
What are some of its parameters?
- Excitation Wavelength : 785nm
- Laser Power : 500mW
- Wavelength Range: 200~3500
- Resolution: 3~8cm-1
- Central wavelength: 785±0.5nm
- HBW: 0.08nm
- Maximum power ≥500mW
- Power stability σ/μ<±0.2%
- Detector type: 200-1100nm dynamic range: 50000:1
- Detector model: TE-cooled
- SNR :>3000:1
What are its advantages ?
-
Test 100 samples at the same time;
-
All-Auto detection;
-
High sensitivity;
-
Wavelength customized:532nm, 633nm, 785nm, 1064nm;
-
Double wavelengths customized: 785+1064nm, 532+1064nm, 532+633nm, 633+1064nm;
-
It is easy for manipulator ;
-
High reliability ;
-
It can auto-identify, and auto-skip without sample ;
-
Intelligent and intuitive software supports operation.
What are its application areas?
-
University lab, scientific research institution ;
-
Nanoparticles & New materials;
-
Biological science;
-
Forensic Identificaiton;
-
Material science;
-
Medical analysis of immunology;
-
Agriculture & Food of identification;
-
Water pollution analysis;
-
Gem & Inorganic mineral of immunology;
-
Environment science.
ATR8000 software uses two-dimensional platform of high-precision & all-auto scanning technique. And it runs automatically at original manual operation with the step of Raman test, calculating the result, judgment, display & printing results and so on.
ATR8000 uses the customized Android with high security. It has thermal printer, bar code scanner, USB interface, WIFI & 4G with customized which can directly print or submit to competent authorities by internet for testing results.
