Raman spectrometer environmental detection
Raman spectrometer environmental detection
author: Yilia
2022-11-29

Test instrument: ATR3110-785-35
Wave number range: 200-3500cm-1

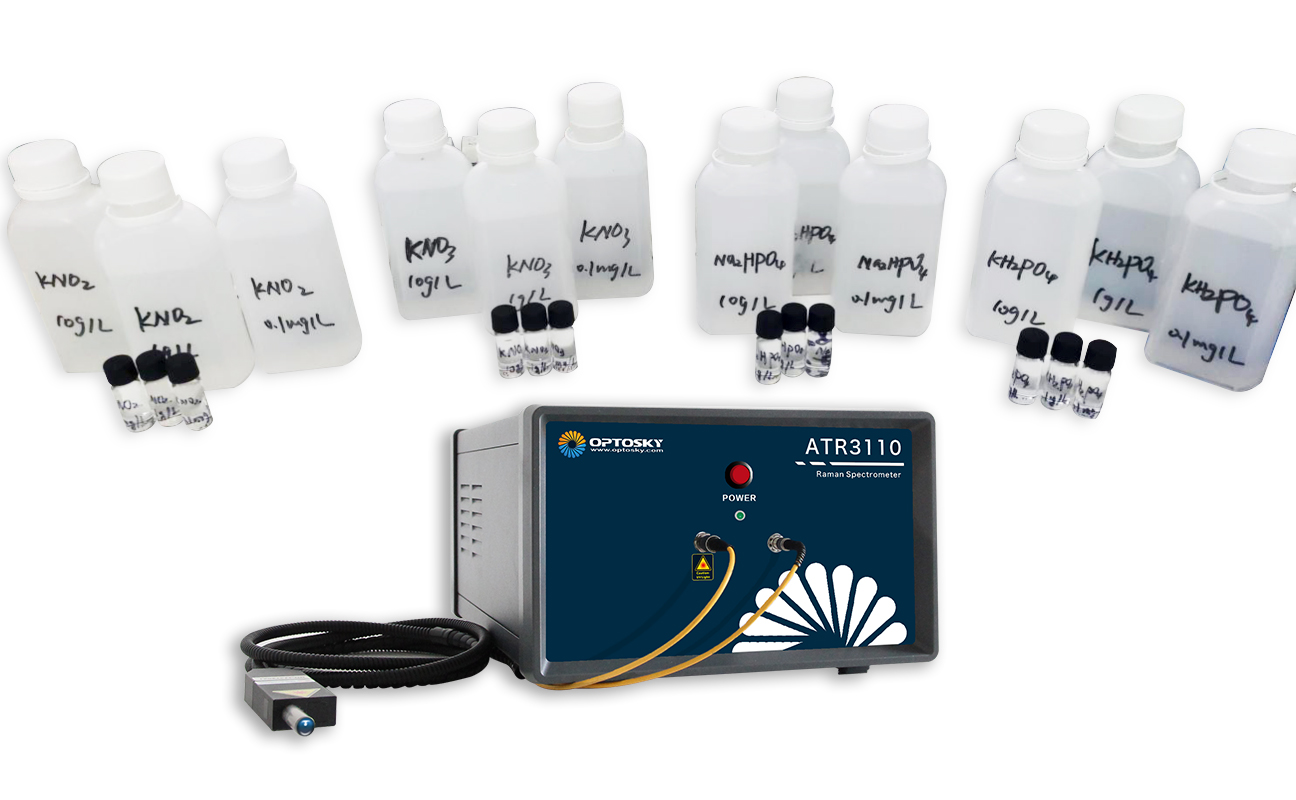

Test samples: See Figure 1 for four standard solution samples, the solution concentrations are 10g/L, 1g/L, 0.1mg/L
Test purpose: observe the Raman peak of the sample and make a complete record
Test Method and Process:
ATR3110-785-35: After connecting the instrument and computer, put the standard solution sample, after manual focusing, you can adjust the laser power and integration time for testing.
Test Results:
After several adjustments of laser power and integration time, the best conditions were determined: laser power 400mw, integration time 20s, the specific collection results are as follows:

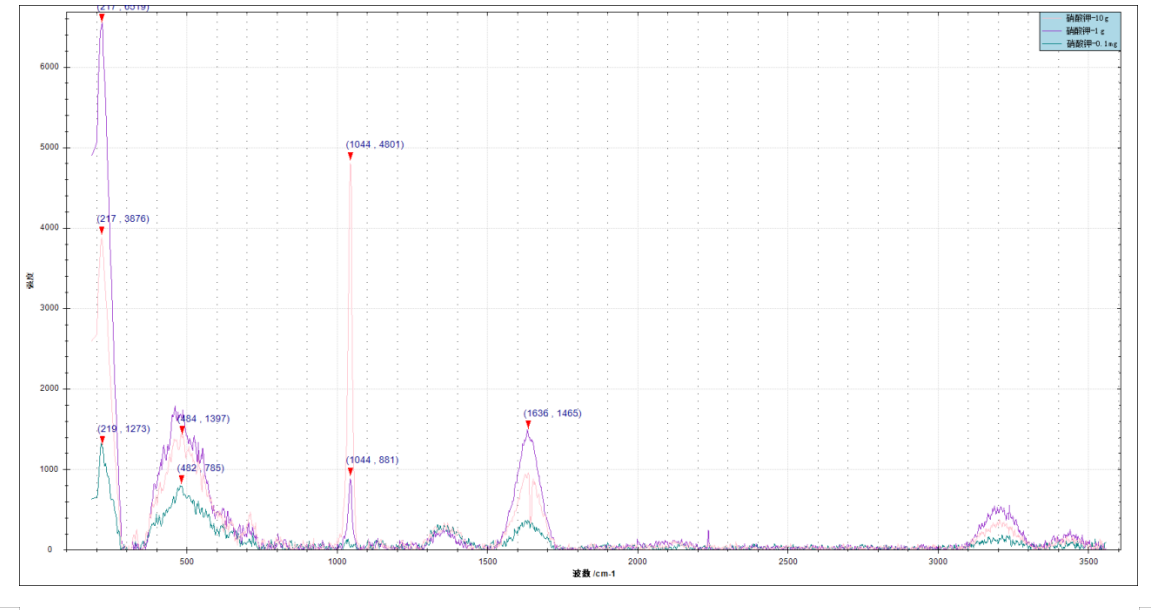

KNO3:

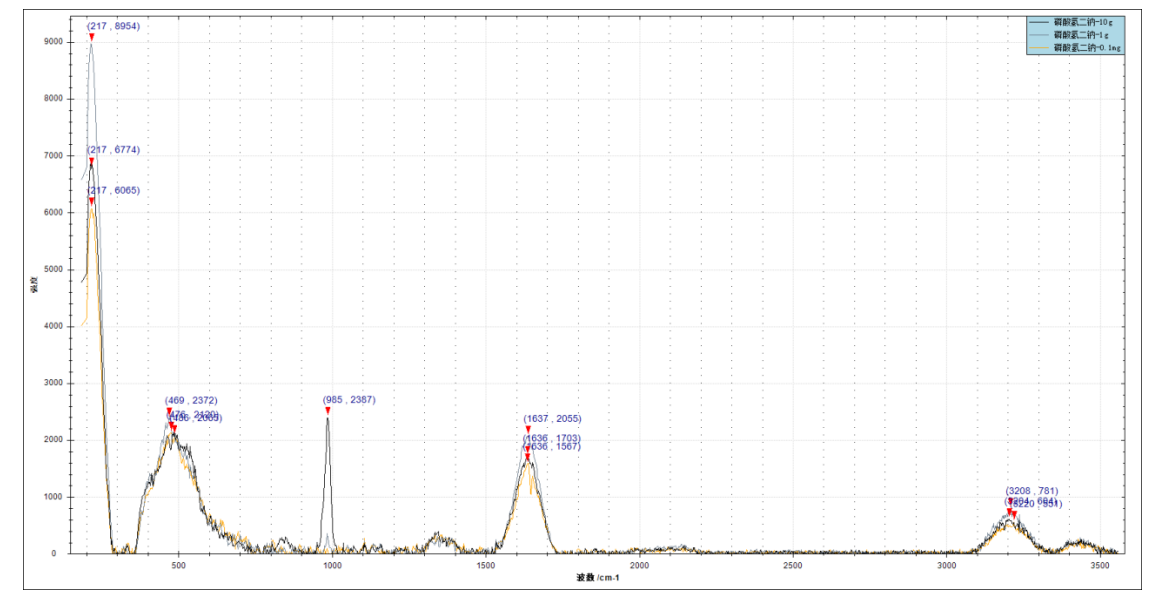

Na2HPO4:

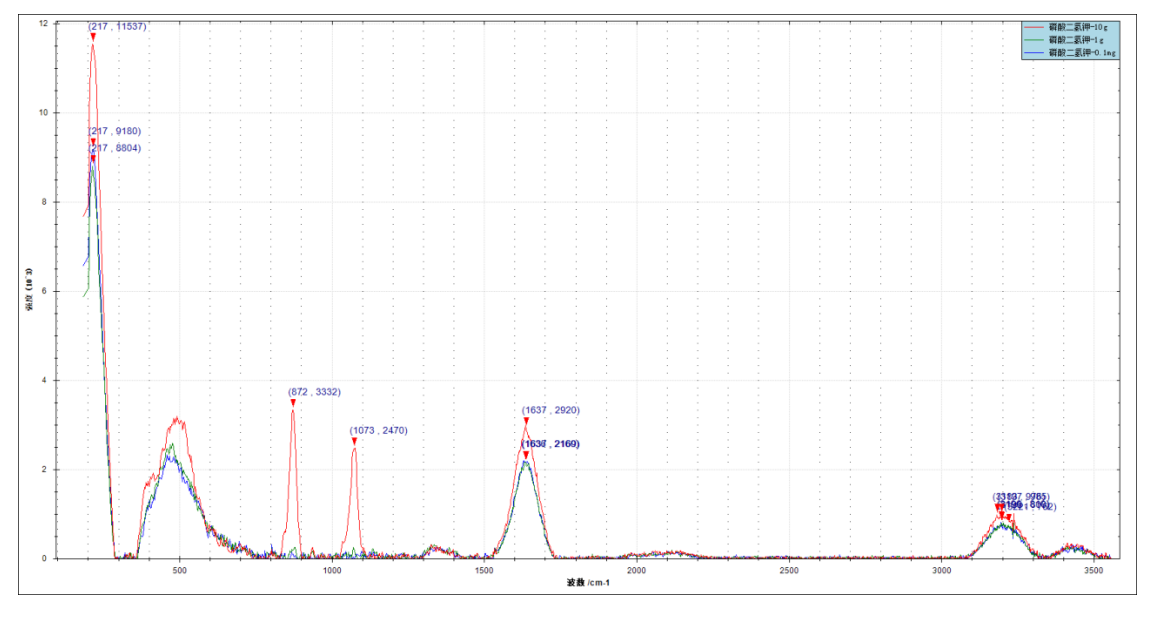

KH2PO4:

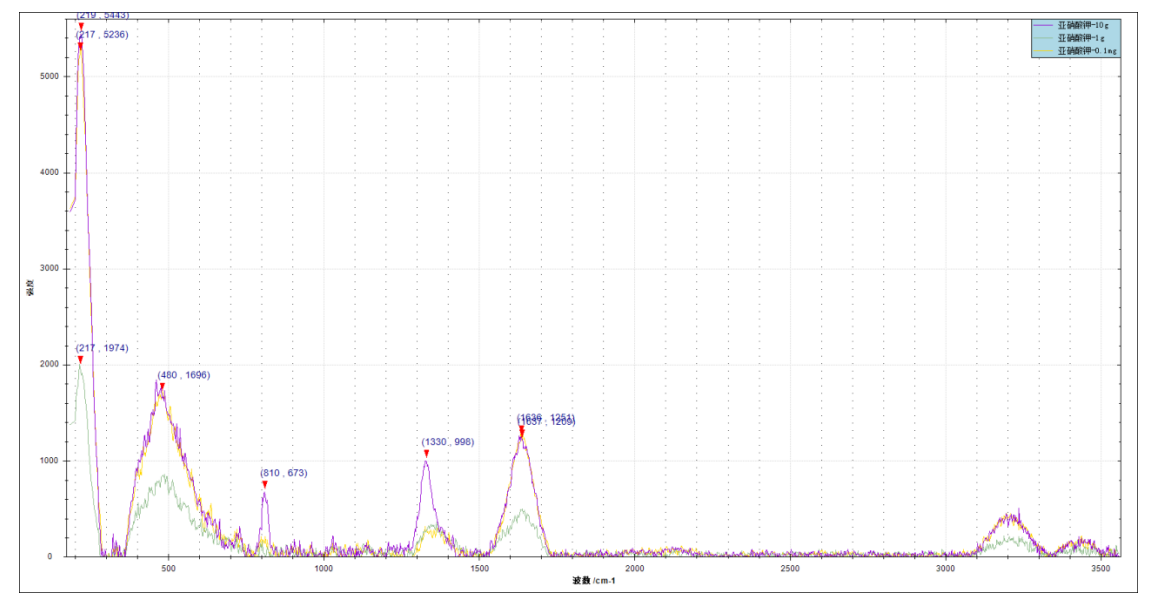

KNO2:

Conclusion:
According to the above test results, it can be seen that the Raman spectra of the four standard solution samples can be measured using the ATR3110-785-35 Mann spectrometer, and the peaks are obvious. And from the test results, the standard solution with different concentrations, the higher the concentration, the stronger the Raman peak intensity.
Wave number range: 200-3500cm-1
Test samples: See Figure 1 for four standard solution samples, the solution concentrations are 10g/L, 1g/L, 0.1mg/L
Test purpose: observe the Raman peak of the sample and make a complete record
Test Method and Process:
ATR3110-785-35: After connecting the instrument and computer, put the standard solution sample, after manual focusing, you can adjust the laser power and integration time for testing.
Test Results:
After several adjustments of laser power and integration time, the best conditions were determined: laser power 400mw, integration time 20s, the specific collection results are as follows:
KNO3:

Na2HPO4:

KH2PO4:

KNO2:

Conclusion:
According to the above test results, it can be seen that the Raman spectra of the four standard solution samples can be measured using the ATR3110-785-35 Mann spectrometer, and the peaks are obvious. And from the test results, the standard solution with different concentrations, the higher the concentration, the stronger the Raman peak intensity.
