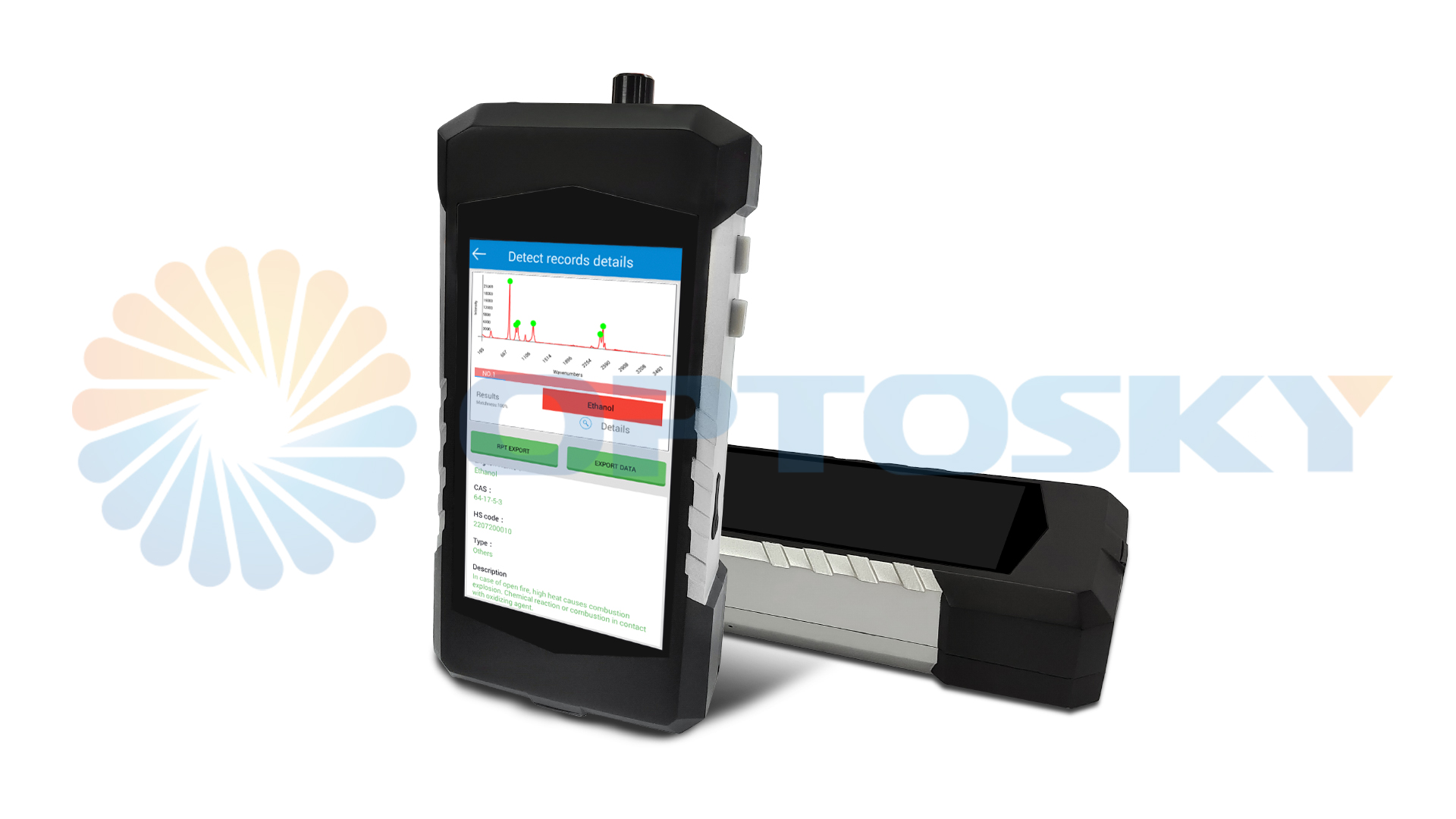

[New product] ATR6600Pro product, officially released! The detection speed of ATR6600Pro is 4 times faster than ATR6600!
The Hand-held Raman Spectrometer 's background
Raman spectroscopy technology is a non-contact, non-destructive rapid detection technology, which can easily give the structure and composition of substances.

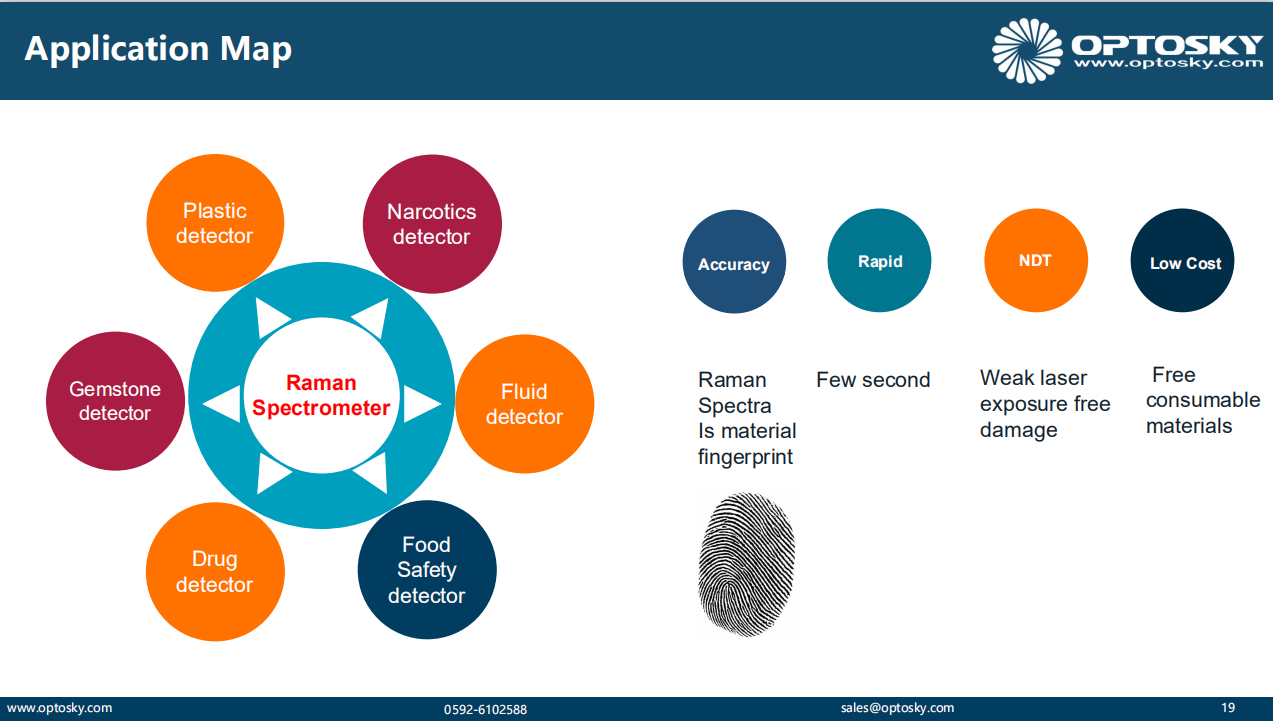

The fingerprint information can be classified, and various substances and crystal structures can be identified from the molecular level, which is very suitable for the pharmaceutical industry process and drug testing.In recent years, Raman Spectroscopy is one of the techniques that have gained a reputation in the pharmaceutical industry for the rapid identification of unknown compounds.And it has a wide range of applications: such as substances identification, minerals sorting, experiment research, antique identification, gemstone identification,drugs detection.

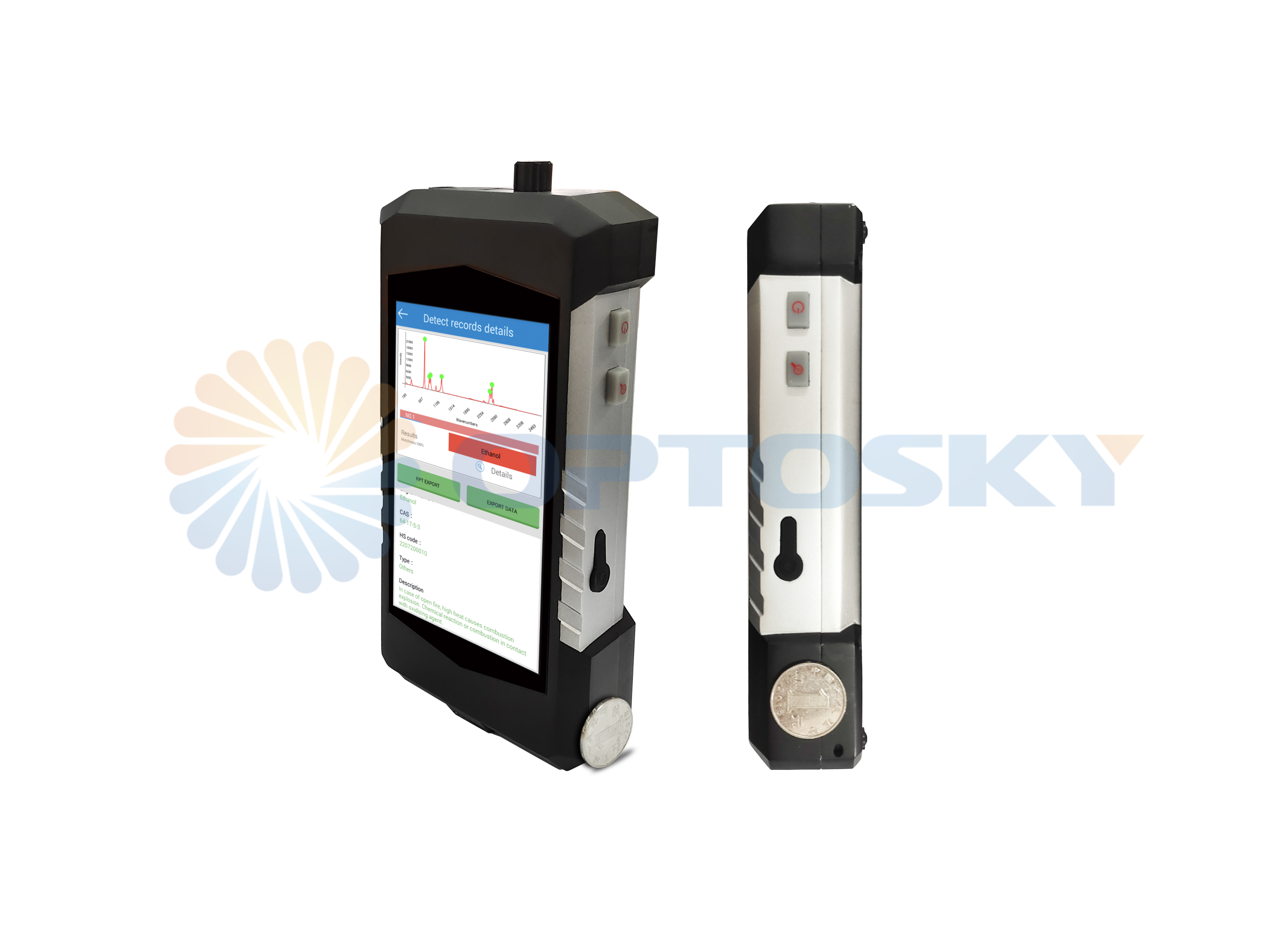

Handheld Raman Spectrometer:
ATR6600Pro is an era-wide new product launched by Optosky on the basis of 20 years of experience in Raman spectral development. It is based on the ultra-high fluorescence free effect of 1064nm excitation light itself, which is especially suitable for the detection of high-fluorescence samples. ATR6600Pro adopts a new design. High-throughput optical circuit structure and signal processing technology have increased signal sensitivity fourfold and detection speed fourfold.
ATR6600Pro has an excellent built-in Raman spectroscopy recognition algorithm, which can detect substances indiscriminately, easily identify substances, and add users' own spectral data. It adopts an Android system with a simple and clear interface, a 5.5-inch HD screen, and a high-definition camera of 13 million, which can record and detect the scene at any time, with built-in WIFI, Bluetooth, GPS and other modules, which are simple and intelligent.
Another key benefit of the Handheld Raman instrument is it's unique synchronization capabilities within a network, this allows the users to keep their devices updated with spectral libraries, or to upload validation methods and reporting templates at any time with total security and data integrity. In addition, it has the capability of carrying out method and data interrogation remote from the sampling and testing area via a computer.
Its core is a 785 nm wavelength laser excitation source, which can provide a very stable signal with low background noise and unparalleled data reproducibility.
It provides laboratory-grade Raman performance in a convenient handheld packaging. It has the ability to generate signals with extremely high signal-to-noise ratio specifications, which is necessary for the successful testing of materials found in the pharmaceutical industry, and ensures maximum repeatability and identification of almost all incoming materials. Even for complex polymorphic pharmaceutical compounds, this performance can provide the highest quality signal, thereby reducing the need for repeated testing of materials, thereby saving time, reducing production costs and increasing productivity.
The optosky handheld Raman is especially relevant to the pharmaceutical industry. It meets the integrity, safety and traceability of all data generated in the identification and testing of pharmaceutical compounds and raw materials:
Optosky provides full technical support and services, including spectral library building, method & verification, IQ/OQ/PQ validation etc. The IQ (Installation Qualification) verification by way of documented proof that the equipment has been installed in accordance with relative drawings and specifications under the guidelines of the appropriate safety regulations .The OQ (Operational Qualification) verification which establishes that all process equipment and sub-components are fully capable of operation within the limits and tolerances specified. This kind of support is available to all users of the equipment.
It is the most latest handheld Raman spectrometer, it can export report including detect result, spectral info, evident pictures ,and handheld Raman spectrometer for the rapid identification of various chemicals used in the pharmaceutical manufacturing process, including the verification of incoming raw materials, quality control of the final drug product and testing of counterfeit drugs in the field. It has been specifically designed for these kinds of applications and for that reason is fully compliant with all the major global regulatory, safety, and commercial testing agencies which are applicable to the pharmaceutical industry.For more detailed information about this instrument, please contact us.
