Application | Precise Watermelon Quality Detection with NIR Spectroscopy

2026-01-07

In the fruit market, watermelon is a quintessential summer treat beloved by consumers. As living standards rise, so do expectations for watermelon quality. From sweetness and freshness to internal defects, every factor influences purchasing decisions. For growers and distributors, accurately assessing quality is not just about customer satisfaction—it's directly tied to profitability.

Spectral analysis has pioneered a new approach in watermelon inspection, leveraging portability and accuracy. The Optosky spectrometer portfolio, with its diverse models covering UV-Vis-NIR wavelengths—from cost-effective to research-grade—offers flexible solutions for various scenarios, empowering precise, online analysis of melon quality.

01 Analysis of Near-Infrared Spectroscopy Technology

When near-infrared (NIR) light irradiates a watermelon, it interacts with internal molecules. Different molecular structures—such as sugars, water, and cellulose—absorb or scatter specific wavelengths. For instance, chemical bond vibrations (C-H, O-H) in sugar molecules create unique absorption peaks in the NIR range. NIR spectrometers accurately capture these spectral signals via highly sensitive detectors, converting them into electrical signals. Sophisticated algorithms then process this data to decode the internal composition of the fruit.

In hardware terms, Optosky spectrometers are equipped with high-resolution gratings that precisely separate polychromatic light into individual wavelengths. Coupled with optical systems featuring a large numerical aperture, they collect more light to enhance detection sensitivity. The integrated cooled detector effectively reduces noise interference, enabling accurate identification of even weak spectral signals and ensuring reliable, stable data.

02 Detection Capabilities

Maturity & Sweetness (Brix) Detection

Sweetness is a key quality indicator. Traditional methods, like cutting the fruit and using a refractometer, are destructive and impractical for bulk screening. In contrast, spectrometer-based testing is non-destructive: simply placing the probe against the rind yields spectral data within seconds. By correlating spectral features with sugar content through precise mathematical models, the system accurately predicts sweetness.

For maturity assessment, differences in internal composition between unripe and ripe watermelons manifest as distinct spectral signatures. Ripe melons, with higher sugar accumulation, exhibit stronger absorption peaks at specific wavelengths. Analyzing these characteristic changes allows the system to determine the maturity stage, helping growers and distributors identify optimal harvest and sale timing.

Internal Defect Detection: Hollow Heart, Disease & Pest Damage

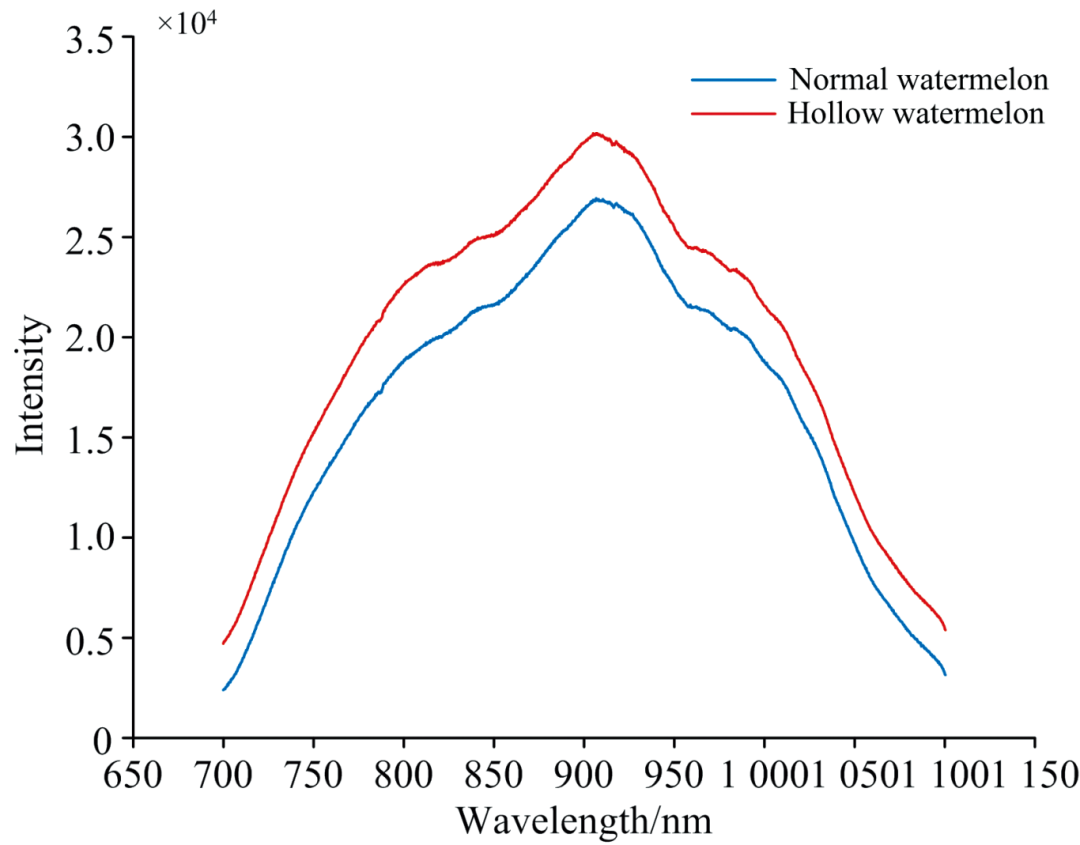

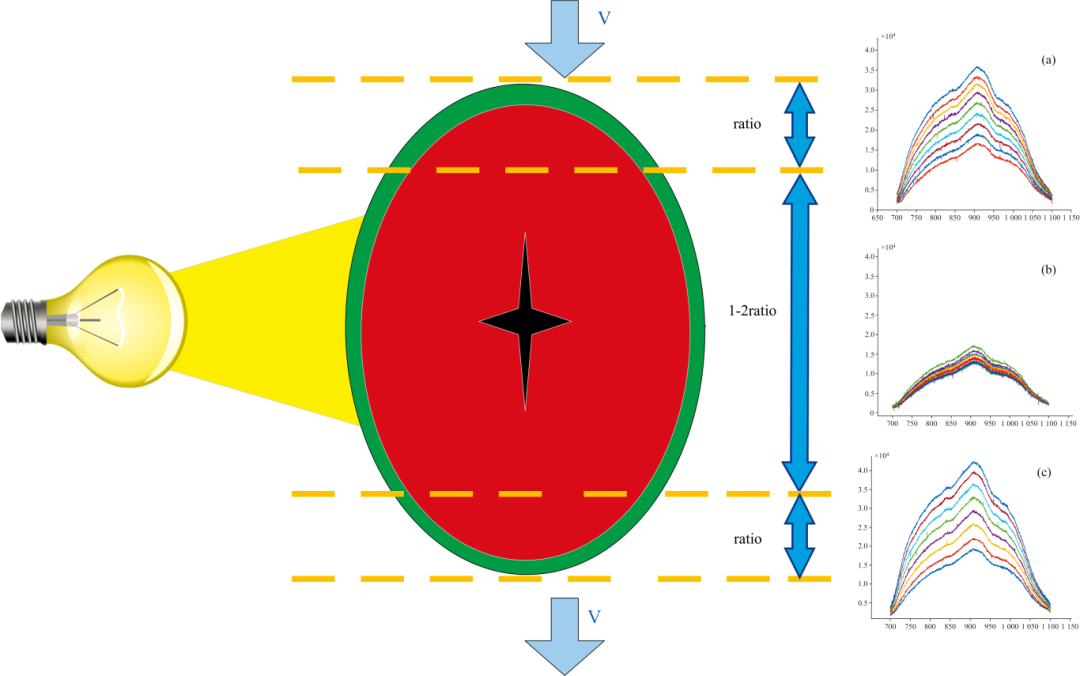

Internal hollow heart is a common issue traditionally difficult to detect without cutting the fruit. Optosky spectrometers (e.g., ATP5020 & ATP6500) tackle this challenge effectively. Hollow areas differ from normal flesh in structure and composition, leading to distinct light absorption and scattering properties. These differences appear as unique spectral features. By analyzing large sample datasets and training machine learning algorithms, the system can accurately identify the presence, location, and approximate extent of hollow heart.

For disease and pest detection, physiological changes in affected tissue leave traces in the spectral data. For example, infected areas exhibit altered water content and organic composition, causing spectral features to deviate from the normal range. Leveraging high sensitivity and precise analytical capabilities, Optosky spectrometers can detect these subtle changes early, enabling growers to take timely action and minimize losses.

03 Principle: How the Spectrometer "Identifies" Cobalt Ions

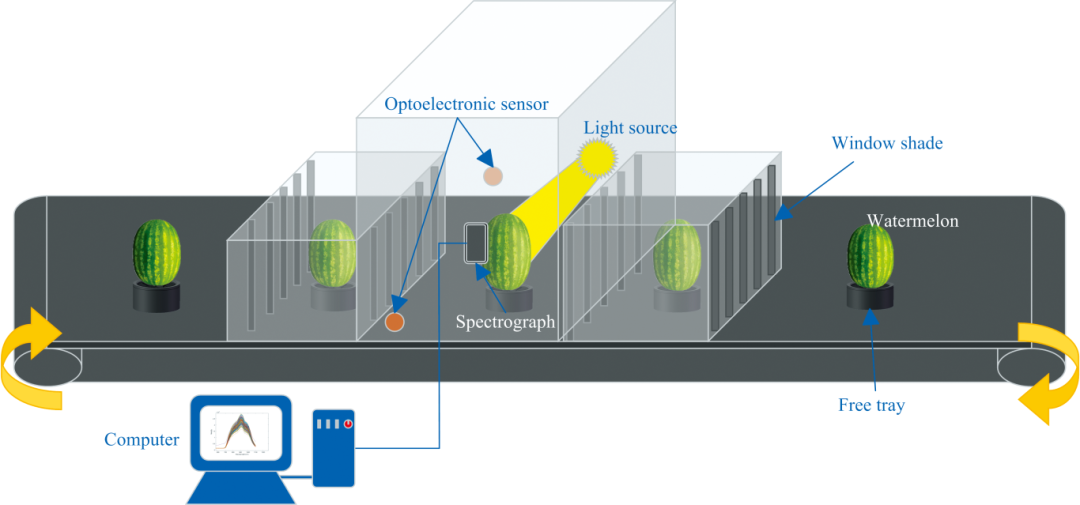

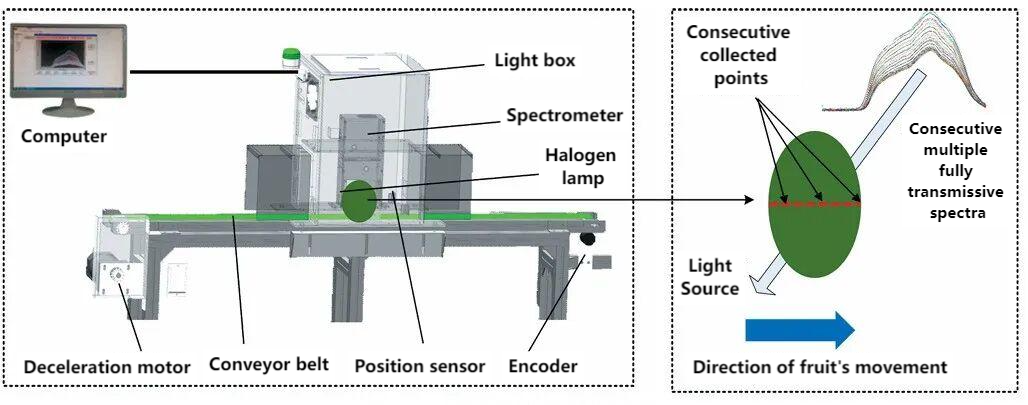

In some watermelon growing bases, traditional manual methods—like tapping and visual inspection—are inefficient and inaccurate. By deploying Optosky spectrometers in online systems installed on conveyor belts, inspection can be completed as melons move rapidly. Throughput can reach thousands of watermelons per hour, dramatically improving efficiency. With model accuracy exceeding 98%, grading becomes highly precise, increasing the proportion of premium fruit entering high-end markets and delivering greater economic returns.

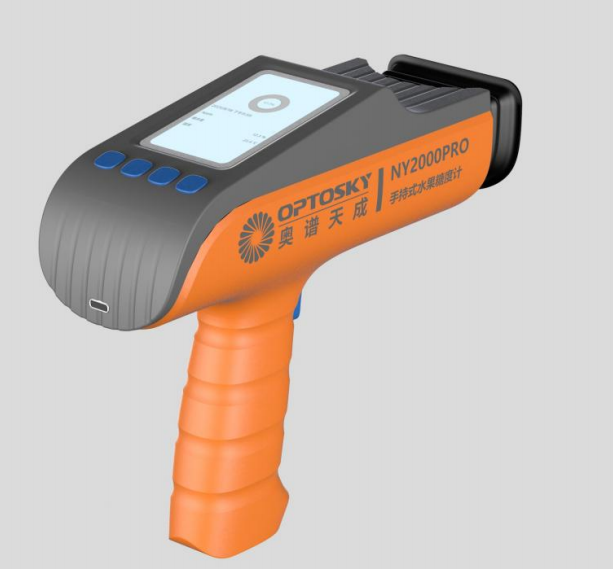

For fruit distributors, the portability of Optosky's handheld spectrometer models is a major advantage. Staff can perform spot checks at procurement sites without complex procedures, quickly assessing quality to avoid purchasing substandard produce and reducing business risk.

With advanced technology, accurate results, high speed, and user-friendly operation, the Optosky spectrometer series holds broad application potential in watermelon and other fruit inspections, providing strong support for quality improvement and industry development.

04 Conclusion

Leveraging NIR transmission spectroscopy for fruit analysis benefits every stage of the supply chain—from growing and distribution to retail—driving the entire industry toward a more scientific and refined future.
