Application case | Application of GY1000 online near-infrared measurement of object moisture content
In daily life and industrial production, whether raw materials, semi-finished products, or finished products, all contain a certain amount of water, such as liquor lees, grain, tobacco, etc. A certain moisture content is of great significance for substances to maintain their shape and properties. For example, in the food field, the moisture content in food will affect the spoilage and moldiness of the food. At the same time, the moisture content in the food has an important relationship with the freshness, hardness, fluidity, flavor and other aspects of the food. The conventional moisture content drying method takes a long time to measure and is cumbersome to measure. It is a quick and simple method to measure the moisture content based on the principle that water absorbs in the near-infrared region.

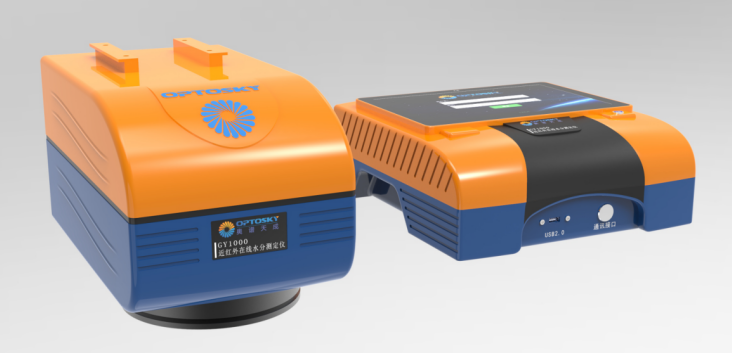

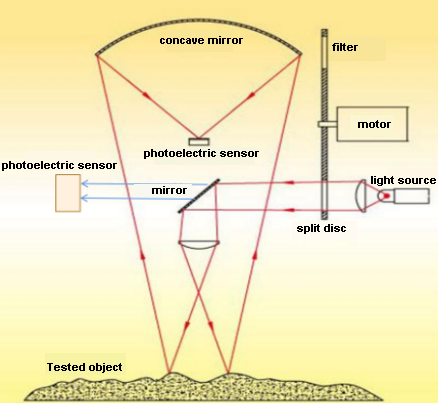

As a leader in domestic spectroscopy companies, Optosky is committed to developing near-infrared spectroscopy to solve the pain points of moisture content measurement in the industry, and has launched the GY1000 online infrared moisture meter to measure moisture in grain, tobacco, coal and other industries. Provides a fast and convenient method for measuring moisture. Water shows strong absorption characteristics for some specific wavelengths of infrared light. When materials are irradiated with infrared light of specific wavelengths, the water contained in the material will absorb part of the infrared light energy. The more water there is, the more absorption will occur. Therefore, the reduction in reflected light can be measured to calculate the moisture content of the material.
Features
(1) Non-contact, non-destructive, real-time and dynamic online testing system;
(2) Replaceable ultra-long-life tungsten halogen light source with higher luminous efficiency;
(3) Use dual cooling PbS infrared detectors to improve temperature stability;
(4) 4-wavelength 8-beam technology ensures more accurate and stable results;
(5) High-speed brushless motor ensures more accurate signal sampling results;
(6) The high-definition touch screen displays real-time measurement data and can store measurement data within 30 days;
(7) Split design, one controller can connect 4 probes;
(8) Sturdy industrial design, dustproof and water-proof, adaptable to various industrial sites.
Applications:
(1) Application of GY1000 in measuring the moisture content of distiller’s grains
|
Actual measurement of moisture content |
Moisture content prediction |
Deviation |
|
61.88% |
60.41% |
1.47% |
|
61.62% |
61.03% |
0.59% |
|
61.35% |
59.57% |
1.78% |
|
60.91% |
60.11% |
0.80% |
|
59.51% |
58.08% |
1.43% |
|
55.91% |
55.39% |
0.52% |
|
49.46% |
45.27% |
4.19% |
|
47.09% |
42.46% |
4.64% |
|
45.42% |
39.59% |
5.83% |
|
Average deviation |
2.57% |
|
|
Maximum deviation |
5.83% |
Use GY1000 to test the moisture content of distiller's grains, and compare it with the manual drying method. The average deviation is 2.57%. It can be seen that the accuracy of our instrument is basically the same as that of the drying method, but our GY1000 has significant advantages in testing speed and operation.
- Application of GY1000 in papermaking coating industry
|
Actual moisture content |
Calibrated moisture content |
Measurement error |
|
3.30% |
3.62% |
-0.32% |
|
4.13% |
4.10% |
0.03% |
|
5.12% |
5.10% |
0.02% |
|
5.29% |
5.50% |
-0.21% |
|
5.95% |
6.20% |
-0.25% |
|
6.61% |
6.80% |
-0.19% |
|
7.44% |
7.50% |
-0.06% |
|
Maximum deviation |
0.32% |
|
|
Absolute average |
0.16% |
GY1000 was used to test the moisture content of the papermaking coating industry, and the test obtained good results.
- Application of GY1000 in tobacco moisture content detection
|
Sample name |
Moisture content of drying method |
Instruments measure moisture content |
|
Tobacco leaf |
9.10% |
8.56% |

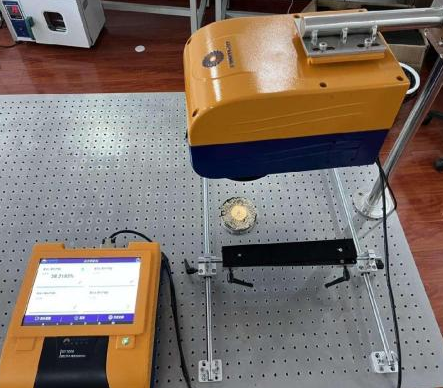

GY1000 was used to test the moisture content of tobacco leaves. The instrument test result was 8.56%, and the drying method measurement result was 9.10%. It can be seen that there is no significant difference between the instrument results and the drying method results, and can be used in tobacco leaf testing.
Instrument parameters:
|
GY1000 |
||
|
1 |
Measuring Range |
0 ~70% H2O |
|
2 |
Light Source |
Life≥5000H |
|
3 |
Measuring wavelength |
4 wavelengths, 8 beams |
|
4 |
Detector |
Cooled infrared detector（ PbS） |
|
5 |
Measurement accuracy |
<0.3% (Absolute average) |
|
6 |
Repeatability |
<0.1% |
|
7 |
Test speed |
25ms |
|
8 |
Measure distances |
250±100mm |
|
9 |
Detection area |
Diameter 50mm |
|
10 |
Motor speed |
2400RPM/M |
|
11 |
Reference size |
218mm×362mm×235mm |
|
12 |
Reference weight |
About 15Kg |
|
13 |
Touch screen |
10-inch capacitive touch screen |
|
14 |
Operating system |
Android 7.1 |
|
15 |
Combination method |
One monitor supports up to 4 probes |
Summarize
GY1000 adopts the principle that water absorbs in the near-infrared region and can be widely used in moisture content measurement in tobacco, grain, coal and other industries. Compared with traditional manual methods, it has the characteristics of fast measurement speed and convenient testing. Therefore, GY1000 has a wide range of application scenarios in the field of moisture measurement. If you are interested in the above solutions or have other moisture measurement application scenarios, or want to know more solution design details, please call us for consultation.
