INTRODUCTION

Automatic water quality monitoring at river and sea discharge outlets is one of the key technologies for environmental protection and management. By enabling automatic monitoring, this solution ensures effective oversight of existing pollution discharge points, allowing for real-time data collection, quick response to water quality issues, and effective measures to improve the ecological quality of river and marine environments. River and sea discharge outlets are crucial, as they are the final gateways for pollutants to enter rivers and seas, making them primary sources of water pollution. Thus, enhancing automatic water quality monitoring at these points is a significant step toward improving water ecosystem quality.

THE DIFFICULTY AND SITUATION OF RIVER AND SEA DISCHARGE OUTLETS

Numerous outlets make it challenging to inspect thoroughly.

Few monitoring points make rapid detection difficult.

Lack of smart monitoring limits predictive alerts and traceability.

Pollution tracing is challenging, making it difficult to hold responsible parties accountable.

SOLUTIONS

SOLUTION OF OPTOSKY

OPTOSKY’s Automatic Water Quality Monitoring Solution for river and sea discharge outlets combines OPTOSKY’s ultra-fast full-spectrum water quality monitoring, hyperspectral remote sensing, and laser-induced fluorescence technology with 4G/5G, big data, and video monitoring. This integrated solution enables real-time monitoring of discharge point water quality, water level, flow rate, and video surveillance. It establishes a standardized, intelligent data platform for discharge points, providing monitoring data, traceability, and support for water ecosystem management.

Solution Advantages

• Full-spectrum water quality monitors provide immediate results at discharge points, with instant alerts for abnormal situations to enable swift responses.

• Enables real-time patrols at key discharge points. Hyperspectral remote sensors support remote image capture and video recording, aiding off-site law enforcement.

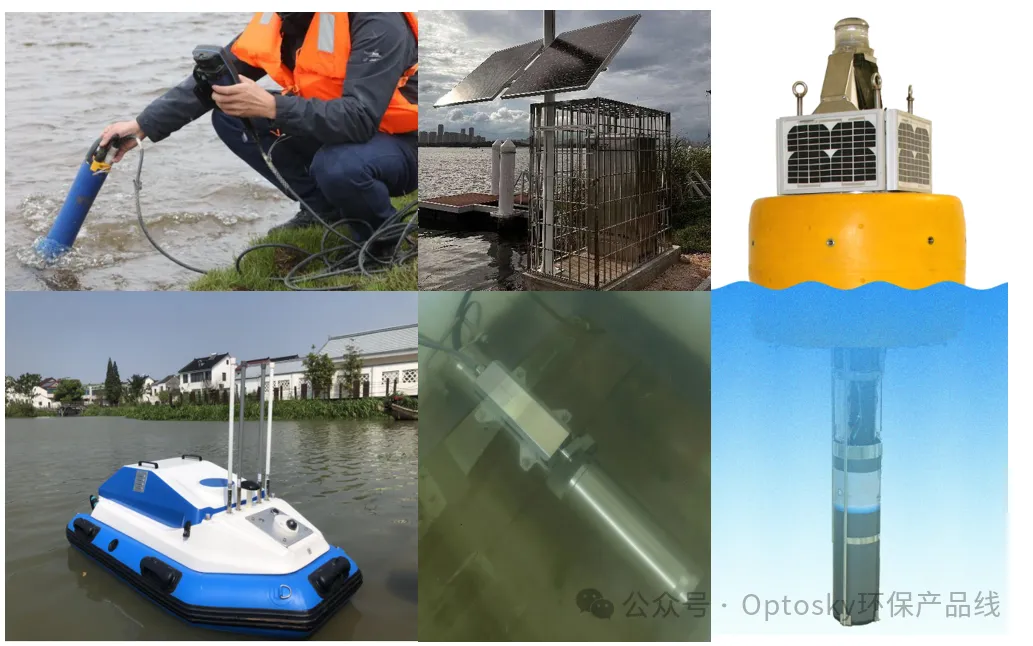

• The solution encompasses online monitoring, buoy monitoring, in-situ monitoring, mobile monitoring, hyperspectral remote monitoring, portable monitoring, and laboratory instruments, supporting regulatory bodies with extensive discharge management and traceability.

APPLICATION SCENARIOS

PRODUCT

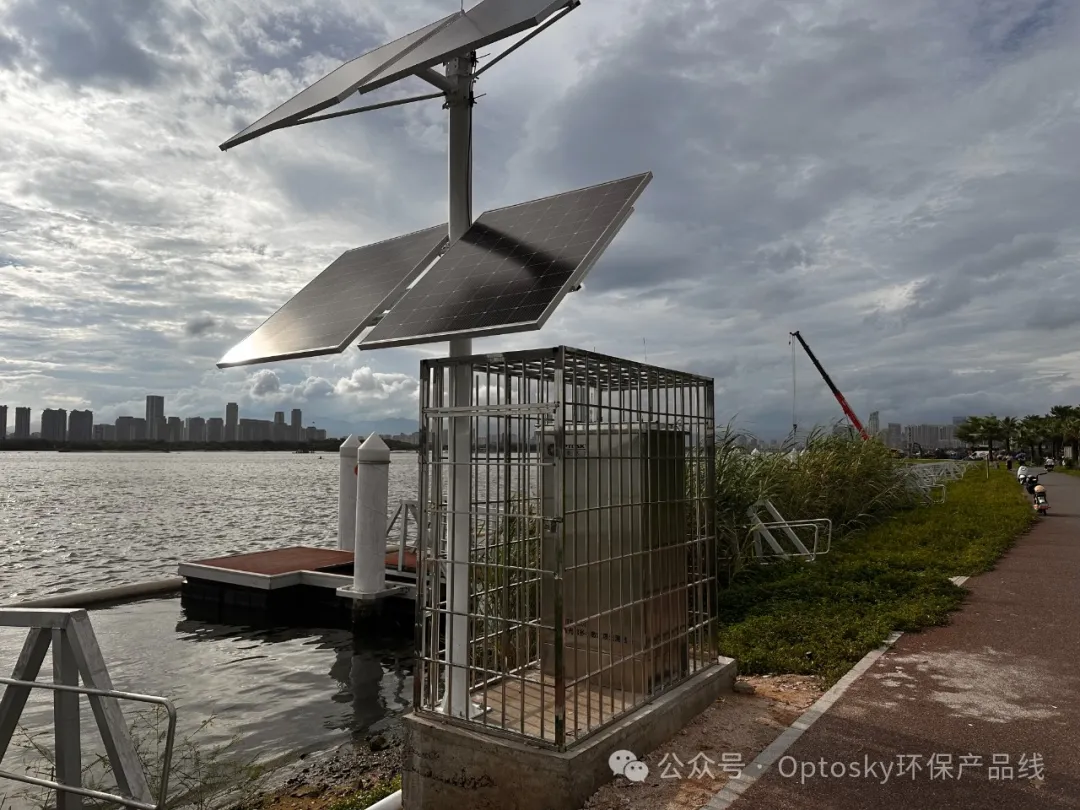

ATE2300 Full-Spectrum Multi-Parameter Water Quality Monitoring Station

The ATE2300 is a highly integrated, extraction-type micro monitoring station, consisting of a cabinet, sensor analysis unit, water intake unit, sampling unit, and data collection and transmission system. Parameters can be customized based on client needs, supporting RS485, NB-IOT, 4G/5G transmission. Designed for dense deployment, it fulfills demands for pollution tracing, water quality warnings, and big data applications.

Product Features

Compact, flexible, cost-efficient for real-time multi-parameter monitoring.

Modular design offers customizable parameter combinations.

Equipped with surge protection and solar power, ensuring stability.

Automated cleaning and detection features reduce maintenance needs.

ATE2000 Full-Spectrum Reagent-Free Water Quality Analyzer

Developed by OPTOSKY, the ATE2000 is a reagent-free, full-spectrum water quality monitor based on UV-visible full-wavelength absorption spectroscopy. Featuring an immersion design and automatic cleaning, it detects COD, TOC, BOD5, turbidity, color, TSS, nitrate, nitrite, total phosphorus, total nitrogen, ammonia, and temperature in real time.

Product Features

• In-situ monitoring without water extraction.
• No reagent use, low maintenance.
• Dual-beam compensation for real-time online calibration and high stability.

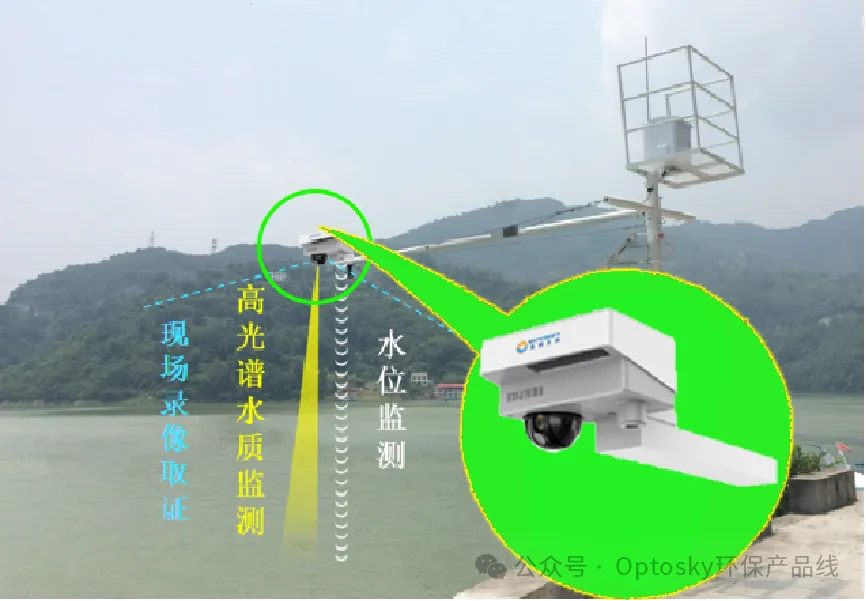

ATE7000 Hyperspectral Water Quality Multi-Parameter Real-Time Monitoring System

The ATE7000 uses advanced hyperspectral remote sensing technology, featuring a hyperspectral analyzer developed by OPTOSKY with deep learning inversion algorithms. It supports multi-parameter water quality data collection and real-time anomaly alerts with visual evidence. Data is uploaded to a cloud platform for real-time multi-point monitoring, historical review, and trend analysis.

 Product Features

Combines hyperspectral monitoring, water level measurement, and video recording.

Supports over 20 water quality indicators, including chlorophyll, total nitrogen, and total phosphorus.

Low-cost, easy deployment, requiring no station housing.

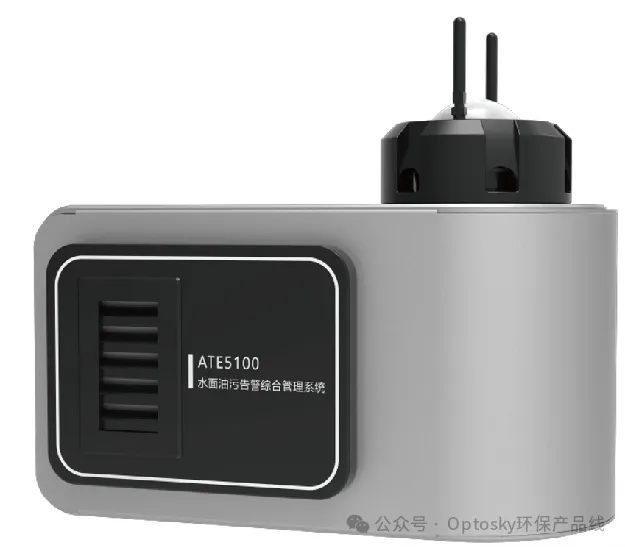

ATE5100 Surface Oil Pollution Alarm Management System

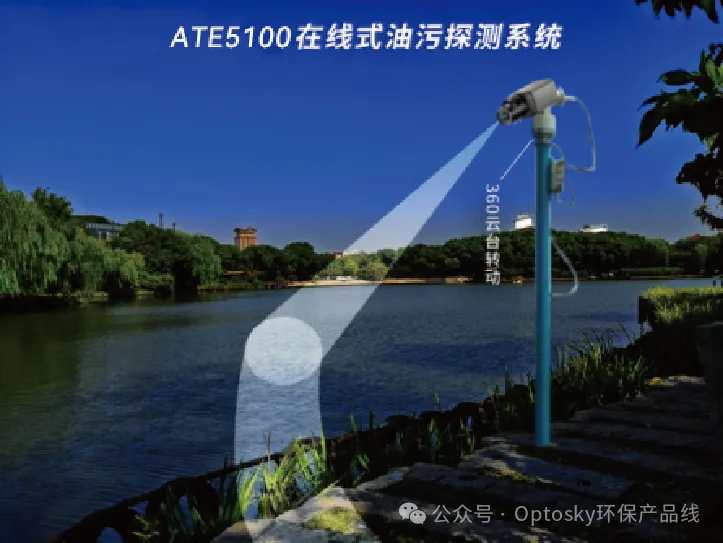

The ATE5100 utilizes internationally advanced high-frequency modulated laser-induced fluorescence high-speed imaging remote sensing technology, providing a new and more powerful solution for environmental monitoring of pollution conditions. The laser-induced fluorescence method leverages specific spectral characteristics to identify various types of released oil and assess the effects of weathering. Additionally, the ATE5100 integrates water level monitoring, on-site video recording, 5G transmission, GPS positioning, and other features, making it a uniquely innovative product. It can be mounted on poles for real-time monitoring of surface oil, making it an essential instrument for emergency departments to monitor oil pollution in real time. The ATE5100 also has an online scanning model that can be installed on tall poles for river section oil spill scanning, as well as peripheral oil scanning, effectively expanding the detection range.

Product Features

It features microsecond response time and an extremely low static detection threshold, effectively monitoring oil spills with micron-level precision, capable of detecting oil films thicker than 1μm.

With high accuracy, fluorescence serves as a molecular fingerprint, reducing false alarms from other floating debris on the water surface; fluorescence only appears in the presence of oil, ensuring no false detections.

The remote sensing capability allows for monitoring without direct contact with the water surface.

High-frequency modulated fluorescence enables both daytime and nighttime operations, unaffected by sunlight or other background light interference.

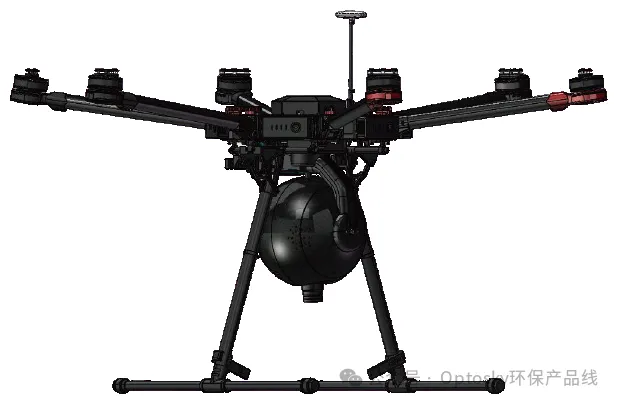

Marine Monitoring: ATE5000 UAV Fluorescence Imaging Oil Spill Remote Sensing System

The ATE5000 Oil Spill Alert System is OPTOSKY's latest generation of remote oil spill detection devices. The ATE5000 utilizes advanced high-frequency modulated laser-induced fluorescence high-speed imaging technology to provide a powerful new method for environmental monitoring. By analyzing the fluorescence characteristics of algae and oil spills, the system detects pollution levels in water. Laser-induced fluorescence leverages specific spectral features to identify various types of oil spills and assess weathering effects. The ATE5000 is also equipped with water level monitoring, on-site video recording, 5G transmission, and GPS positioning, representing a new, innovative solution.

Product Features:

High Accuracy: Fluorescence acts as a molecular fingerprint, appearing only in the presence of oil, reducing false alarms caused by other floating debris.

Micron-Level Precision: Detects oil films with a thickness greater than 1μm.

Day and Night Operations: High-frequency modulated fluorescence enables operation unaffected by sunlight or background light.

High Sensitivity: Detects oil content at ppm levels.

Direct Heat Map Output: Displays the distribution of oil spills.

Long Flight Time: Up to 1.5 hours.

Flight Altitude: Approximately 100 meters.

Scanning Area: 1 to 20 square kilometers.

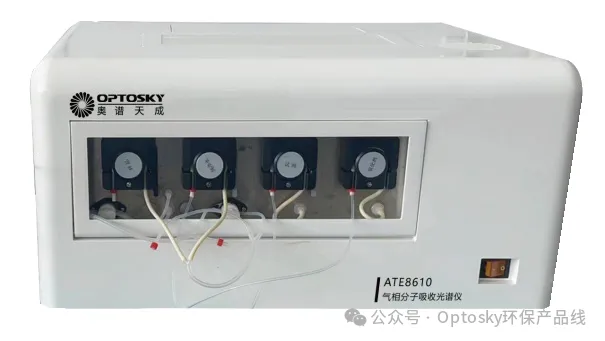

Laboratory Equipment: ATE8610 Gas-Phase Molecular Absorption Spectrometer

The ATE8610, developed by OPTOSKY (Xiamen) Photonics Co., Ltd., is a state-of-the-art water quality analyzer supporting the detection of ammonia nitrogen, Kjeldahl nitrogen, nitrite nitrogen, nitrate nitrogen, total nitrogen, and sulfides, meeting Ministry of Ecology and Environment standards as well as the latest national standard GB/T42027-2022. The ATE8610 uses an advanced optical system with imported deuterium light sources, aligning with national specifications for light sources.

This spectrometer utilizes a custom version of OPTOSKY's high-speed fiber optic spectrometer, transforming nitrogen and sulfur compounds into gaseous NO2, NO, or H2S through chemical reactions. The system applies the Beer-Lambert law and concentration inversion algorithms to calculate the concentrations of ammonia and sulfide in water samples.

Product Features:

Automated Sampling, Dilution, and Detection: Reduces manual error.

Advanced Cold Trap Technology: Ensures thorough gas-liquid separation without desiccants.

Automatic Dehydration System: Operates without desiccants throughout analysis.

Real-Time Monitoring: Monitors for leaks, temperature, and pressure to ensure safe operation.

Automatic Alarms for System Malfunctions: Shuts down sampling and heating systems while locking software in case of faults.

Easy Operation: Simple training enables skilled use.

High Throughput: Supports over 60 sample positions with sample volumes ≥50ml, processing each sample in 2-5 minutes.
