3D Fluorescence Spectroscopy: An Innovative Tool for Water Quality Management

Disinfection byproducts, explosives residues, pesticides, fertilizers, and heavy metals in tap water are invisible health threats. Studies show that 79% of people nationwide face the issue of drinking polluted water, and 80% of diseases are water-related. However, simple boiling cannot remove heavy metals, pesticides, and other toxins from water. Therefore, ensuring safe drinking water from the source has become a top priority.

Water Quality Fingerprint Pollution Tracing Technology is a breakthrough in water environment monitoring. It introduces fingerprint recognition from criminal investigation into the water environment field, effectively solving the problems of difficult and slow water pollution tracing.

Technical Principle and Monitoring Process

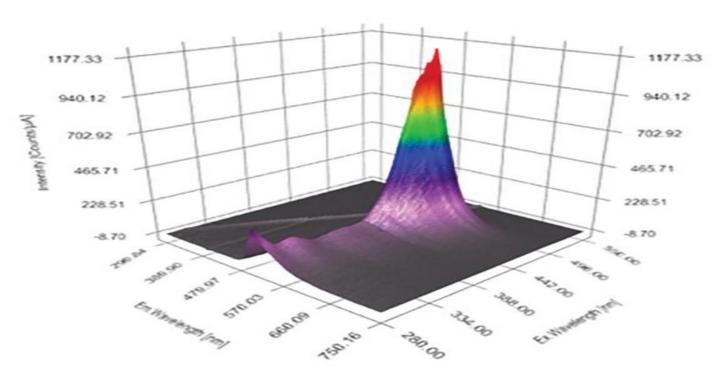

• 3D Fluorescence Spectrum：A spectral graph with emission wavelength on the horizontal axis, excitation wavelength on the vertical axis, and fluorescence intensity as contour lines.

• Water Quality Fluorescence Fingerprint: A three-dimensional fluorescence spectrum representing the composition of pollutants in a water sample.

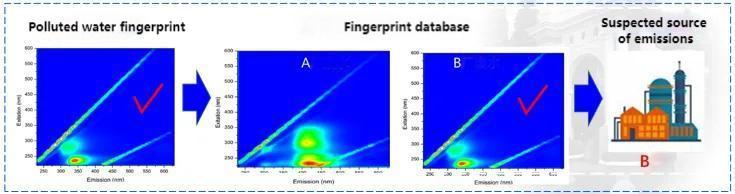

• Pollution Tracing: The process of detecting the water sample's fluorescence fingerprint, comparing it with known pollution sources, determining the path, verifying results, and identifying the pollution source.

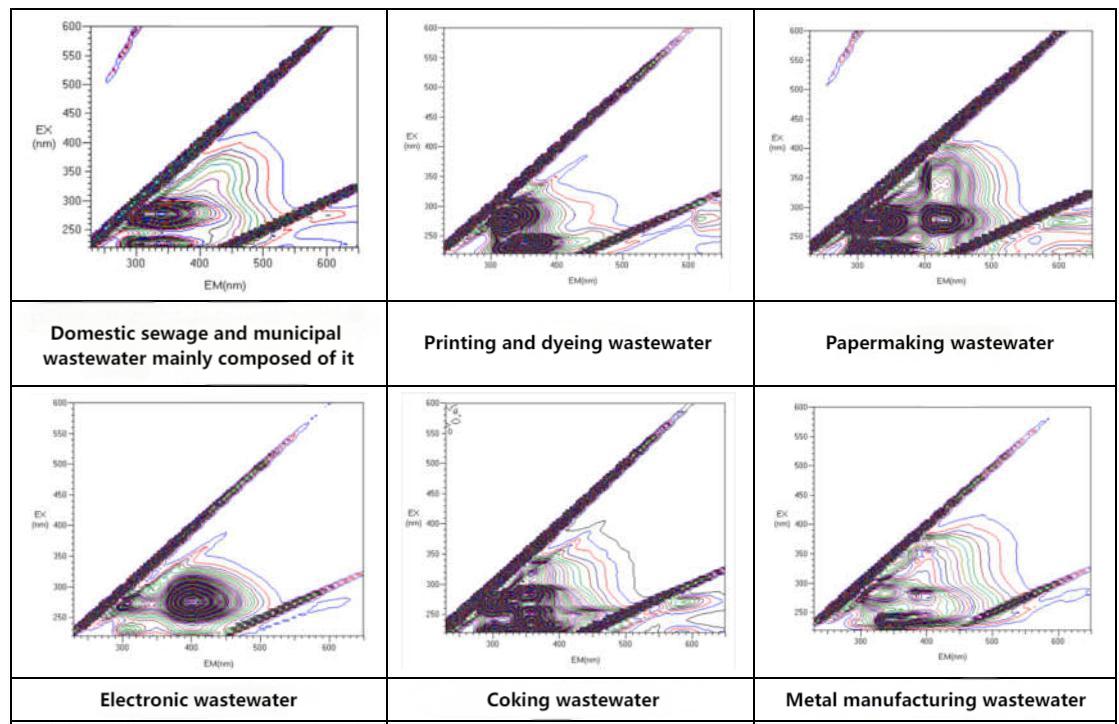

Common typical fluorescent fingerprints of water quality from pollution sources

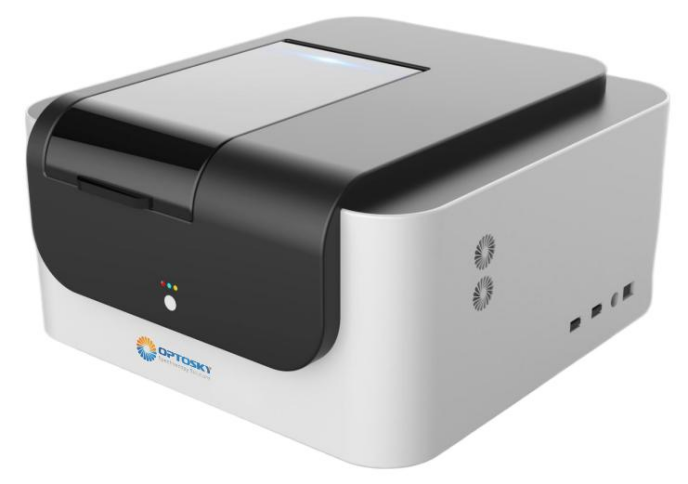

Core Instrument: Fluorescence Spectrometer

• Scientific Research
• Routine Analysis
• Quality Control

• Water Pollution
• Dissolved Organic Matter
• Production/Living Water Quality Testing
• Soil Pollution Detection
• Industrial water testing

• Nanomaterials
• Luminescent Materials - OLED

• Photochemical Reaction Monitoring
• Qualitative Analysis of Multicomponent Mixtures
• Chemical contamination analysis

• Cancer Cell/Bacteria Identification
• Biology/Life Sciences

• Analysis of Drugs, Hormones, Proteins, Vitamins, and DNA

• Equipped with a built-in rotary encoder and high-speed motor, ATF4500 achieves ultra-fast wavelength scanning with precise wavelength positioning.

• Enhanced excitation light energy, improved detector performance, and optimized signal processing contribute to advanced optical technology, resulting in higher sensitivity.

• The standardization function corrects fluorescence intensity variations due to factors like light source brightness, ambient temperature changes, and optical system conditions.

• The system can compile and export three-dimensional measurement data, facilitating detailed analysis.

• Utilizing a new xenon lamp and improved power supply, ATF4500 enhances light source brightness and effectively extends lamp lifespan.

• After lamp replacement, the system automatically adjusts the light source position to ensure optimal detection performance. The structured lamp holder design simplifies the replacement process.
