In daily user interactions, we often encounter questions like: "What exactly are 'Counts' on my spectrum's Y-axis?" or "How can I convert this raw data into useful measurements like irradiance or concentration?" Today, we’ll explore the core output of spectrometers – the Y-axis Counts – and how this raw signal can be scientifically "translated" into practical metrics such as irradiance, illuminance, color coordinates, absorbance, and transmission/reflection rates. Understanding this process unlocks the true power of spectral analysis.

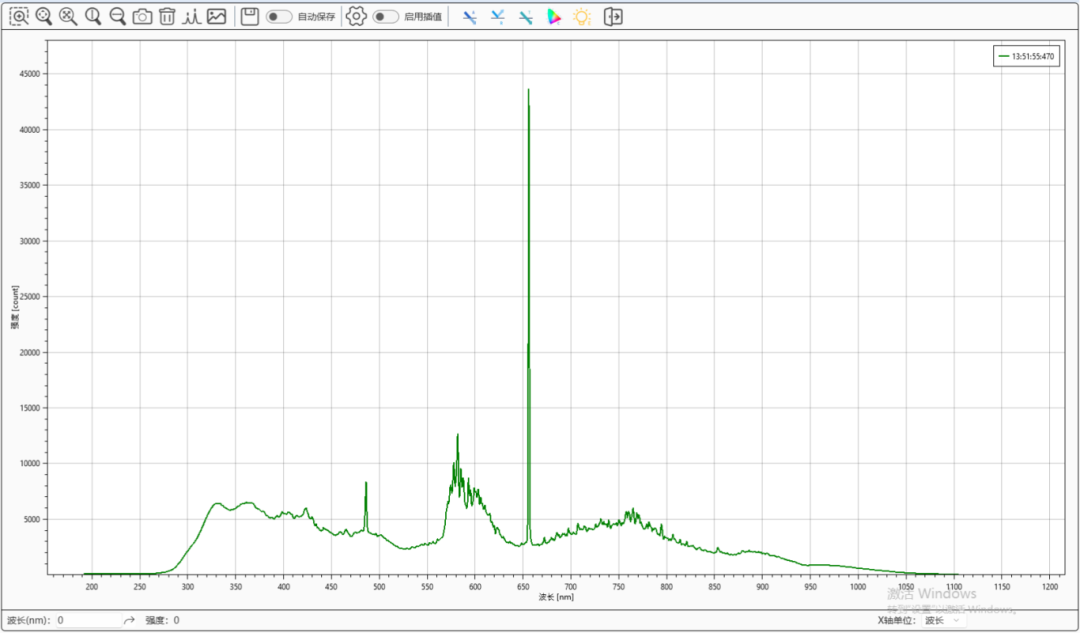

01 The Starting Point: Understanding Y-Axis Counts

Think of a spectrometer’s core sensor as an ultra-sensitive "photon counter." When light enters the spectrometer via optical fiber and is dispersed by a grating, different wavelengths strike individual sensor pixels. Counts represent the raw digital readout of the photoelectric signal generated by each pixel during exposure time.

Essentially, Counts are the spectrometer’s "native language," directly proportional to the number of photons reaching the detector (within the sensor’s linear response range). Longer exposure times or stronger light intensity result in higher Counts values.

Optosky Insight: Our spectrometers are engineered to deliver high signal-to-noise ratio and wide dynamic range in raw Counts, forming the essential foundation for all subsequent high-precision calculations.

02 Bridging Raw Signal to Physical Quantities

While raw Counts provide direct insight, they are influenced by instrument-specific factors (e.g., dark noise, pixel response variations) and cannot be directly used for cross-instrument comparisons or physical analysis. Calibration is key to transforming Counts into meaningful, standardized data.

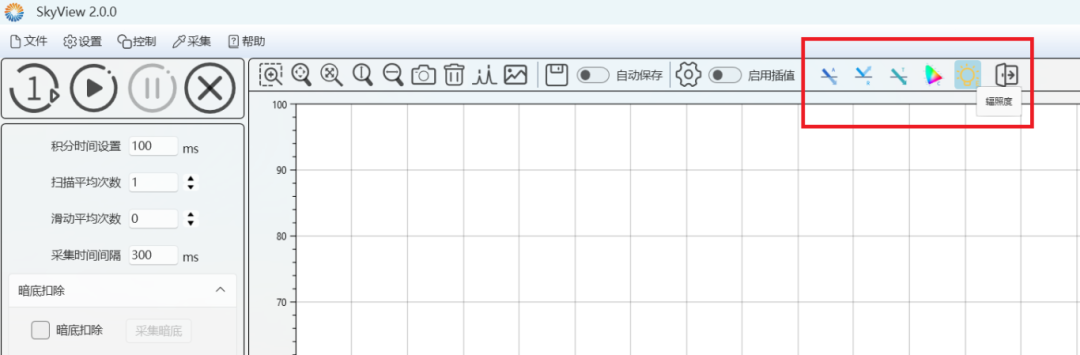

1. Radiometric & Photometric Quantities: Irradiance & Illuminance

Irradiance: A pure physical quantity representing radiant power per unit area (typically W/cm²·nm). By calibrating the spectrometer with a standard irradiance lamp, we derive a conversion factor to translate Counts into absolute irradiance, enabling accurate optical power measurements.

Illuminance: A photometric quantity aligned with human visual perception, indicating luminous flux per unit area (unit: Lux). It is calculated by weighting irradiance data with the photopic visual function V(λ) and integrating across the spectrum – essentially answering "how bright does it appear to the human eye?"

Relationship:

Counts → (Spectral Response Calibration) → Irradiance → (V(λ) Weighting & Integration) → Illuminance

2. Color Science: CIE Color Coordinates

Color may be subjective, but it can be precisely quantified. The CIE 1931 XYZ color system serves as the universal standard for color representation.

CIE Color Coordinates: By weighting relative spectral data (either calibrated irradiance or dark-corrected Counts) with standard CIE color-matching functions and performing normalization, we obtain familiar (x, y) or (x, y, Y) color coordinates. This process accurately quantifies the "color perception" of any light source or object.

Relationship:

Relative Spectral Data → (CIE Color-Matching Functions & Calculation) → CIE XYZ → (Normalization) → Color Coordinates (x, y)

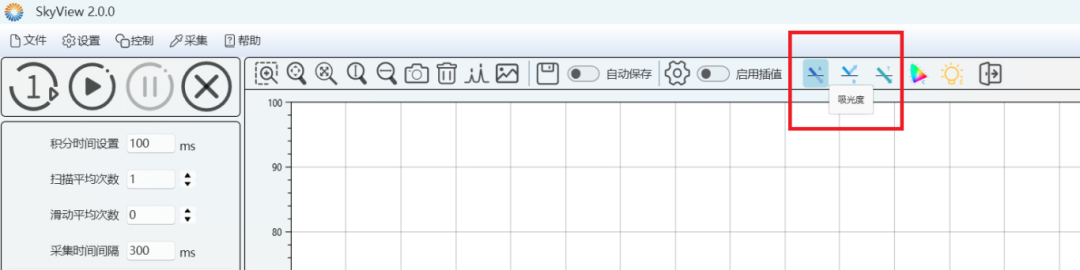

3. Composition Analysis: Absorbance, Transmission & Reflection

Absorbance and transmission/reflection metrics are central to applications in chemistry, biology, and material science.

Transmission/Reflection Rate: Dimensionless ratios describing a sample’s ability to transmit or reflect light. Measurements require collecting reference spectra from standards (e.g., blank solvent for transmission, standard white board for reflection) and sample spectra. The formula: T or R = (I_sample / I_reference) × 100%. This calculation effectively cancels out variations in the light source and spectrometer response, ensuring comparable results.

Absorbance: Based on the Lambert-Beer law, absorbance directly correlates with sample concentration. The formula: A = -log₁₀(T) = log₁₀(I_reference / I_sample). Since A is derived from T, which itself comes from the ratio of two Counts values, stable, high-SNR Counts are crucial for accurate absorbance and concentration results.

Relationship:

Counts_reference & Counts_sample → (Ratio Calculation) → Transmission (T) → (Logarithmic Calculation) → Absorbance (A)

Conclusion

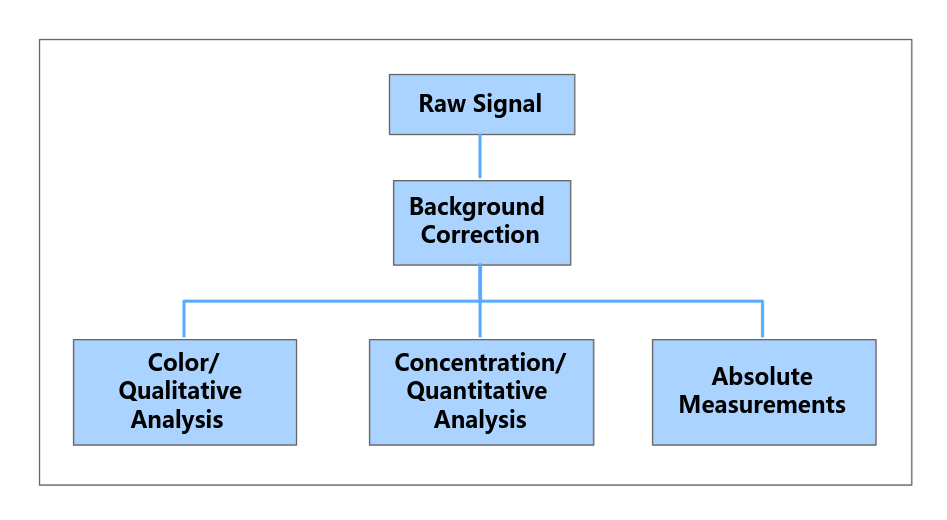

We can visualize this process as a clear, structured data pipeline:

Raw Signal Acquisition: Spectrometer outputs Raw Counts.

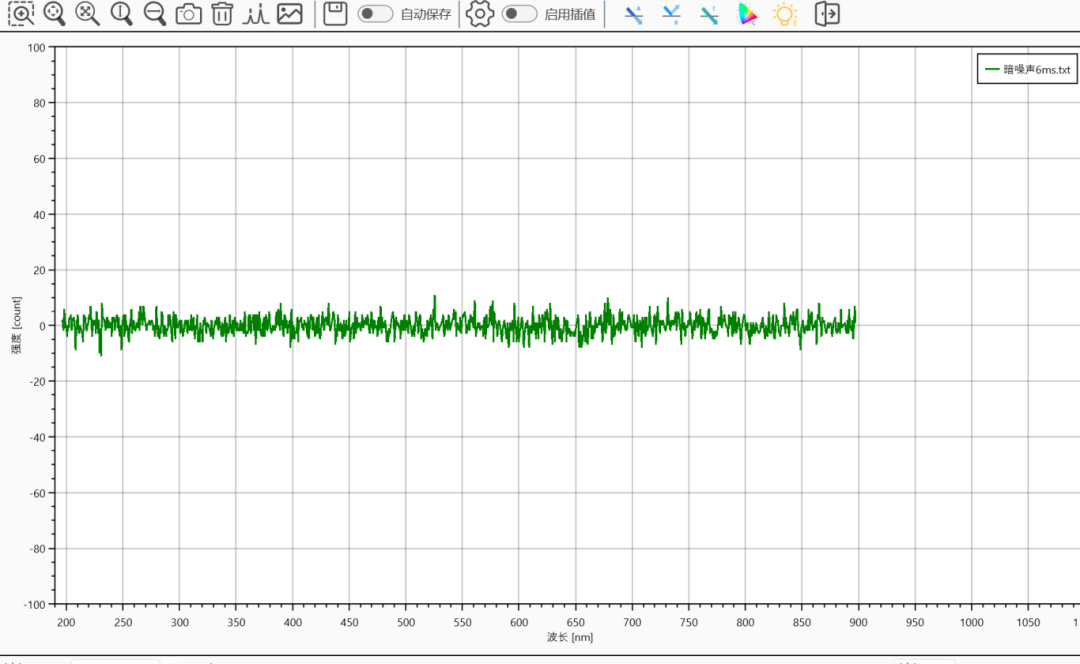

Background Correction: Corrected Counts = Raw Counts - Dark Counts (important step).

Application-Specific Processing:

Color/Qualitative Analysis: Use Corrected Counts as relative spectral data to compute CIE Color Coordinates.
Concentration/Quantitative Analysis: Compare Corrected Counts of sample and reference to determine Transmission/Reflection Rate, then derive Absorbance.
Absolute Measurements: Apply spectral response calibration to Corrected Counts to obtain Irradiance, which can further be converted to Illuminance.

From a high-precision optical platform delivering stable Counts, to tailored calibration for your specific application, Optosky spectrometers – coupled with intuitive software – streamline the entire journey from "photons to data to insight." This allows you to focus entirely on your sample analysis, without being burdened by complex underlying conversions.
