Application | UV Spectroscopy Reveals Adsorption Dynamics of Xanthate on Chalcopyrite
2025-06-09
The Flotation Enigma
Xanthates (ROCSSM, where M=alkali metal) are pivotal collectors in sulfide mineral flotation. Understanding their adsorption behavior on chalcopyrite surfaces is critical for optimizing copper-molybdenum separation processes.
Key Detection Method

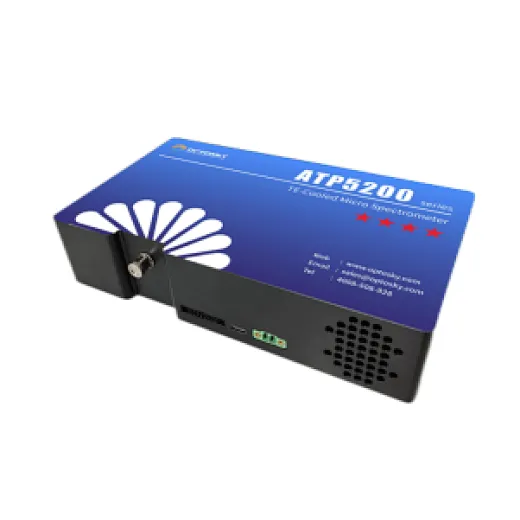

UV-Vis spectroscopy offers rapid, sensitive, and cost-effective analysis of xanthate adsorption. This study employs the Optosky ATP5200P UV-enhanced spectrometer (190-1100 nm range) featuring:
-
2048-pixel back-illuminated CCD
-
Quantization noise <30 counts
-
Adjustable resolution (0.1-3 nm)
-
Detection limit: 0.032 mg/L xanthate
Experimental Design
Methodology

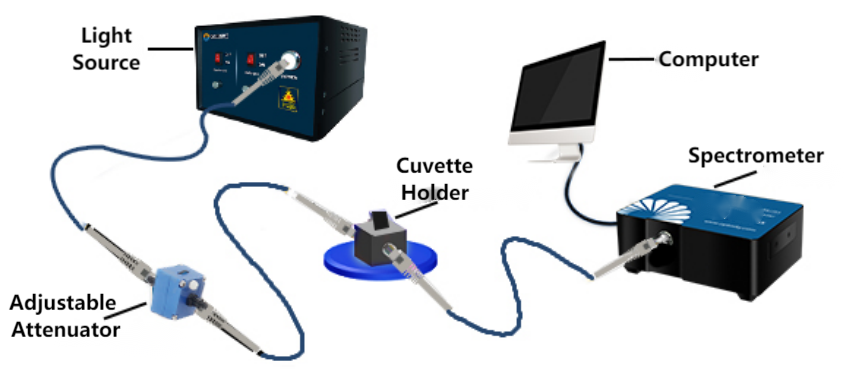

Fig. 1 Optical Configuration
1. Wavelength Selection:
-
Xanthate exhibits characteristic peaks at 226.5 nm and 300 nm
-
300 nm identified as optimal detection wavelength (higher sensitivity)

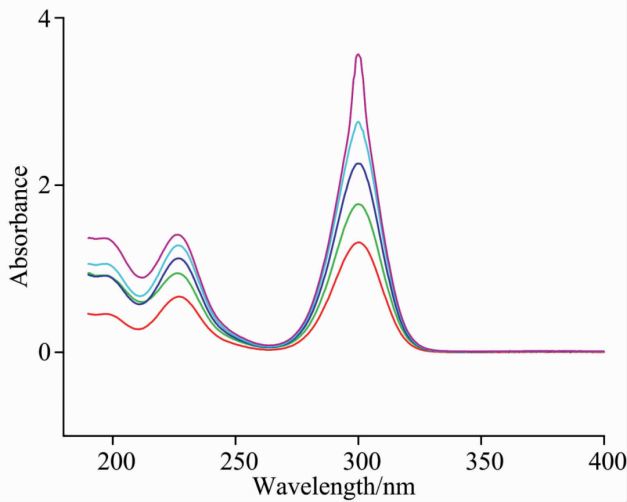

Fig.2 Xanthate Absorbance Spectrum
2. Standard Calibration:
-
Linear correlation (R²>0.99) between concentration and absorbance at 300 nm

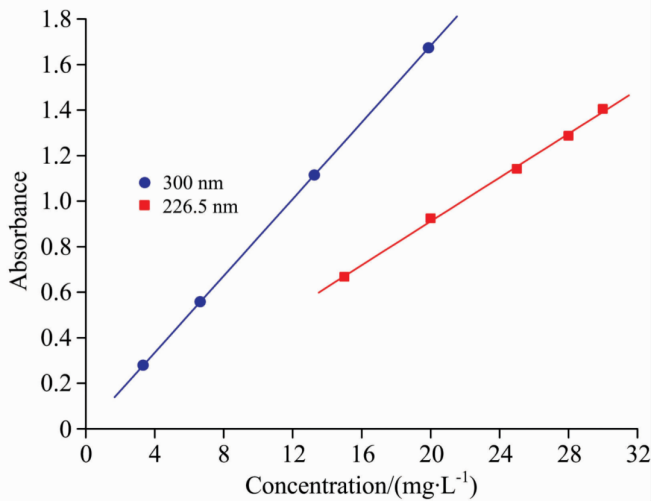

Fig.3 Xanthate Calibration Curve
3. pH Optimization:
-
Maximum adsorption at pH 9
-
Decomposition observed below pH 3

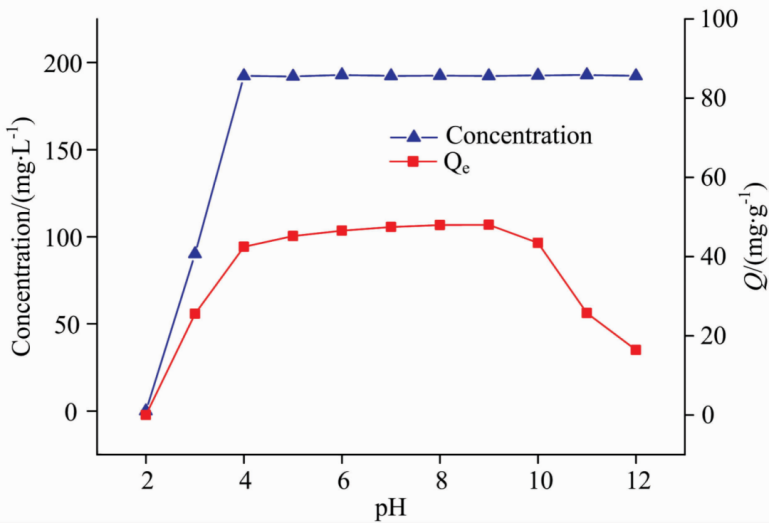

Fig.4 pH Impact on Adsorption
4. Temperature Response:
-
Minimal effect between 288-303K
-
Slight adsorption increase at higher temperatures

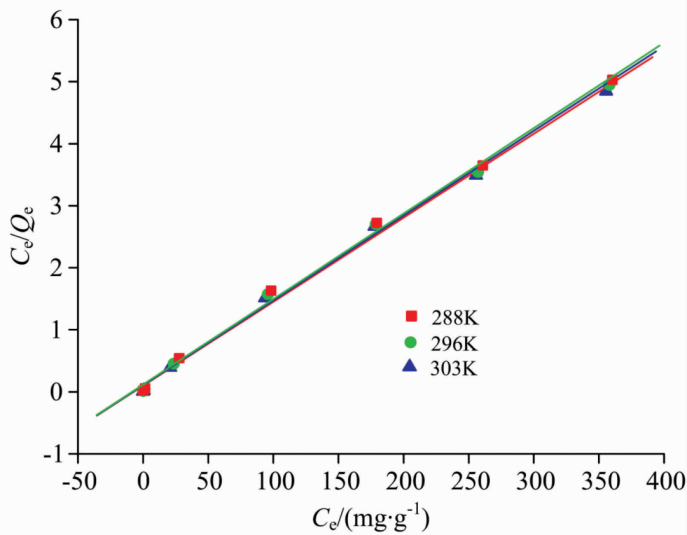

Fig.5 Fitting curves of xanthate adsorption by chalcopyrite under different temperature conditions
Technical Advantages of ATP5200P
|
Features
|
Benefit
|
|
Broad spectral range (90-1100 nm)
|
Simultaneous UV-Vis-NIR monitoring
|
|
High sensitivity
|
Detects 0.032 mg/L xanthate
|
|
5 ms integration time
|
Real-time adsorption kinetics tracking
|
|
Modular interfaces (SMA905/ free-space)
|
Adapts to lab or field conditions
|
Industrial Validation
-
Online monitoring: Enables precise xanthate dosing in flotation plants
-
Process optimization: 18% increase in copper recovery at pH 9
-
Cost reduction: 22% decrease in reagent consumption
Conclusion
UV spectroscopy provides fundamental insights into xanthate-chalcopyrite interactions. The ATP5200P spectrometer delivers:
-
Accurate adsorption thermodynamics/kinetics data
-
Real-time process control capability
-
Adaptability across research and production environments
