Overview
The ATP8000 Series is a fiber optic spectrometer series designed by Optosky specifically for the near-infrared (NIR) spectrum. Different models use various types of detectors and optical/electrical circuit designs to accommodate different spectral ranges. With semiconductor cooling technology, the spectrometers can operate in a set constant temperature environment (as low as -30ºC), significantly reducing sensor noise.
At the same time, Optosky has custom-designed ultra-low noise CCD signal-correlated double sampling (CDS) circuits for the ATP8000 series, further reducing the spectrometer noise level. The quantization noise level is less than 5 counts. The ATP8000 series offers a variety of models for customers to choose from, meeting the needs of various complex application scenarios.


Features

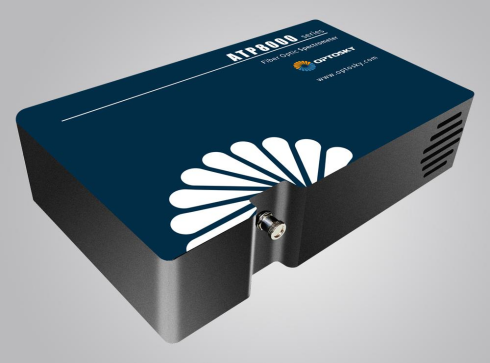

ATP8000/-T3：

• 512-Pixel Cooled Linear InGaAs Detector
• Spectral Range: 900-1700nm (Customizable upon request)
• Two cooling temperature options: -15℃ and -30℃
• ATP8000GC (100% Made in China) option available.

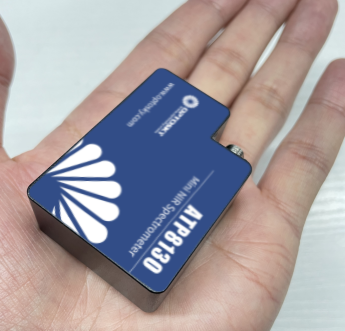

ATP8130：

• Short-Wave Infrared Band 900-1700nm
• Compact Size, High Resolution
• 256-Pixel Cooled Linear InGaAs Detector
• Spectral Range: 900-1700nm (Customizable upon request)
• Compact Size, High Resolution
• FBG Communication Band Model Available.

ATP8200

• Based on ATP8000, Patent Optical Path Design, 25% Improved Resolution Compared to Similar Products
• 512-Pixel Cooled Linear InGaAs Detector
• Wider Spectral Range, Up to 900-2600nm
• Higher Signal Sensitivit

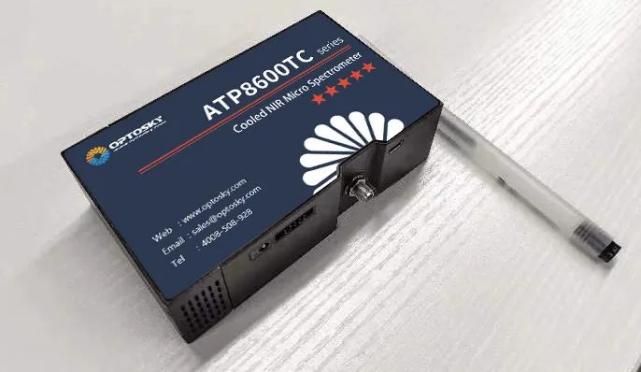

ATP8600/TC

• High Cost-Performance
• Miniature Fiber Optic Spectrometer, Compact Size
• 256/512-Pixel InGaAs Linear Array Detector, Uncooled
• Cooled Model Available
• FBG Communication Band Model Available
• Integrated Design with Reliable Mounting and Cooling Solutions to Improve Measurement Reliability

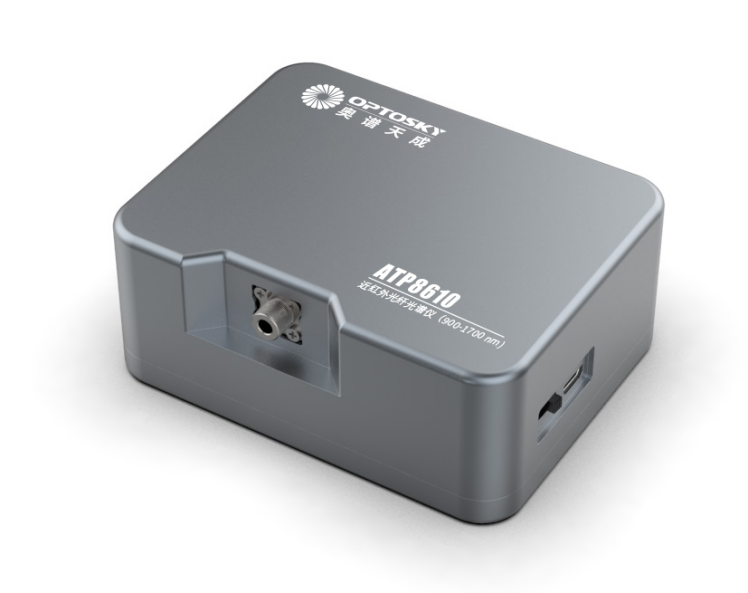

ATP8610

• Spectral Dispersion Method: Microelectromechanical System (MEMS) Scanning Spectroscopy
• 1024-Pixel Low-Noise InGaAs Detector
• High Cost-Performance
• Short-Wave Infrared Band

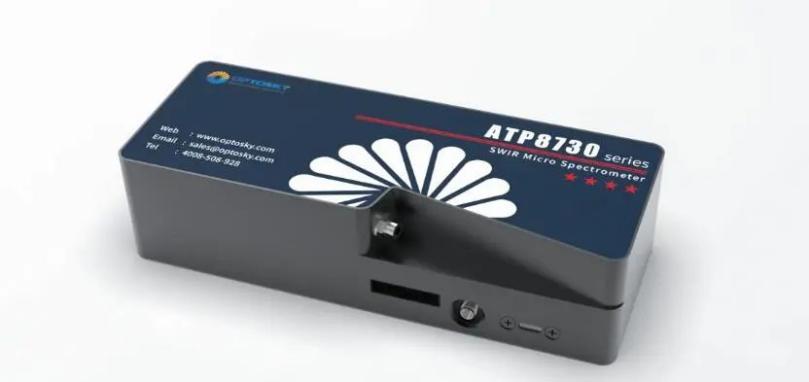

ATP8730

• 1024 or 2048-Pixel InGaAs Detector
• Ultra-High Frame Rate: 10 KHz
• Maximum Spectral Range: 900-1700nm (Customizable within the range)
• Ultra-High Resolution: 30 pm (Dependent on incident slit width)

Application

• FBGA Fiber Optic Modulation and Demodulation
• Laser Wavelength Monitoring
• Raman Spectroscopy
• Food Sorting
• Wastewater Detection
• Moisture, Protein, Fat, and Fiber Detection in Crops
• Paper Sorting
• Online Monitoring of Traditional Chinese Medicine Production
• Solar Panel Testing

Measured Spectral：

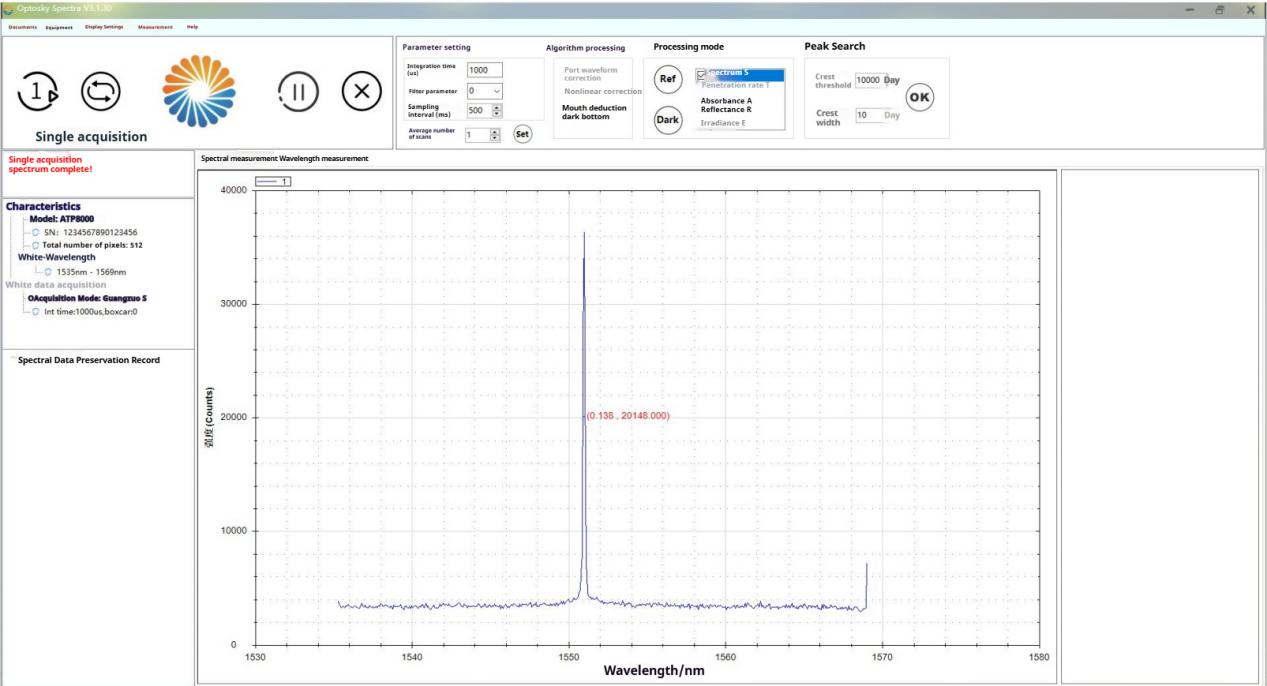

Spectral Range: 1535 nm - 1569 nm; 0.138 nm @ 1550 nm  ATP8000 Test Spectrum - 1550 nm Laser

Spectral Range: 940 nm - 1660 nm; 50 μm Slit; 6.84 nm @ 1550 nm  ATP8000 Test Spectrum - 1550 nm Laser

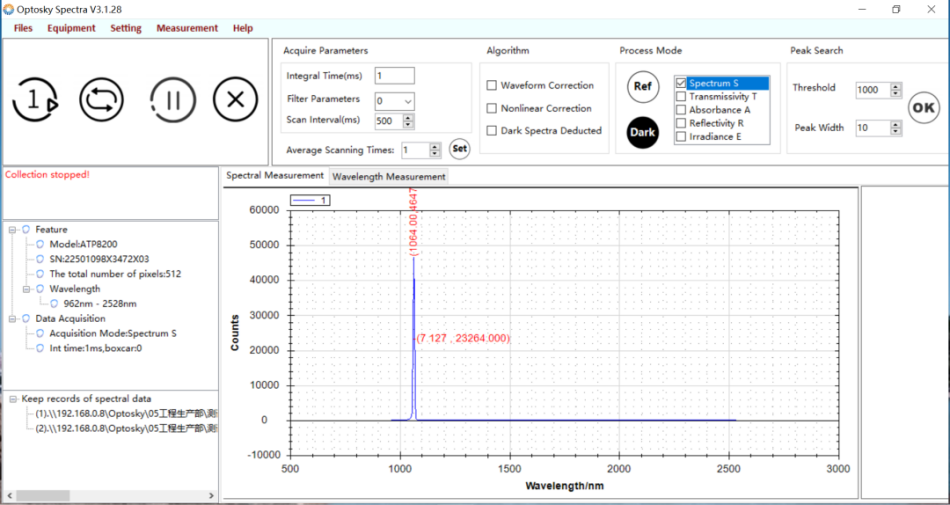

Spectral Range: 962 nm - 2528 nm; 50 μm Slit; 7.127 nm @ 1064 nm  ATP8200 Test Spectrum - 1064 nm Laser

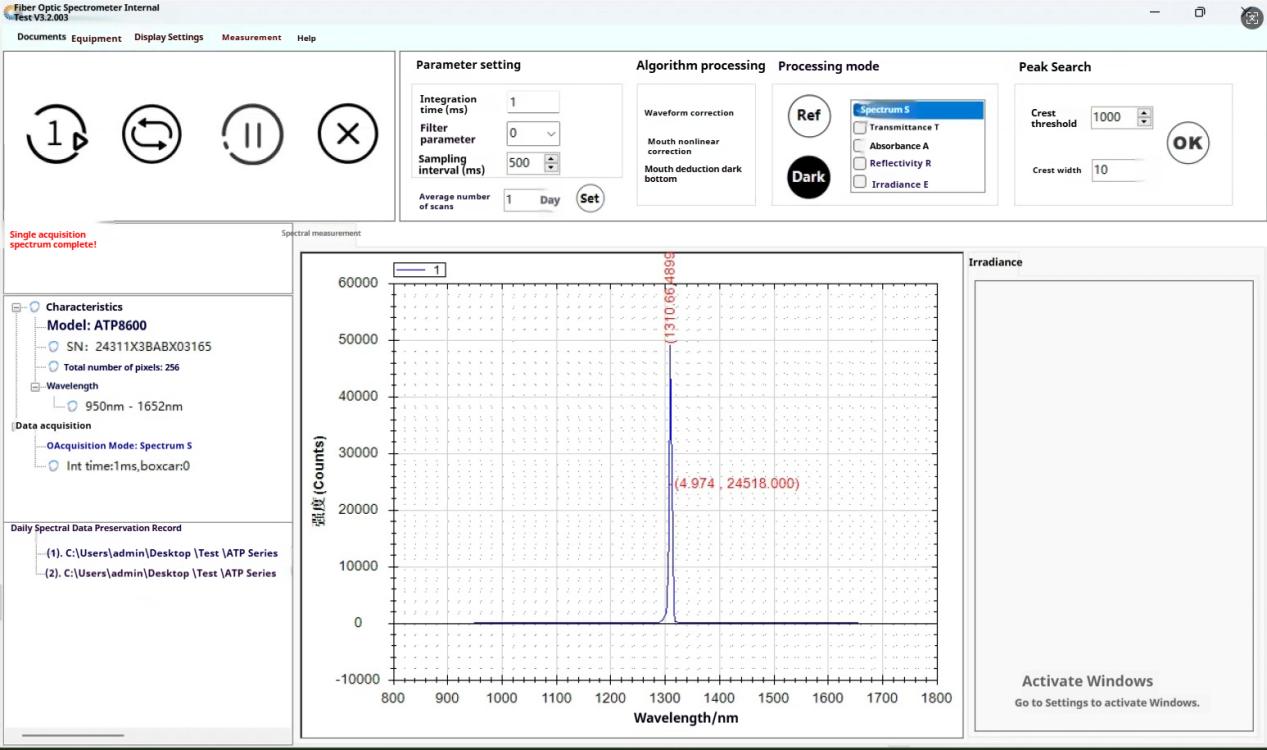

Spectral Range: 950 nm - 1652 nm; 25 μm Slit; 4.974 nm @ 1310 nm  ATP8600 Test Spectrum - 1310 nm Laser

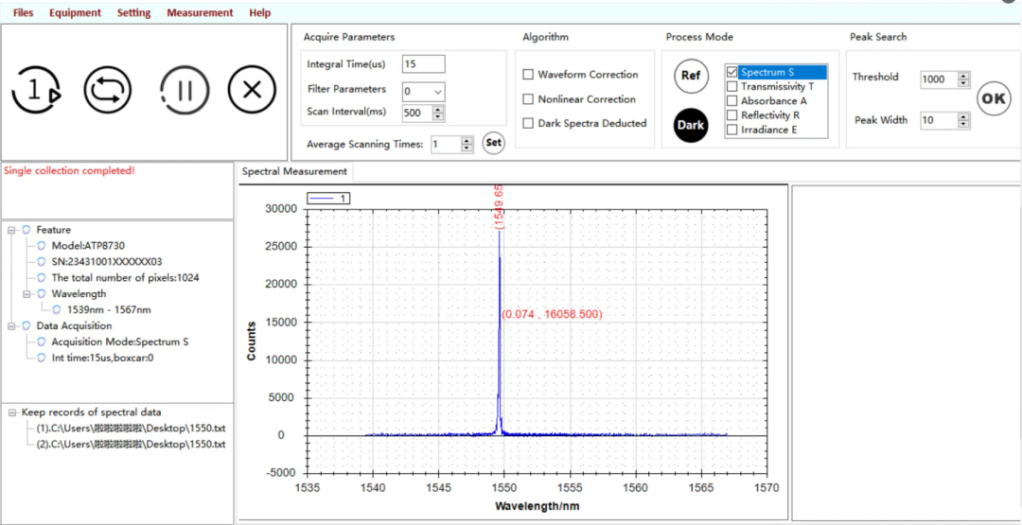

Spectral Range: 1539 nm - 1567 nm; 0.074 nm @ 1550 nm ATP8730 Test Spectrum - 1550 nm Laser

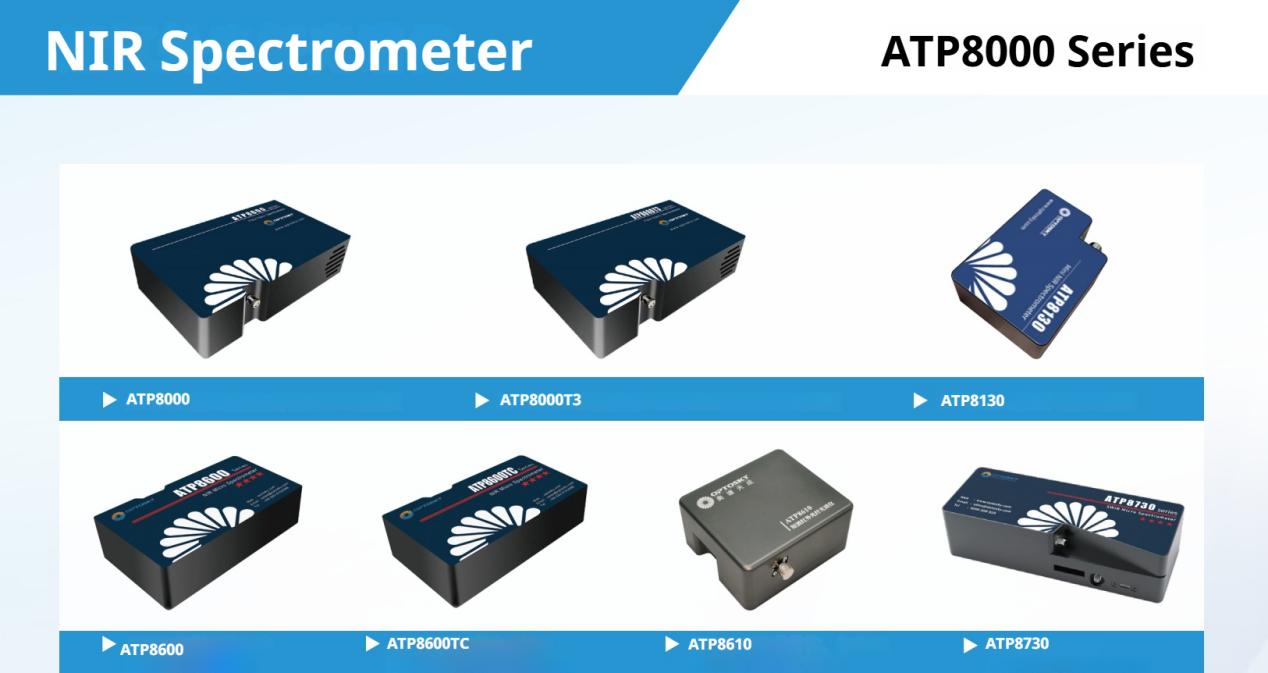

The ATP8000 Series is a fiber optic spectrometer product specifically designed for the near-infrared band, developed based on years of experience and technological accumulation in spectrometer research and development. This product series offers a full range of models, is widely applicable, and provides exceptional cost-performance, making it suitable for a variety of near-infrared applications.
