Product Introduction | ATP1000 Series Spectrometer

The ATP1000 series spectrometer launched by Optosky is ultra-thin, ultra-light, ultra-miniature, and low power consumption. It is a miniature spectrometer that can adapt to various environmental uses such as online testing.

Features

• Ultra-thin, ultra-light, ultra-miniature, low power consumption
• UV-enhanced linear CMOS
• 190-1100nm wavelength range
• 0.2-5nm spectral resolution
• Minimum exposure time of 1ms
• OEM support

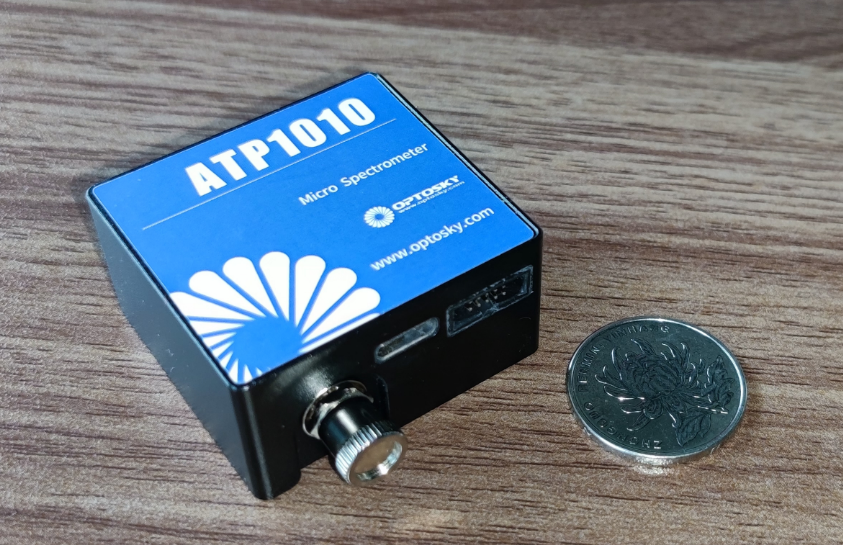

ATP1010:The ATP1010 adopts a UV-enhanced 512-pixel linear CMOS, with nearly 20 times higher response in the UV wavelength range compared to conventional CMOS. It supports testing across a wavelength range of 190-1100nm. The CMOS detector's exposure time can be controlled to under 1ms, allowing customers to flexibly set integration times between 1ms and 10 minutes to meet the needs of various applications.

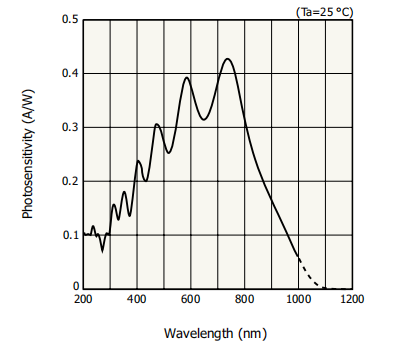

Figure 1. Detector Response Curve

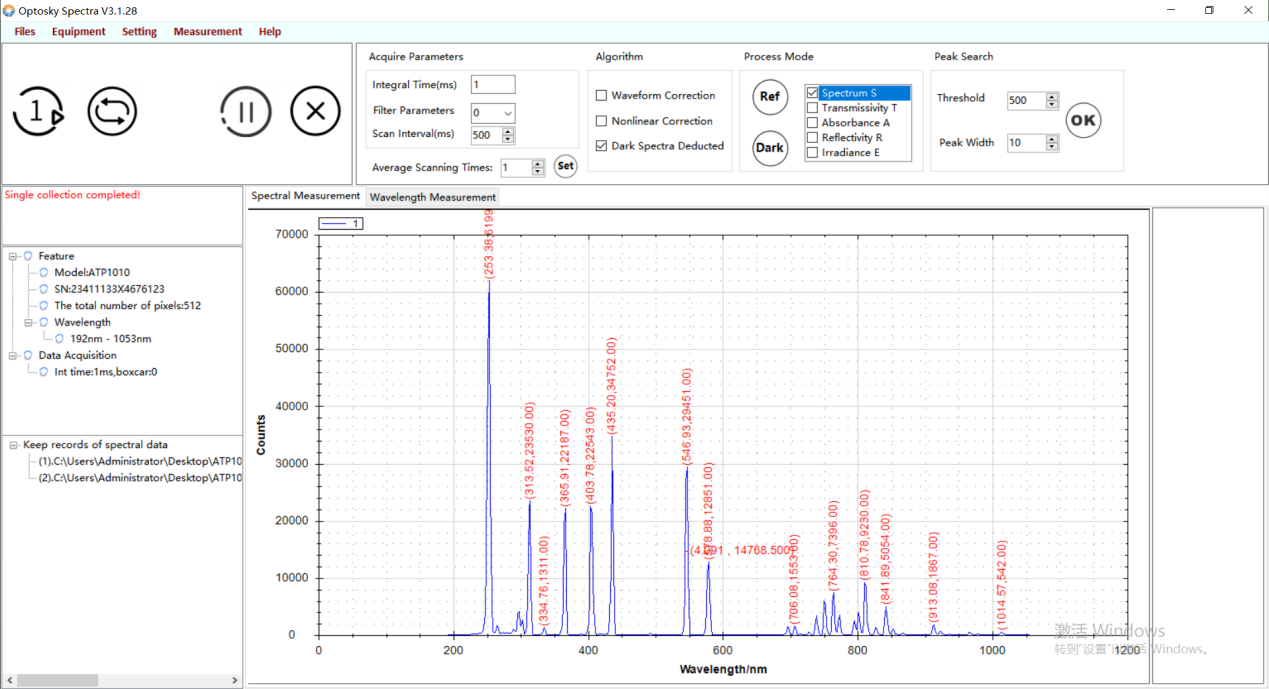

Figure 2. ATP1010 Spectrometer - Resolution Test (Mercury-Argon Lamp Spectrum)

ATP1030：

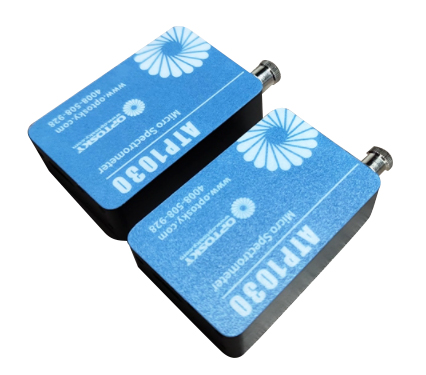

ATP1030 is developed based on the research experience of Optosky's ATP1010 model. It adopts a non-crossed high-resolution optical path and incorporates a UV-enhanced 1024-pixel linear CMOS. While supporting tests in the 190-1100nm wavelength range, it provides higher resolution and improved stray light performance. The specifications of the ATP1030 are detailed below.

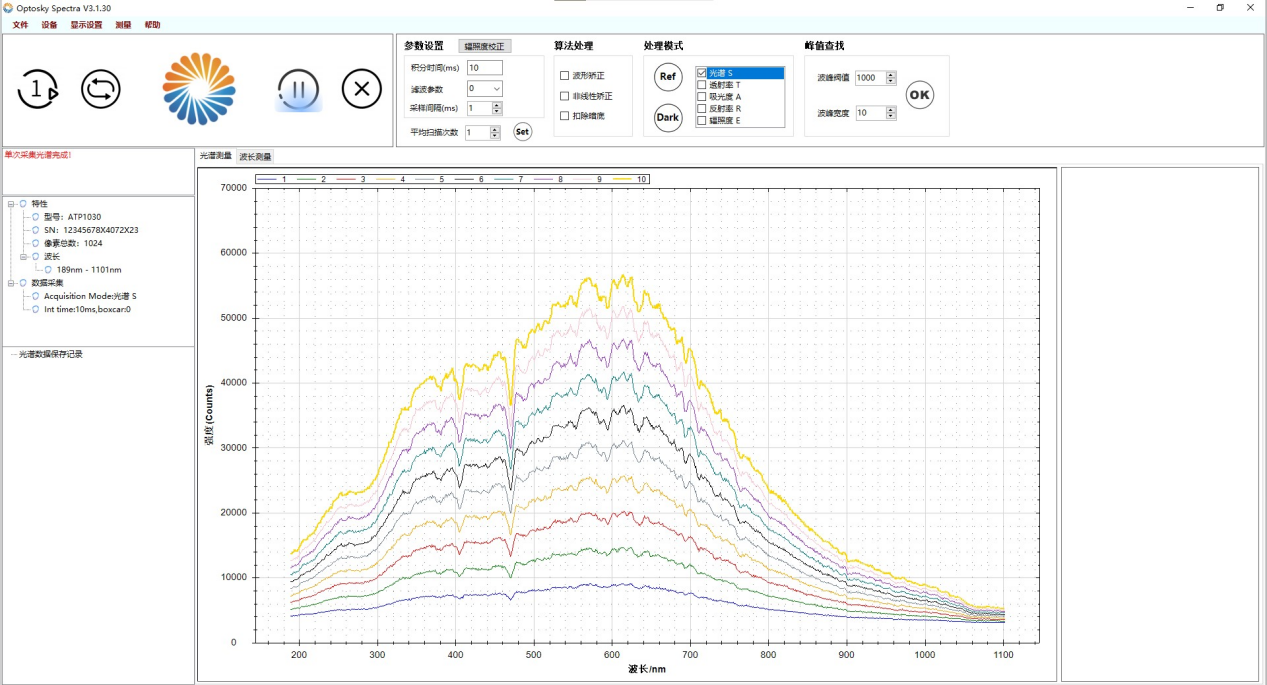

ATP1030 Spectrometer - Response Linearity Test Curve

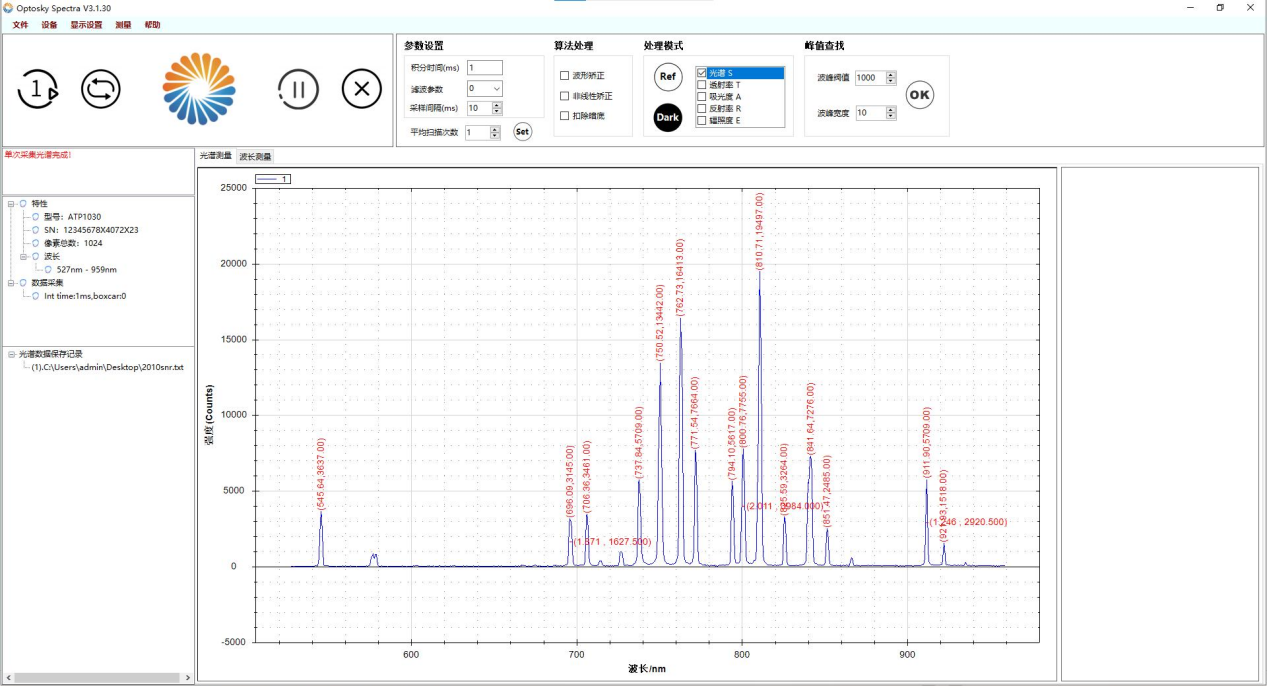

ATP1030 Spectrometer - Resolution Test

Specifications

Applications

• Online multi-parameter water quality analyzers
• LED sorting machines
• Color detection
• Micro, rapid spectrophotometers
• UV flue gas analyzers
• Spectral analysis, radiometric spectral analysis, spectrophotometric analysis
• Fluorescence spectrometers
• Reflection and transmission spectrum detection

The ATP1000 series offers various slit, grating, and filter options to suit different applications. Optosky also provides customized options for OEM customers.
For more details or inquiries, feel free to contact us anytime!
