What MIR ATR Spectrometer can measure?

What is MIR ATR Spectrometer?

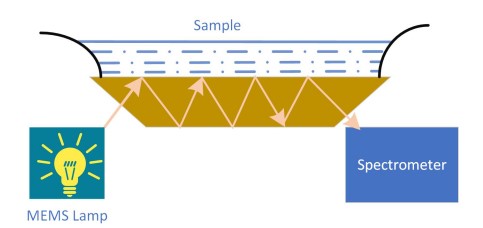

ATR9000 is developed by Optosky（Attenuated Total Reflection, ATR）, built-in MEMS Infrared Source, it employs Pyroelectric linear array sensor, in the ZnSe high performance material window measure ATR spectrum. Optosky designs Ultra-low noise CCD signal processing circuit, results in reducing sensor noise, improving SNR( 2 times higher SNR than competitors). Higher measuring reliability ensures results can not change with ambient temperature. ATR9000 fit to measure samples in powder, fluid, easy-to-operate, it takes just few steps to complete measurement.

What are its features?

• Spectral range: 2.5-5um(4000-2000cm-1) or 5.5-11μm（1818-909 cm-1）
• ​​MIR( Attenuated Total Reflection, ATR) spectrometer.
• Detector: Linear pyroelectric arraysensors.
• ATR window material：ZnSe.
• Detector pixel：256 pixels.
• Ultra-low noise CCD signal processing circuit.
• Built-in MEMS electricalinfrared source.
• Detection time：30s（typical）.
• 16 bit,500 KHz ADC.

What are its application field?

• Food safety
• Dye analysis
• Material Identification
• Authentication anti-counterfeiting
• Oil analysis
• Drugs, Chemicals, Combustible & Explosives Analysis

What its performance parameters?

• Optical resolution: 20nm-35nm
• size: 106x85x30 mm3
• weight: 500g
• Data output: USB 2.0.
• Power supply：5V DC，
• Working current ：<2A.
• Dynamic range: 75 dB
