Product Introduction
The ATE2000 Reagent-Free Full-Spectrum Water Quality Monitoring Instrument is based on UV-Visible full-wavelength absorption spectroscopy technology. By utilizing dual-beam compensation and combining it with concentration inversion algorithms, it analyzes and determines the content of target components. It can monitor multiple water quality parameters in real-time, including typical ecological indicators such as COD, TOC, BOD5, turbidity, chromaticity, TSS, nitrates, nitrites, total phosphorus, total nitrogen, ammonia nitrogen, and temperature.
The product adopts a rod-shaped structure and an open-flow cell, equipped with an automatic cleaning device. It can be directly immersed in water to achieve in-situ online water quality monitoring. The testing process does not require chemical reagents, minimizing maintenance work and overcoming the drawbacks of traditional reagent-based photoelectric colorimetric instruments, such as the need for regular reagent replacement, long measurement times, high failure rates, and the requirement for dedicated station construction.

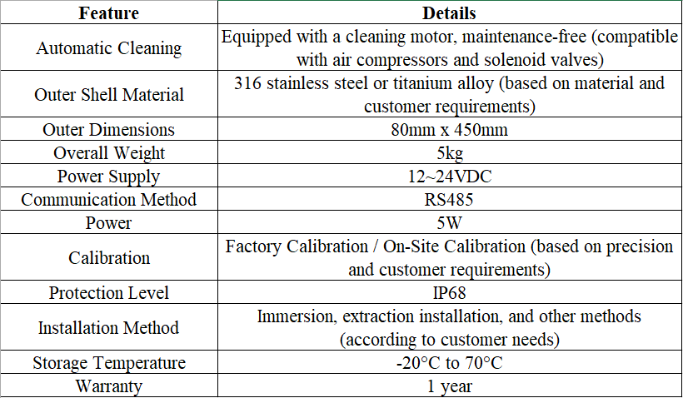

Application Parameters
Actual Product Display
- Stainless steel handle

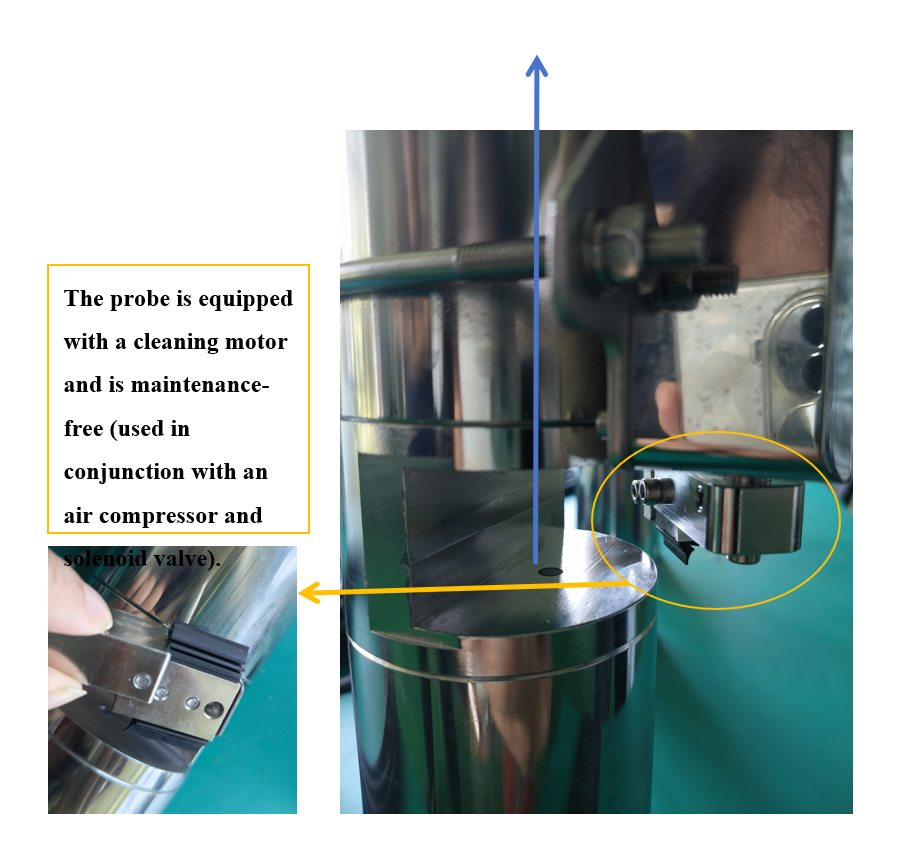

- Cleaning motor
- Sensor
- Controller (optional)

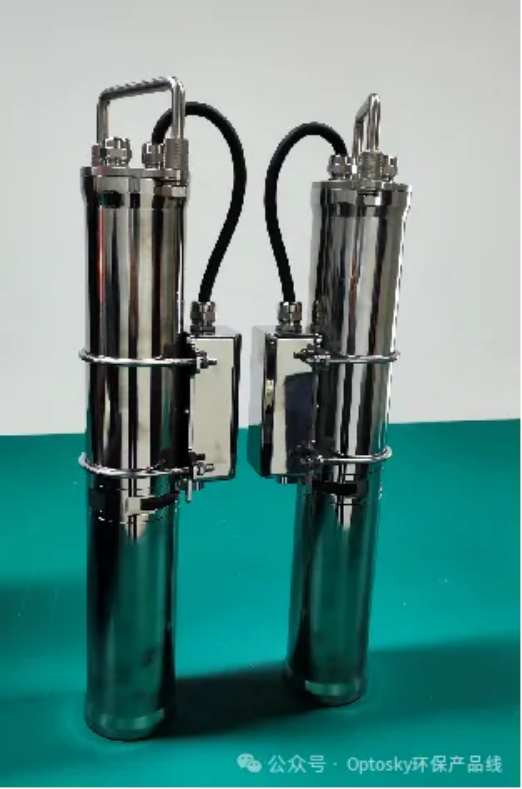

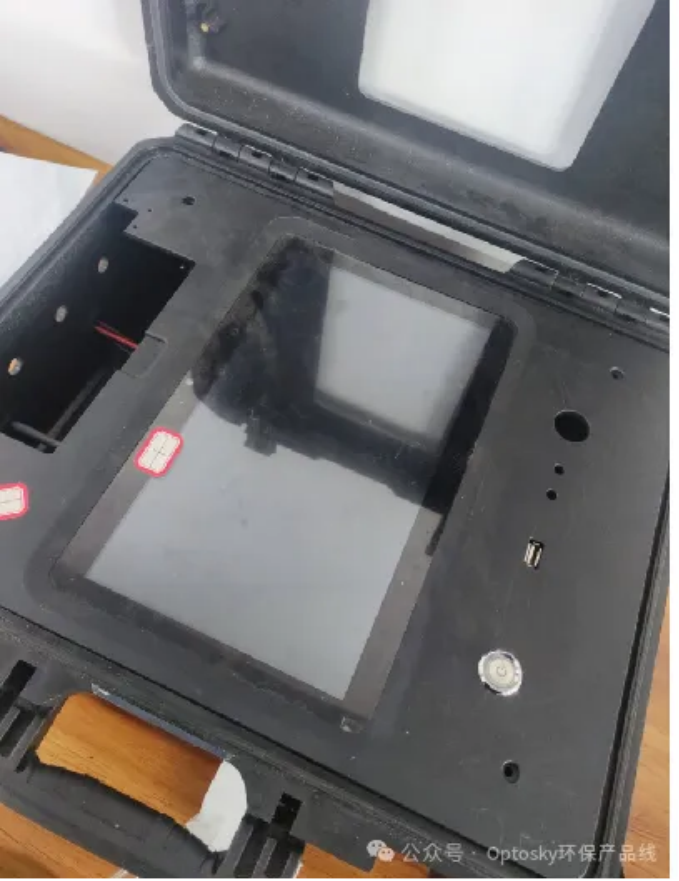

Overall Instrument Image Controller Image

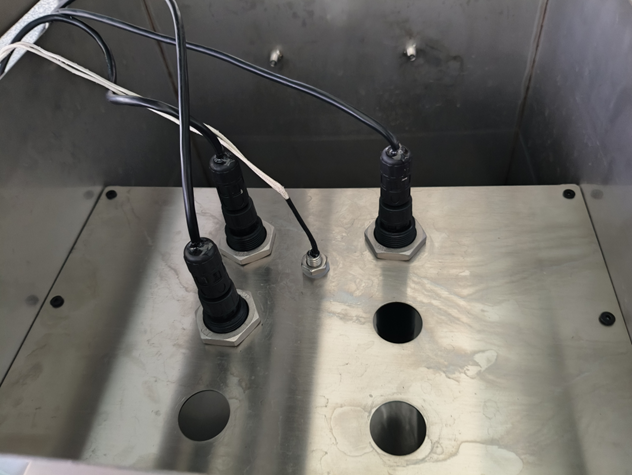

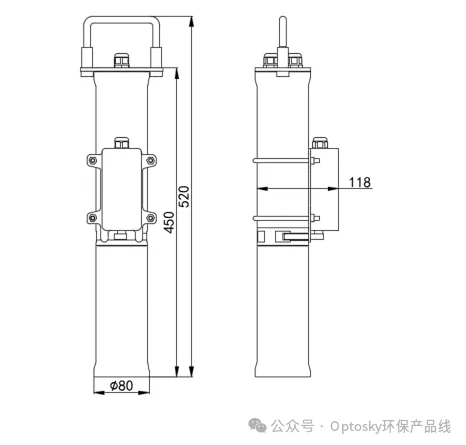

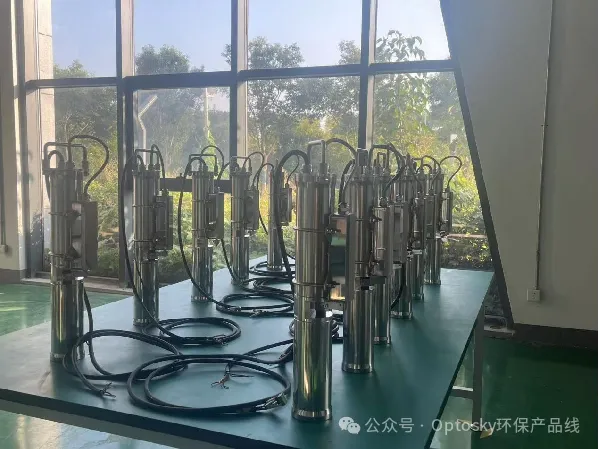

Workshop Production Image Sensor Dimensions

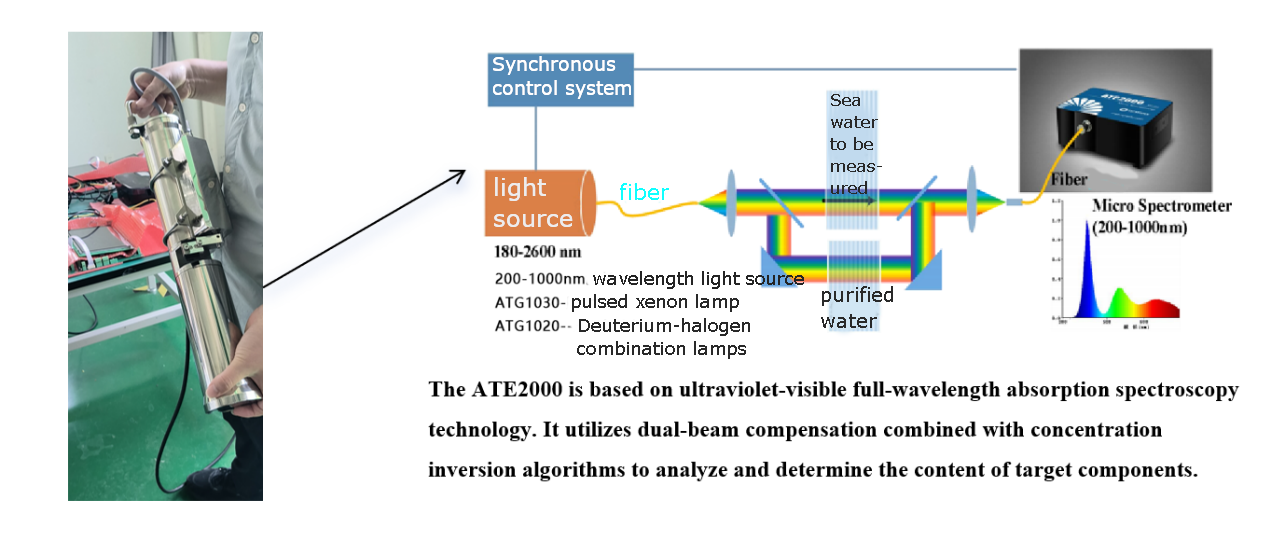

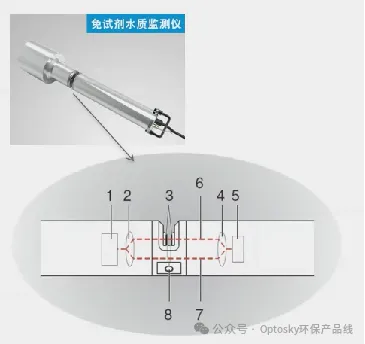

Instrument Anatomy
- Fiber optic spectrometer
- Optical straight mirror
- Test mirror (forming a colorimetric cell)
- Collimating mirror
- Signal receiver
- Measurement light signal
- Reference light signal
- Cleaning air outlet

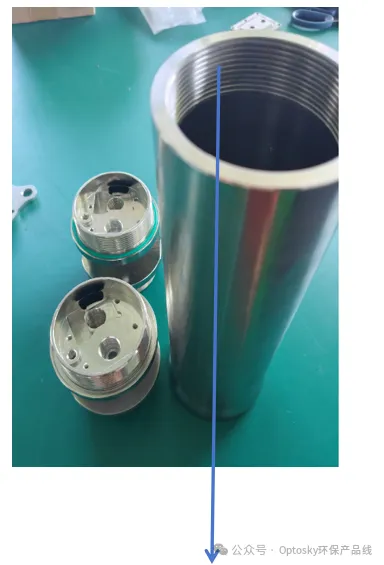

The outer shell is made of stainless steel with a nano-coating applied to the upper and lower surfaces, which resists oil stains, particle deposits, and aquatic plant attachments, ensuring that the monitored water quality remains undisturbed and reducing operational and maintenance needs.

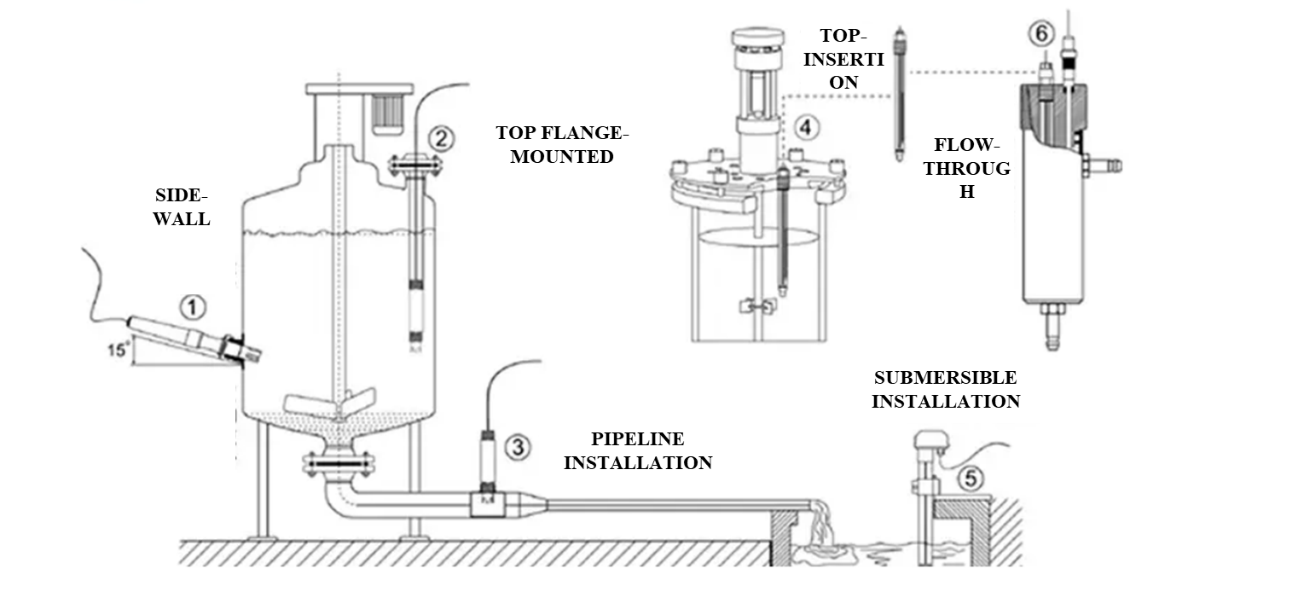

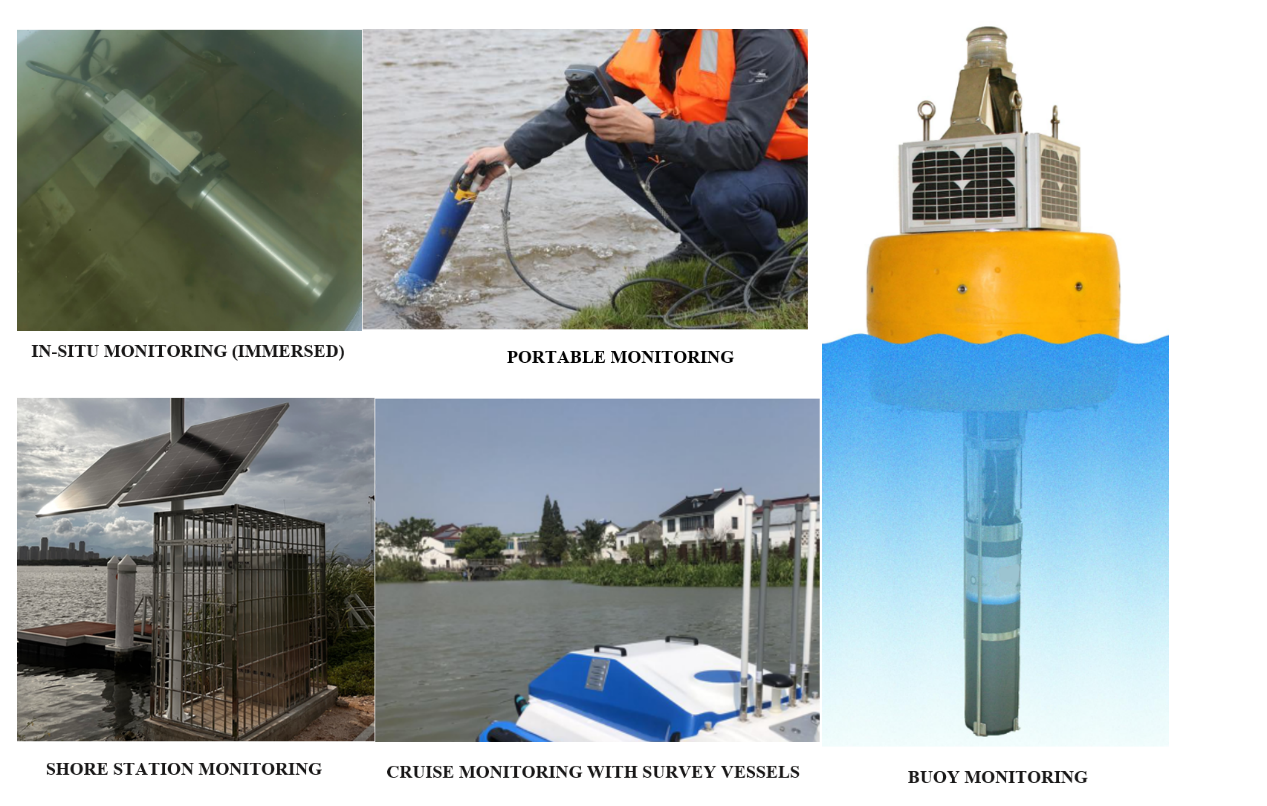

Various In-Situ Monitoring Installation Diagrams
In-Situ Monitoring
In-situ water quality monitoring refers to the process of measuring and analyzing various water parameters directly at the original location of the water body, without transferring the water sample or performing excessive pretreatment.
Buoy monitoring is also a form of in-situ monitoring, commonly used in surface water. This involves submerging sensors directly into the water for monitoring, a practice often observed in sewage treatment facilities.
Installation Diagram
Integrated Water Station Structure Diagram
Application
- Integrated station monitoring of rivers, lakes, and surface water
- Integrated station monitoring of drinking water sources
- Integrated station monitoring of discharge outlets and immersion-type in-situ monitoring
- Process improvement monitoring in wastewater treatment through immersion-type in-situ monitoring
- Portable monitoring for environmental inspections and pollution patrol ships
- Portable monitoring of sudden water pollution incidents and pollution patrol ships
- Immersion-type in-situ monitoring in aquaculture
- Industrial process control water quality monitoring, including integrated station monitoring and immersion-type in-situ monitoring
