How to install Optosky driver in wind 10 system?

2020-07-28

Win10 : After the installation of the spectrometer software driver. First open the device manager,

in the search menu of Win10 system, enter device manager. (Fig1 : Successful installation)

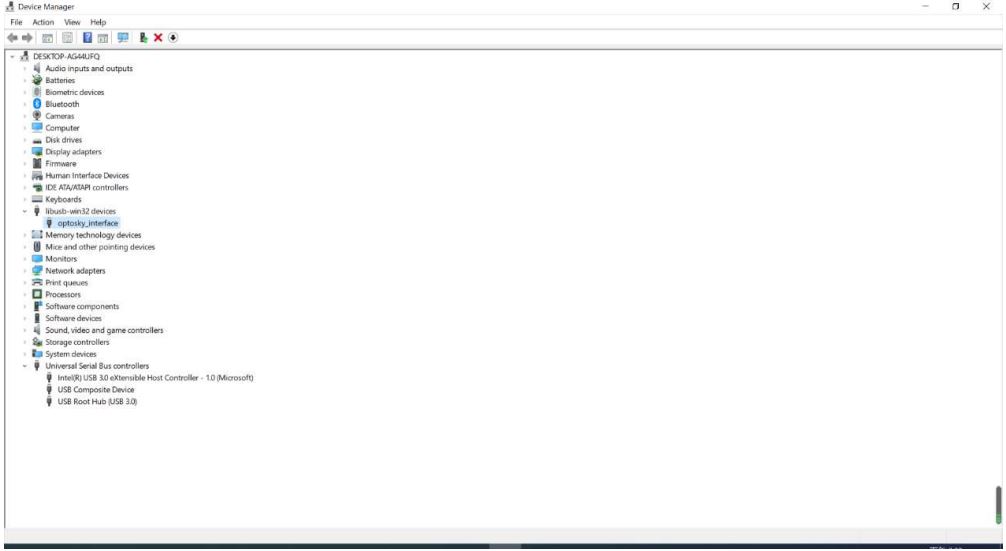

(Fig1 : Successful installation)

If an exclamation mark shows in front of the device (Fig2: Installation failed), follow the next step:

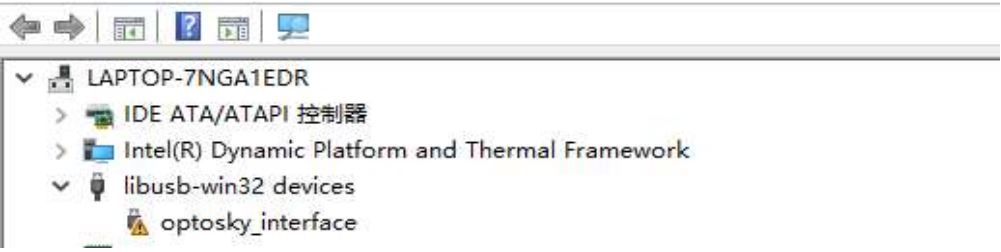

(Fig2: Installation failed)

Step :Check your computer secure boot is enable or not.

Method: In the search menu of Win10 system, enter Windows PowerShell, right-click "Run as

administrator" and open the command line interface:

Input: confirm-securebootuefi then press enter

1: If "True" displayed on the screen (Fig.3), it means secure boot is enabled (Installation failed).

And we have two ways to solve it. The kernel driver logo need to be authorized by Microsoft

company or enter the system BIOS to set secure boot to disable it (Recommend, refer to

Disable secure boot Fig.4-Fig.7);

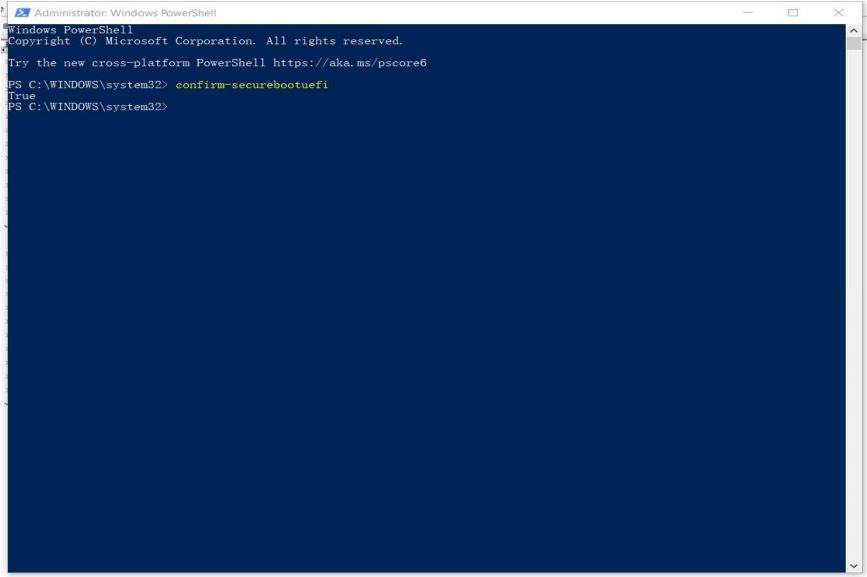

Fig.3

2: If it shows messy code or “False”, which indicates secure boot is not supported or is not

enabled. Successful installation of driver.

Disable Secure Boot

Enter boost mode, restart the computer and press F2: Dell/Asus/Huawei F10: Lenovo/HP/Acer,

then follow the steps to disable secure boot, please refer to pictures below:

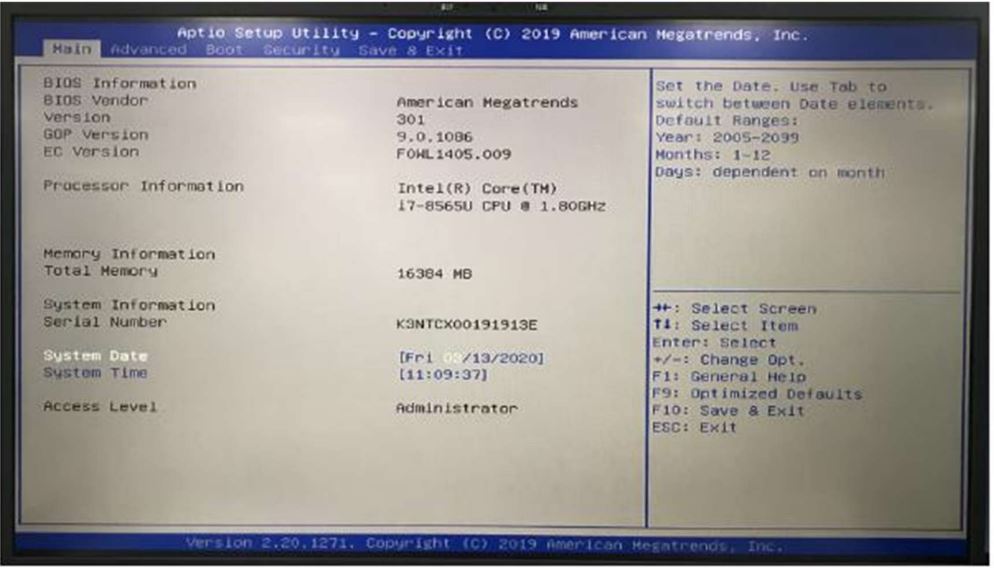

Fig.4

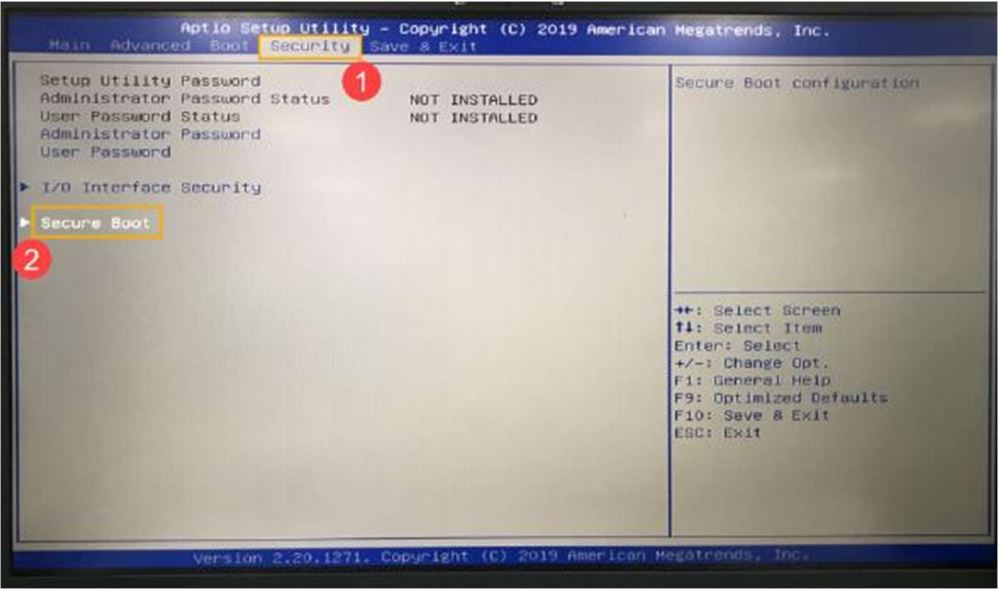

Fig.5

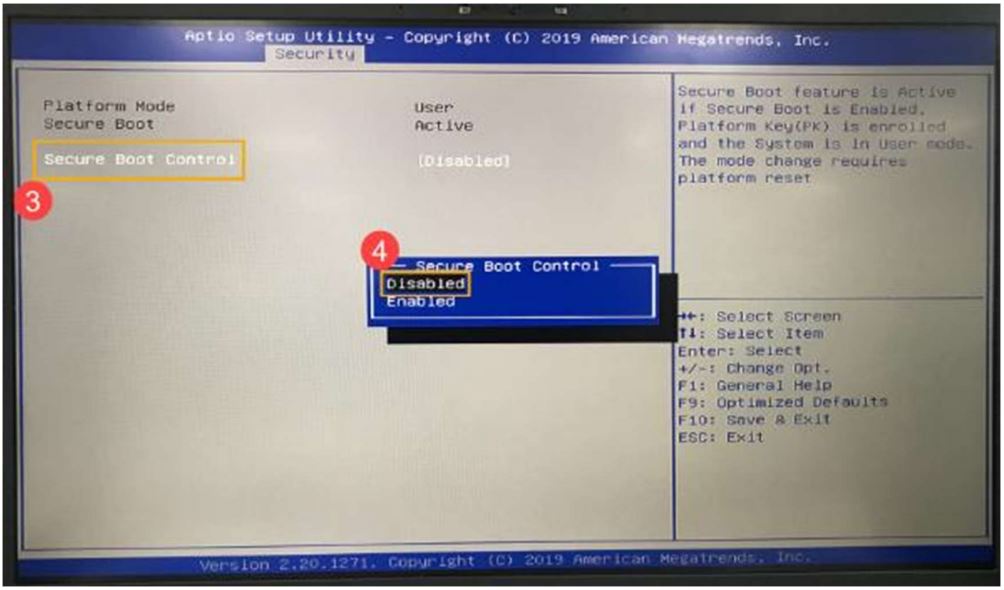

Fig.6

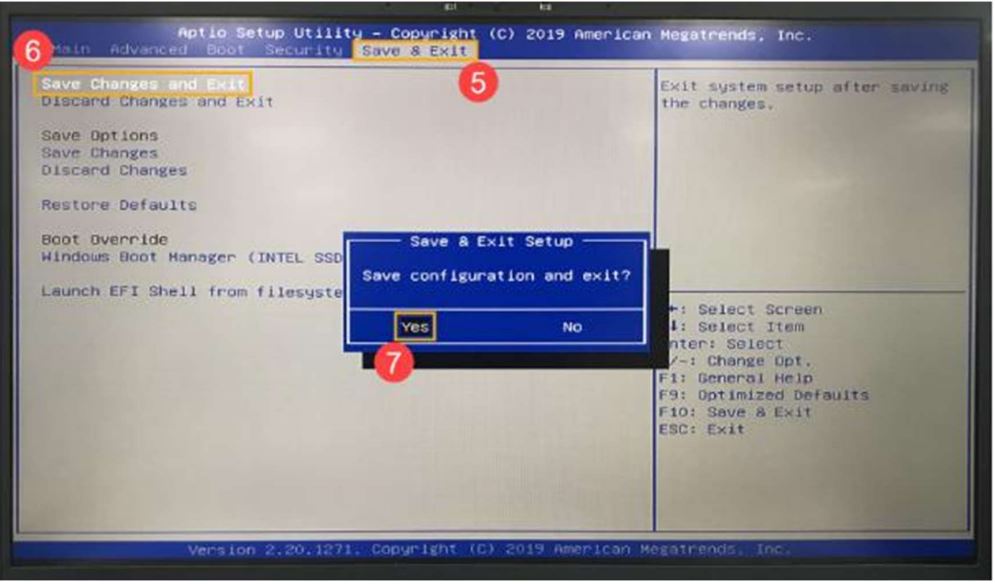

Fig.7
