New Product Launch | ATF4500 3D Fluorescence Spectrophotometer
2026-03-18
In the field of fluorescence detection, 3D fluorescence spectroscopy is known as the "spectral fingerprint" technology due to its ability to simultaneously acquire complete information on excitation and emission wavelengths. It offers significant advantages such as fast detection, rich information, and wide applicability. The newly launched Optosky ATF4500 3D Fluorescence Spectrophotometer, with innovative optical design and excellent performance, achieves higher sensitivity, a wider detection range, and faster scanning speed, providing powerful support for precision analysis in life sciences, environmental monitoring, food safety, and other fields.
Powerful Functions Integrated into One.An Excellent Assistant for Scientific Research
01 High-precision, reliable optical system
-
Light Source
High-performance 150W high-power xenon lamp
-
Grating
Advanced custom grating achieving higher resolution of 0.8 nm
-
Horizontal Beam Design
Horizontal slit direction, sample volume as low as 0.6 mL
02 Automatic Shutter Control Function
-
Automatic Shutter
Shutter control function keeps the shutter closed when no measurement is in progress, preventing sample deterioration caused by excitation light exposure.
-
Time Scan Testing
Pulsed Excitation and Fluorescence Synchronous Detection.Enables high-sensitivity testing of samples.

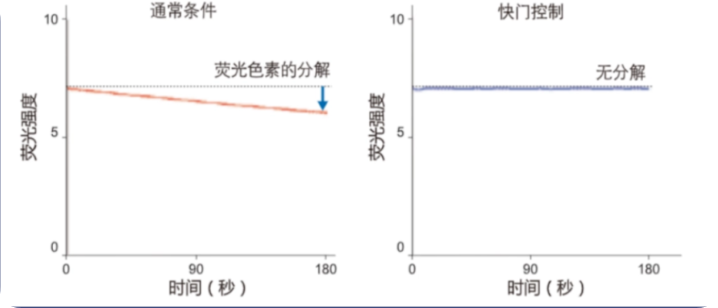

Comparison of Attenuation with and without Shutter Control During Time Scan
03 High-Performance PMT Detector
-
Spectral Range
200-900 nm, 27% improvement
-
Adjustable PMT Gain
50% voltage increase, 60% sensitivity improvement
-
Protection System
Dual Automatic Protection

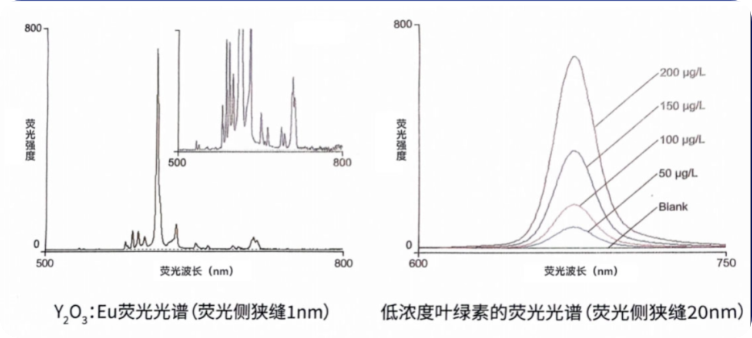

04 Multi-Stage Slit
-
Multiple slit options available
Spectral bandwidth can be switched across 5 levels from 1nm to 20nm
Multi-stage slit accommodates both high-resolution and wide-range testing
05 Rich Fluorescence Accessories
-
Solid Sample Holder
-
Filter Accessories
-
Water-Bath Thermostatted Holder
-
Low-Temperature Testing Accessories
06 Software Functions
-
Wavelength Scan
2D Fluorescence Spectrum Analysis
-
Time Scan
Kinetics Detection
-
Quantitative Measurement
-
3D Scan
3D Fluorescence Spectrum Analysis
-
3D Time Scan
3D Kinetics Detection
07 Wide Applications Empowering Multi-Industry Testing
-
Food, Pharmaceuticals, Cosmetics
Scientific Research
Routine Analysis
Quality Control
-
Biology / Life Sciences
Bioenergy Conversion: Photosynthesis
Pharmaceuticals, Hormones, Proteins
Vitamin and DNA Analysis
-
Environment
Water Pollution
Dissolved Organic Matter
Production / Domestic Water Quality Testing
Soil Pollution Detection
-
Medicine
Cancer Cell / Bacteria Identification
-
Materials Science
Nanomaterials
Photochemical Reaction Monitoring
Luminescent Materials - OLED
-
Chemistry
Qualitative Analysis of Multi-Component Mixtures

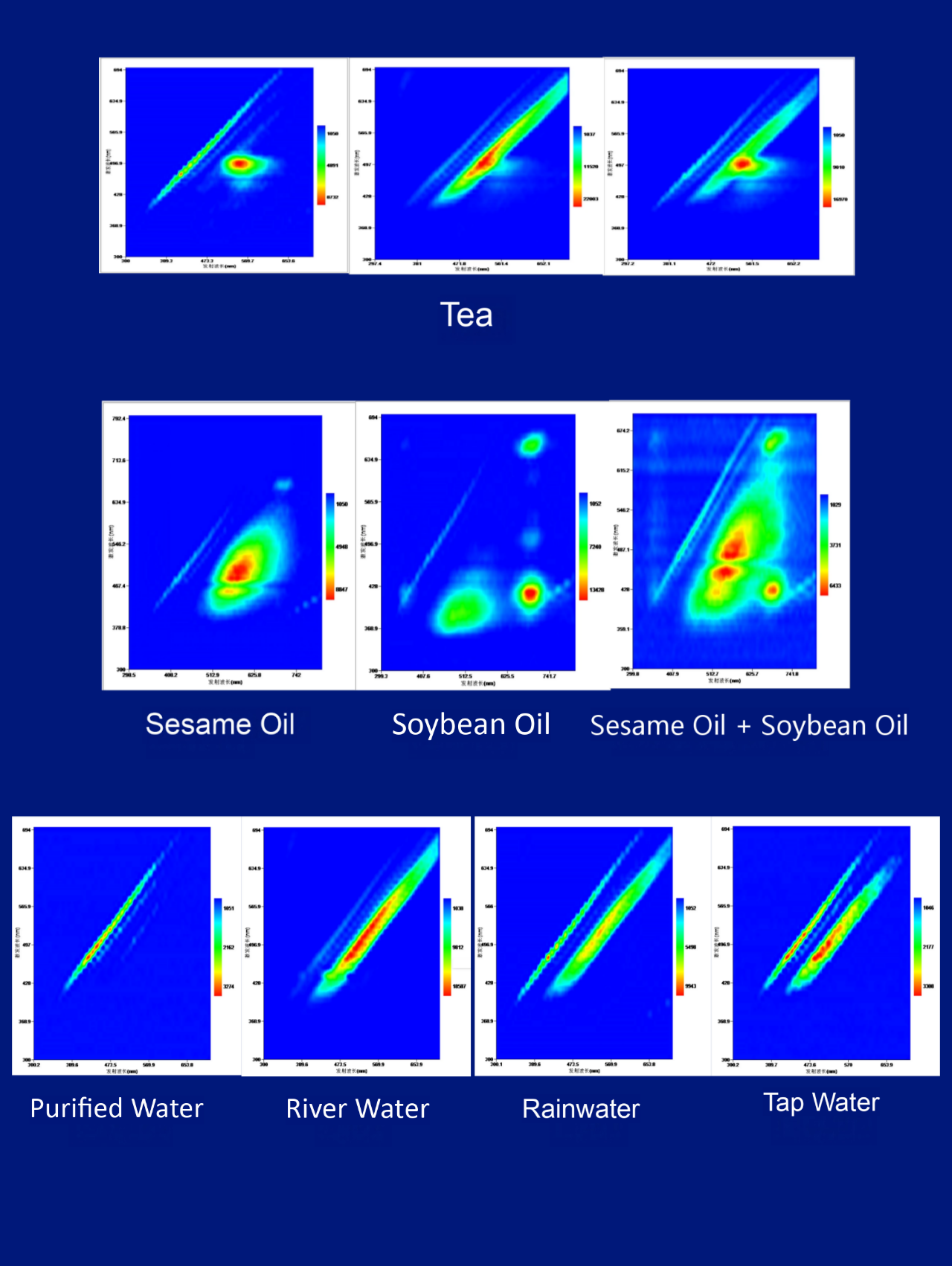

08 Impressive Measurement Performance
09 Authoritative Recognition Benchmark of Excellence
For more information, please contact:
Email: optoskyphotonics@gmail.com
Web: www.optosky.net
