Spectral Decoding: How Optosky Precisely Captures the "Optical Fingerprint" of Pigments

2026-02-03

On the canvas of artistic creation, within the color charts of industrial production, and on the workbench of cultural relic restoration, pigments are the core medium for conveying the language of color. From the millennia-old fading of the Dunhuang murals to the radiant glow of automotive paint, characteristics such as compositional stability, colorfastness, and structural purity directly determine the final visual effect and practical value. But how can we look beyond a pigment's surface to precisely decode its molecular secrets at the microscopic level? Spectral detection technology acts like a "light key," unlocking the mysteries of pigment analysis.

01 Spectral Detection Technology: The "Light Key" to Decoding Pigment Properties

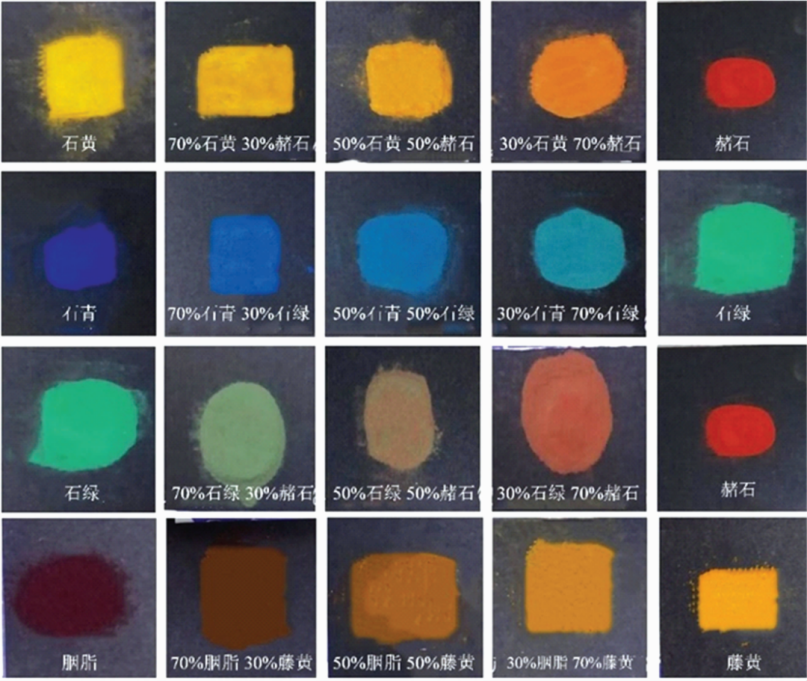

Figure 1. Pigment Samples for Diffuse Reflectance Spectroscopy

1.1 Diffuse Reflectance Spectroscopy: The "Invisible Archive" of Opaque Solids

Diffuse Reflectance Spectroscopy deciphers the composition of opaque solids by capturing light signals after multiple scattering within the pigment. When a light beam hits the pigment surface, part is specularly reflected, while another part penetrates the particle matrix, undergoing absorption and refraction before being diffusely reflected back. Based on the Kubelka-Munk theory, using an integrating sphere to collect this diffuse light allows for plotting spectral curves that reflect the pigment's molecular structure and crystal morphology. Different color families exhibit characteristic curve shapes: yellow and red pigments often show an S-shape, blue-green pigments a bell-shape, and white pigments a more linear profile, providing an intuitive basis for classification.

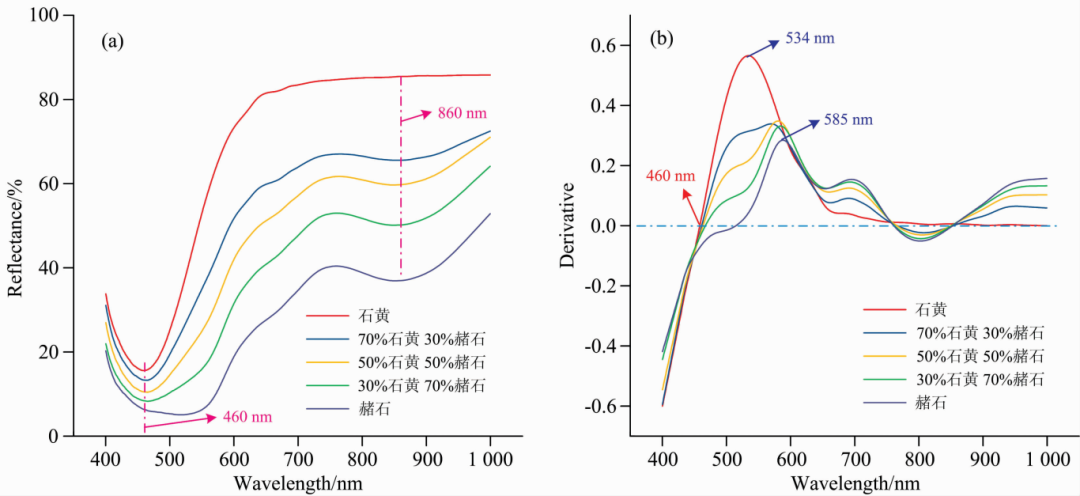

Figure 2. Spectra of Orpiment and Ochre Mixed Pigment. a) Diffuse Reflectance Spectrum; b) First-Derivative Spectrum

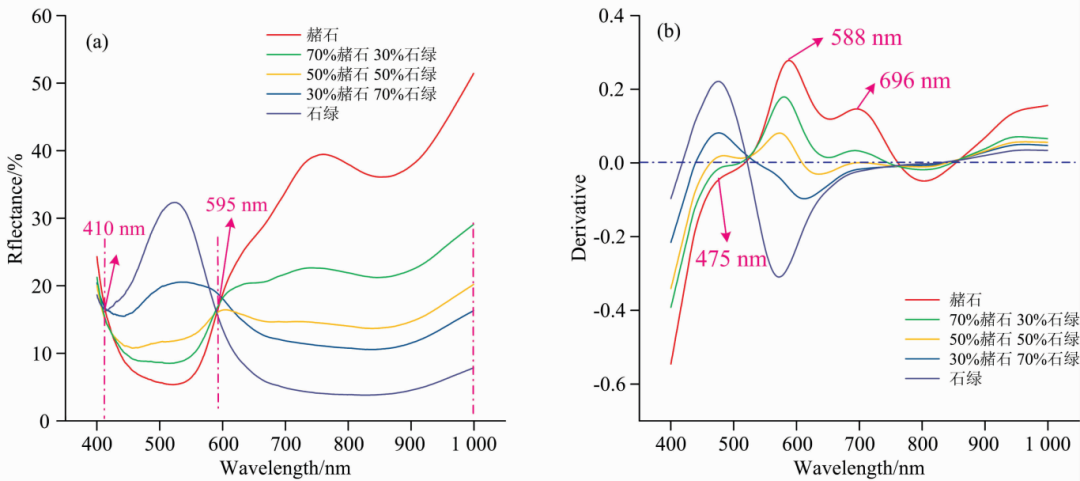

Figure 3. Spectra of Malachite Green and Ochre Mixed Pigment. a) Diffuse Reflectance Spectrum; b) First-Derivative Spectrum

1.2 Absorption Spectroscopy: The "Molecular Fingerprint" of Pigments in Solution

Figure 4. Pigment in Solution

For water-soluble organic pigments, Absorption Spectroscopy reveals information about molecular energy level transitions by measuring the attenuation of specific wavelengths as light passes through the solution. When light traverses a pigment solution, conjugated structures and functional groups within the molecules selectively absorb specific wavelengths, forming characteristic absorption peaks. For instance, the absorption spectrum of plant-based pigments like gamboge clearly reflects their chromophore structure. Combined with the Lambert-Beer law, it allows for precise quantification of solution concentration, providing data support for compositional analysis and formula optimization of organic pigments.

02 Optosky Spectrometers: The "Intelligent Probe" for Pigment Analysis

2.1 Core Technical Advantages: Dual Breakthroughs in Precision and Efficiency

Equipped with high-sensitivity CCD detectors and customized optical systems, Optosky spectrometers deliver three core advantages:

Broad Wavelength Coverage (200-2500nm): Compatible with UV, Vis, and NIR full-band detection, meeting the analysis needs of diverse pigment spectral properties.
Nanometer-Level Resolution (0.1-3nm): Capable of capturing subtle spectral differences, such as the distinct Raman shifts between cinnabar and hematite.
Rapid Data Acquisition (Up to 4000 fps): Paired with intelligent algorithms, complex samples can be scanned in under 10 seconds, significantly boosting inspection efficiency.

2.2 Non-Destructive Testing: Essential for Heritage Conservation & Industrial QC

Catering to the precious nature of historical pigments and the integrity requirements of industrial samples, Optosky spectrometers also support integration with confocal microscopy and Raman systems. Utilizing non-contact measurement modes, the micro-confocal Raman probe can focus a 1μm spot, requiring only a minimal sample to obtain high-quality spectra. For example, in analyzing flaking pigments from Tang Dynasty figurines, a 50X objective lens precisely targeted powdery areas without damaging the artifact. The fiber-optic transmission design enables remote detection, allowing for real-time, in-line monitoring of pigment synthesis in industrial production to ensure batch quality consistency.

03 Diverse Application Scenarios: Empowering the Entire Workflow from Heritage Restoration to Industrial QC

3.1 Cultural Heritage Conservation: Millennia-Old Pigment "Identification"

In analyzing pigments from Tang Dynasty figurines at the Shaanxi History Museum, spectral analysis demonstrated exceptional compositional resolution: Black pigment's characteristic peaks matched a carbon black reference spectrum, confirming its stability over a millennium. Red pigment signal peaks were identified as cinnabar.

Raman signal peaks in the low and high wavenumber regions of green pigment precisely identified it as basic copper carbonate (malachite).

These findings provided a scientific basis for selecting restoration materials and formulating conservation techniques for the painted figurines, avoiding the irreversible damage caused by traditional destructive testing.

3.2 Industrial Inspection: The "Guardian of Full-Process Quality Control" in Pigment Production

In modern pigment manufacturing, spectral analysis is integral throughout the entire chain from raw materials to finished products:

Raw Material Incoming Inspection: Diffuse reflectance spectroscopy quickly screens the crystalline purity of inorganic pigments like titanium dioxide and iron oxide, preventing impurity contamination.

Formula R&D Stage: Absorption spectroscopy analyzes the molecular structure stability of organic dyes, optimizing solvent ratios to enhance color fastness.

Finished Product Testing: Intelligent algorithms automatically compare spectra against standard libraries, making millisecond judgments on color difference and compositional uniformity of color pastes and coatings. For instance, in automotive paint production, the system can accurately detect pigment ratio deviations as small as 0.01%, ensuring coating color consistency and durability.

3.3 Scientific R&D: The "Spectral Navigator" for New Pigment Development

In traditional Chinese painting pigment research, Optosky spectrometers help reveal the mixing principles of classic pigments:

Analysis of first-derivative spectra from mixed samples of orpiment and ochre (both exhibiting S-shaped spectra, as shown in Figures 2 & 3) revealed that the intensity changes of characteristic peaks at 534nm and 585nm correlated linearly with the mixing ratio, providing a quantitative model for unmixing analysis of ancient painting pigments.

For developing new eco-friendly pigments, their high-sensitivity detection capability can capture surface plasmon resonance effects in nano-scale pigment particles, guiding the structural design of photo-chromic and thermo-chromic materials and advancing the development of smart pigments.

Conclusion

From the fading colors of millennium-old figurines to the vibrant color charts of modern industry, Optosky spectrometers use light as their pen, writing precise chapters of pigment analysis in the spectral dimension. Whether performing "micro-decoding" for heritage conservation or providing "online guardianship" for industrial production, their technological innovation and practical application continually expand the boundaries of spectral detection. As AI algorithms and spectral technology deepen their integration, Optosky will continue to focus on "optical fingerprint" identification, helping to build a more intelligent and accurate ecosystem for pigment analysis. This ensures every hue reveals its true essence under spectroscopy's "magnifying glass," infusing the industry with the power of light.
