Development and Prospects of Hyperspectral LiDAR for Earth Observation
author: Callum
2025-01-06
Introduction
Over decades, Earth observation technologies have become indispensable in fields like environmental monitoring, forestry surveys, urban planning, and resource exploration. Remote sensing, as a core tool, has evolved into an integrated system encompassing passive multispectral/hyperspectral imaging, active and passive microwave sensing, and LiDAR technologies, applicable across aerial, satellite, and ground platforms. However, achieving high-resolution, all-weather, all-time Earth observation remains a critical challenge due to global climate change and rapid urbanization.
LiDAR and hyperspectral imaging, two key technologies, offer unique advantages. LiDAR captures 3D spatial data day and night but has limited spectral information acquisition due to its single-wavelength detection. Hyperspectral imaging provides rich spectral information but is constrained by weather and illumination, with weaker spatial resolution. Combining these strengths to develop multispectral/hyperspectral LiDAR systems with integrated spatial-spectral capabilities has become a significant research focus worldwide.
Development Stages of Hyperspectral LiDAR
The evolution of hyperspectral LiDAR systems can be categorized into three stages: initial exploration, progressive advancements, and gradual refinement. The journey from "dual-wavelength" to "multispectral" and finally to "hyperspectral" has enabled synchronous acquisition of spatial and spectral data.
1. Initial Exploration Stage
In the 1990s, single-wavelength LiDAR became widely applied in surveying and forestry. Early research used the inherent wavelengths (e.g., 532 nm and 1064 nm) of solid-state lasers like Nd:YAG for dual-wavelength detection. Despite limited spectral data, these studies laid the groundwork for multispectral expansion. For instance, NASA employed 660 nm and 780 nm wavelengths for vegetation-specific experiments, showcasing the potential of dual-wavelength LiDAR in distinguishing ground objects.
2. Progressive Advancements
With technological progress, researchers began constructing multispectral LiDAR systems, exemplified by systems using supercontinuum lasers to cover multiple bands. These systems captured broader spectral information but remained confined to laboratory research due to laser power and detector performance limitations. This stage demonstrated the enhanced object identification and classification capabilities achievable by introducing multiple characteristic wavelengths.
3. Gradual Refinement
Entering the 21st century, hyperspectral LiDAR transitioned from laboratories to real-world applications. By integrating hyperspectral imaging with LiDAR scanning, systems capable of covering visible to NIR bands were developed. These systems provide high spectral resolution while capturing spatial information, greatly expanding application scenarios. Today, hyperspectral LiDAR shows potential in forest structure monitoring, hydrological surveys, and more, though challenges remain in miniaturization, commercialization, and cost control.
Data Processing Innovations
Hyperspectral LiDAR generates unique datasets, involving multi-band waveform data processing and complex geometric/radiometric corrections.
1. Multi-Band Full Waveform Data Processing
Compared to traditional LiDAR, hyperspectral LiDAR excels in weak signal decomposition, particularly in low-SNR bands. Efficiently processing and analyzing large volumes of multi-band data is a major challenge for researchers.
2. Geometric and Radiometric Corrections
Temporal differences in pulse echoes across bands complicate geometric corrections, while radiometric corrections must address factors like target distance, incident angles, and surface roughness to ensure data accuracy and consistency.
Application Potential
Hyperspectral LiDAR demonstrates broad applications in surveying, agriculture, and forestry.
1. Surveying
It efficiently classifies land cover and objects, offering valuable insights for urban development and ecological monitoring.

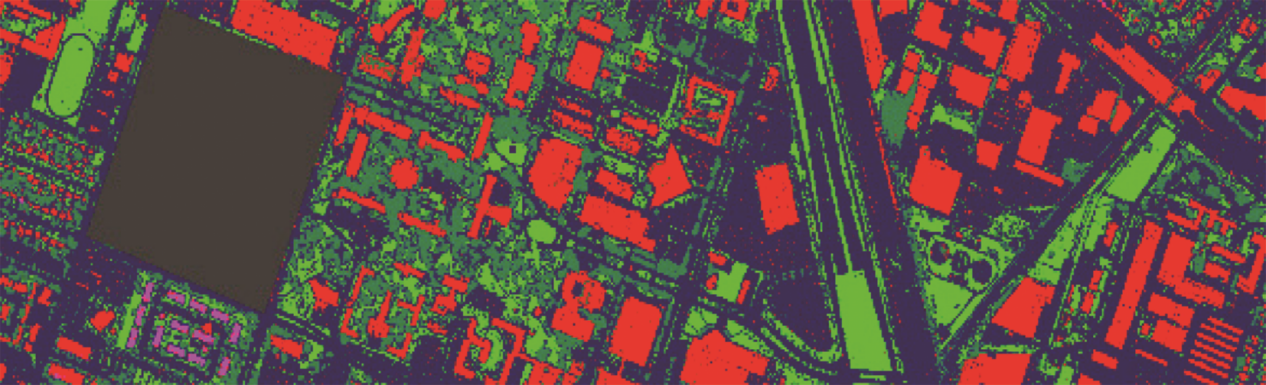

Figure 1 Land cover classification
2. Agriculture and Forestry
Hyperspectral LiDAR simultaneously captures spatial and spectral vegetation data, enabling innovative methods for analyzing physiological and biochemical characteristics in 3D. Applications include forest health assessments and crop growth monitoring.

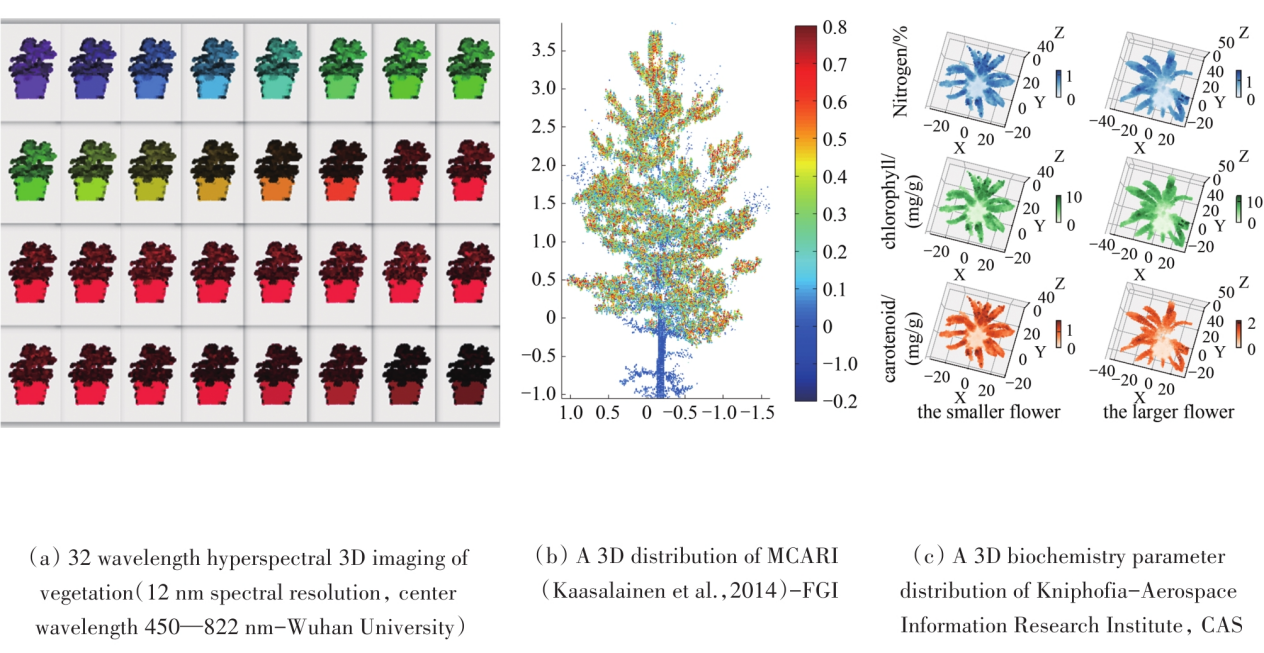

Figure 2 Vegetation detection application with hyperspectral lidar
Future Development Outlook
Hyperspectral LiDAR faces both opportunities and challenges, with key research directions including:
- Miniaturization: Achieving portable systems through technological integration and optimization.
- Commercialization: Transitioning from laboratory systems to market-ready products.
- Demonstration Projects: Conducting cross-sector demonstrations to validate practical value.
In the context of rapidly advancing remote sensing technologies, hyperspectral LiDAR is poised to become a cornerstone tool, offering solutions for environmental conservation, resource management, and more.
Conclusion
Hyperspectral LiDAR marks a significant leap in Earth observation technologies. With ongoing innovation, its potential in environmental monitoring, forestry management, and urban planning will be further realized. Sustained research and development will unlock this technology’s unique value, contributing to sustainable development worldwide.
