Leveraging Hyperspectral Remote Sensing for Enhanced Forest Fire Monitoring
author: Callum
2024-12-11
1. Introduction
Forest fires are highly unpredictable, destructive, and difficult to manage. Countries around the world have invested significant resources in research for prevention, control, and extinguishing fires. In recent years, with global warming and an increase in extreme weather events, forest fires have become more frequent, causing significant damage to forest resources and property, sometimes resulting in severe human casualties. For instance, the 2018 California Paradise fire caused over 80 deaths and destroyed more than 9,000 homes, while the 2019-2020 Australian bushfires resulted in 33 deaths, the destruction of over 3,000 houses, and the death of around 1 billion animals. In China, forest fires have also been frequent in recent years due to factors such as increased forest biomass, climate anomalies, and rising human activity in forested areas.
Satellite remote sensing has been widely applied in forest fire early warning, monitoring, and damage assessment, but the current technology faces challenges in providing timely, detailed, and accurate data on individual tree-level damage in fire-affected areas.
2. Airborne Remote Sensing Technology for Forest Fire Monitoring
Since the 1950s, airborne infrared remote sensing has been applied to forest fire monitoring. With the development of airborne remote sensing technologies, platforms equipped with high-performance sensors have become widely used in forest fire prevention. Laser scanning data extracted from airborne LiDAR (Light Detection and Ranging) systems provide valuable parameters like canopy density, crown volume, and base height, which are essential for estimating fuel load and simulating fire behavior. Hyperspectral imagery, with its narrow spectral bands, has proven advantageous in distinguishing different fuel types based on their chemical composition, moisture content, and energy release potential, which directly influence fire intensity and behavior.
Recent studies have used multi-sensor airborne remote sensing platforms that integrate LiDAR, hyperspectral, thermal infrared, and CCD data. These multi-dimensional datasets can effectively reflect different aspects of forest structure and fire dynamics, offering a more accurate evaluation of fire risk and behavior prediction.
3. Integrated Airborne Remote Sensing System for Forest Fire Monitoring
The integrated airborne remote sensing system used in this study combines four sensors: LiDAR, thermal infrared camera, CCD camera, and hyperspectral sensor. These sensors, mounted on a single platform, share a high-precision Position and Orientation System (POS) that synchronizes data acquisition and triggers based on location. The system's design enables comprehensive monitoring of forest structure, fuel load, fire behavior, and post-fire recovery.
The sensors' performance specifications are as follows:
- LiDAR Scanner: Provides precise vertical structural data, essential for mapping canopy features and estimating fuel load.
- Thermal Infrared Camera: Measures temperature distribution, aiding in fire intensity and behavior monitoring.
- CCD Camera: Captures high-resolution images to assess visual damage and fire spread.
- Hyperspectral Sensor: Offers detailed spectral data, allowing for the differentiation of vegetation types and the assessment of fire impact on forest health.
4. System Data Processing and Integration
The system's data processing involves precise calibration and synchronization of the collected data. AEROoffice and Grafnav software are used for processing the Position and Orientation System (POS) data, ensuring accurate positioning of each sensor. Post-processing of the LiDAR and hyperspectral data further refines the understanding of fire-affected areas, facilitating the creation of high-resolution fire damage maps and monitoring fire recovery over time.
The integrated system provides a comprehensive, multi-sensor approach to forest fire monitoring, enabling real-time data analysis and improving the accuracy of fire risk assessments.

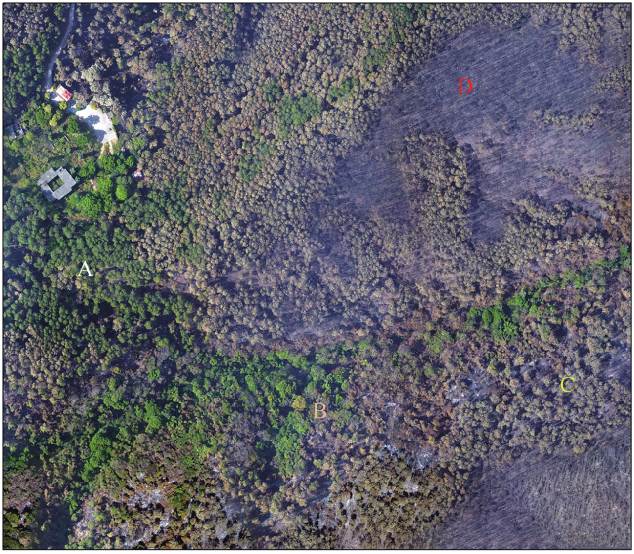

Figure 1 Airborne CCD image

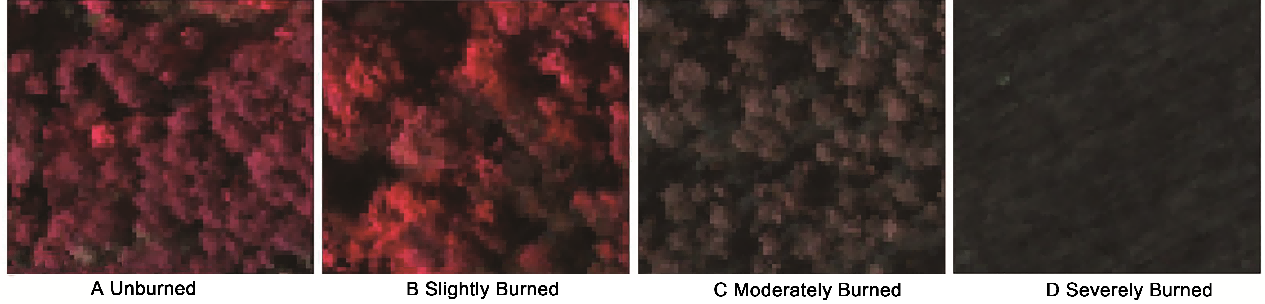

Figure 2 Hyperspectral images of different burn severity levels
5. Conclusion
The use of integrated airborne remote sensing systems for forest fire monitoring offers several advantages, including real-time data acquisition, multi-dimensional observation, and more accurate fire behavior prediction. By combining LiDAR, thermal infrared, CCD, and hyperspectral data, the system can provide detailed insights into fire-affected areas, supporting better forest management and fire prevention strategies.

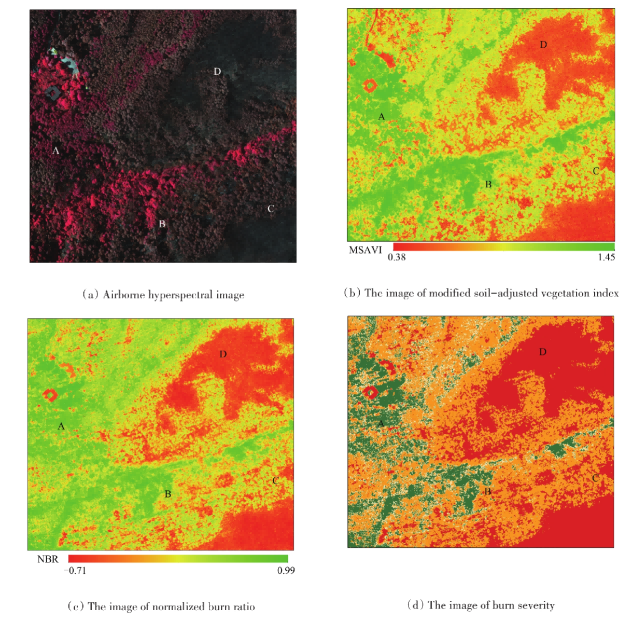

Figure 3 Vegetation index derived from airborne hyperspectral data
