Total organic carbon analyzer unique dehydration technology dehydration efficiency

Total organic carbon analyzer unique dehydration technology dehydration efficiency

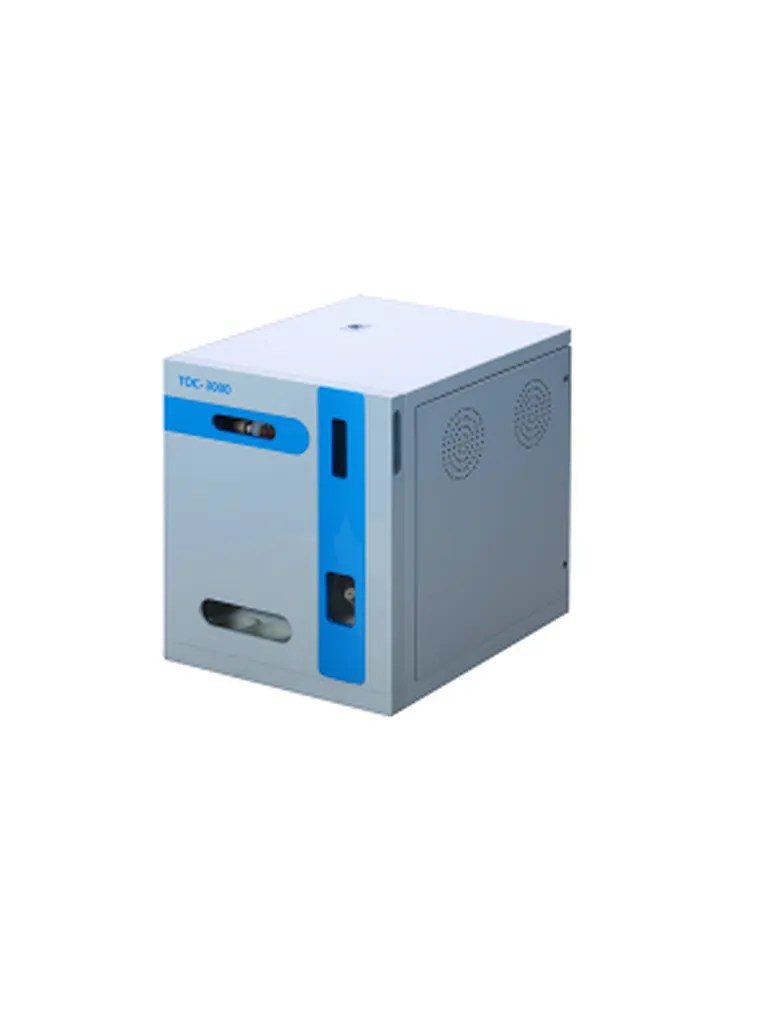

The total organic carbon (TOC) analyzer is an instrument professionally developed and produced for the pharmaceutical and electronic industries to monitor the total organic carbon concentration in water samples in real time. Through scientific methods and excellent process control capabilities, automated operations are facilitated and online, continuous monitoring of the water supply system is achieved, which can not only fully meet your application, but also save investment. It has a friendly operation interface, making its installation, operation and maintenance very convenient.

Scope of application:

1. This instrument is used to test the organic carbon content of pure water, deionized water in the pharmaceutical industry and water for injection.

2. Pharmaceutical and biochemical cleaning verification: During the pharmaceutical and biochemical pharmaceutical industry processing, monitor the cleaning cycle.

3. Monitor the TOC content in purified water in semiconductors.

Total organic carbon analyzer measurement principle

ppb level total organic carbon TOC meter, continuously measures trace amounts of total organic carbon TOC content in water samples. The sample is sparged with a carrier gas, which removes inorganic carbon and dissolved carbon dioxide. The residual liquid, now containing only organic carbon compounds, is pumped into the reactor. High-intensity UV light promotes organic carrier gas into the bottom of the reactor, forcing carbon dioxide through a drying system and into a non-scattering infrared carbon dioxide detector. The total amount of carbon dioxide produced is proportional to the organic carbon content in the sample, and the total organic carbon content should be within the set measurement range. For some higher TOC values or applications containing high concentrations of inorganic carbon, the use of acidified reagents can improve the measurement.

Main features

1. The world's unique electronic dual refrigeration module and membrane dehydration technology. The use of excellent three-stage dehydration technology ensures the dehydration efficiency of the entire system, making the detector permanently maintenance-free.

2. The heated IC inorganic carbon reaction cell eliminates the tailing of sample peaks and shortens the sample measurement time.

3. Use the same cracking combustion system to measure liquid and solid samples without replacing any hardware.

4. The unique air path buffer design ensures excellent reproducibility of sample measurement results.

The composition of the sample and the by-products produced by the oxidation process will not cause interference. The use of reliable technology ensures the accuracy of measurement at low concentrations, advanced self-diagnostic functions, and self-cleaning functions.
