What is the hyperspectral imaging?
author: Ricky Chan
2023-01-05
Hyperspectral Imaging What is it? How does it work?
Hyperspectral imaging has grown increasingly popular over the past ten years in military, industrial, and scientific arenas. The ability to precisely characterize the color of a viewed item, whether a camouflaged vehicle, a bruise on an arm or on fruit, or a wide swath of vegetation, allows the user to make informed decisions only dreamed of in the past. What once required large, delicate, and expensive laboratory spectrometers is now being done in real time aboard satellites, unmanned aerial vehicles, and portable handheld units.

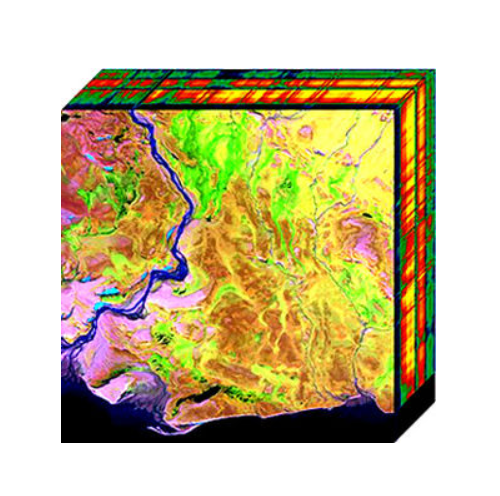

Hyperspectral imaging is the capturing and processing of an image at a very large number of wavelengths. Whereas multispectral imaging might evaluate an image in three or four colors (red, green, blue and near-infrared (NIR), for example), hyperspectral imaging breaks the image down into tens or hundreds of colors.
Expanding a vision system to create many more “bins” can be exceptionally complicated. In 1999, Deposition Sciences, Inc. (DSI) was contracted to coat a series of 16 beamsplitters. These beamsplitters were configured in four primary optical chains, each with four secondary chains, resulting in sixteen discrete optical paths, each terminating at a separate detector. The end result was a sixteen-channel spectral imaging system covering a wavelength range from 400 - 900 nm. Each optical element had to maintain a transmittance and reflectance of greater than 98% to ensure a final signal level at the detectors of at least 90%. While this system worked as designed, it was large, expensive, and delicate. It was suitable for the benchtop demonstration required, but not for many of the in-field applications needed by today’s sensor systems.
Enabling Technologies

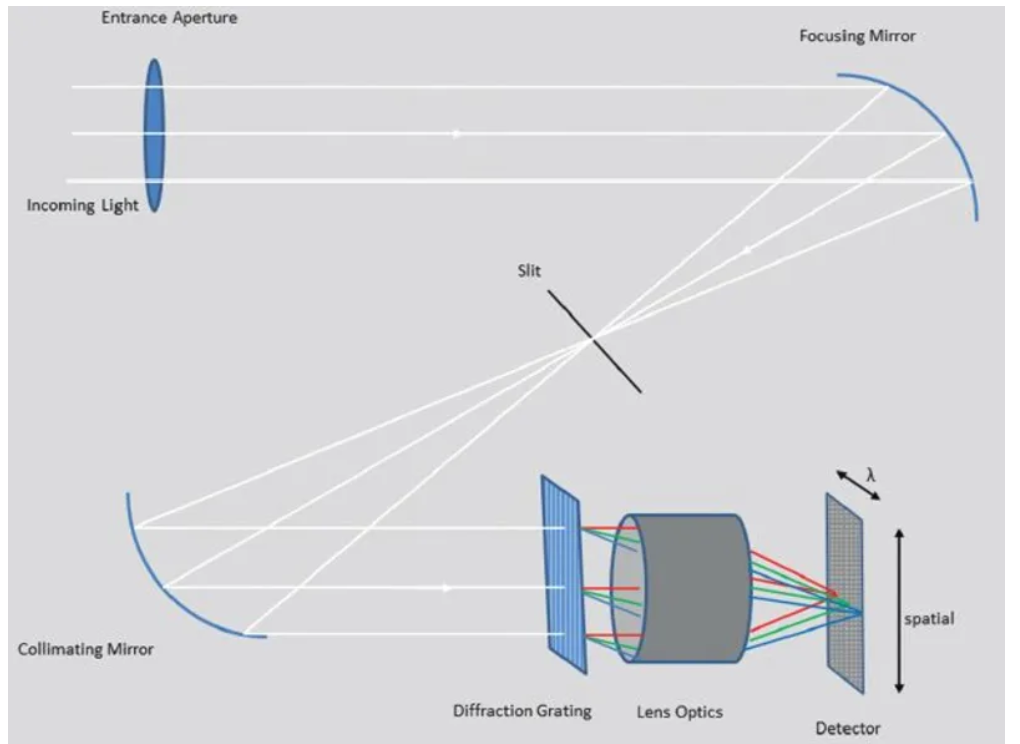

There are two broadly defined areas of technology which have enabled the development and advancement of hyperspectral imaging. They are the development of inexpensive, high quality diffraction gratings and the advancements in multiple dimension data processing. In order to see how these technologies have improved the state of hyperspectral imaging, it is necessary to take a brief look at how most current systems operate. Note that this is a general discussion. Most of the companies offering instruments or services have unique, proprietary approaches that distinguish one from the other. We will only look at a simplified system that identifies some of the key features. Such a simplified system is shown in Figure 2.Most hyperspectral imaging systems consist of imaging optics, a narrow slit, a diffraction grating, and a 2-dimensional focal plane array (FPA) detector (usually CCD or CMOS). The image is projected through the slit onto the diffraction grating where the light is split into discrete wavelengths and physically separated before being projected onto the focal plane array. One dimension of the FPA corresponds to the wavelength of light, as separated by the diffraction grating. The other dimension corresponds to the “vertical” position along the slit.

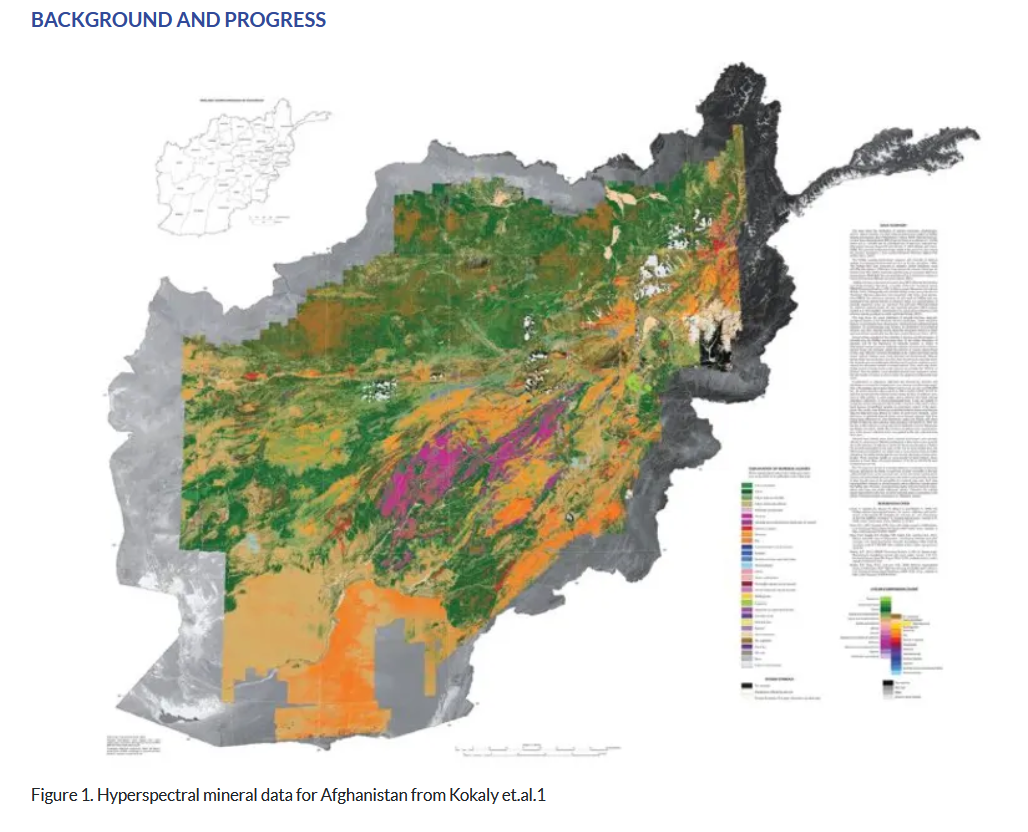

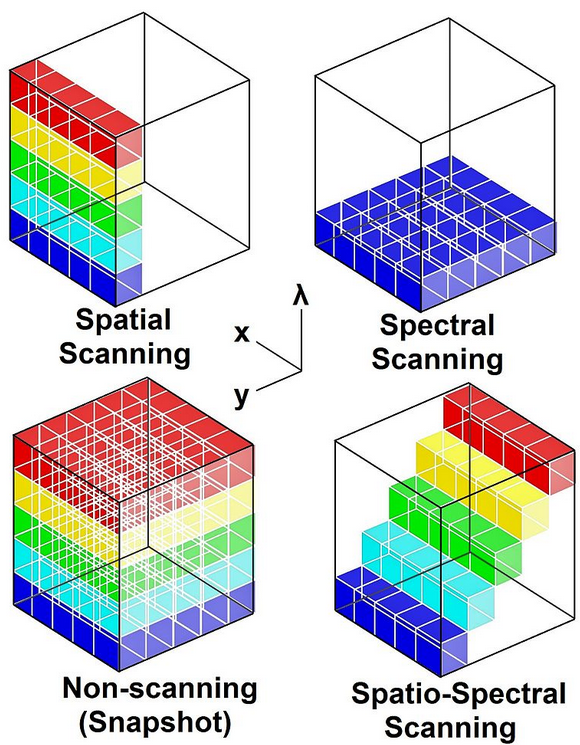

At each X-Y coordinate, a pixel is energized to some level, based on the intensity of the light at that position and wavelength. What results is a 3-dimensional array (position on slit, wavelength and intensity) for each narrow slit width. By indexing the slit width, one can map the entire image into a 4-dimensional array. This indexing (called “pushbrooming”) can be done by moving the slit, or by moving the sensor device. In the case of the USGS survey of Afghanistan, cited above, each slit width corresponded to a single flight line, or pass of the airplane. Determining how much overlap to use, as well as what known standards or features to use for calibration, is critical in getting reliable data
What makes this process work is the high quality, lightweight, and affordable diffraction grating. Diffraction gratings have been used in various spectrometric devices for hundreds of years. Historically, they were precision-blazed on high quality glass. They were fragile and expensive. Most of the hyperspectral imaging systems today use high-quality polymer gratings cast from a precision-machined master. They are more durable, cheaper and consistent from instrument to instrument. One limitation of diffraction gratings is that in general, they are restricted to a single order, meaning they are effective for a limited wavelength range (typically on the order of 200 - 800 nm, somewhat larger in the IR bands). If you wish to collect data over a wider spectral range, this often means you must use multiple modules, as the USGS did above.
The second piece of the hyperspectral imaging puzzle is the vast improvement in high-speed computer data analysis. Virtually every system vendor has a readymade software package that ties in GPS coordinates, interleaves the pushbroom data (properly accounting for the overlap), automatically checks against known features and is able to operate at cycles in excess of 500 frames per second (fps). This capability is absolutely crucial for making the jump from processing a single line of data to processing an entire composite image.The USGS work cited above produced over 800 million pixels of data.
Current State of the Art

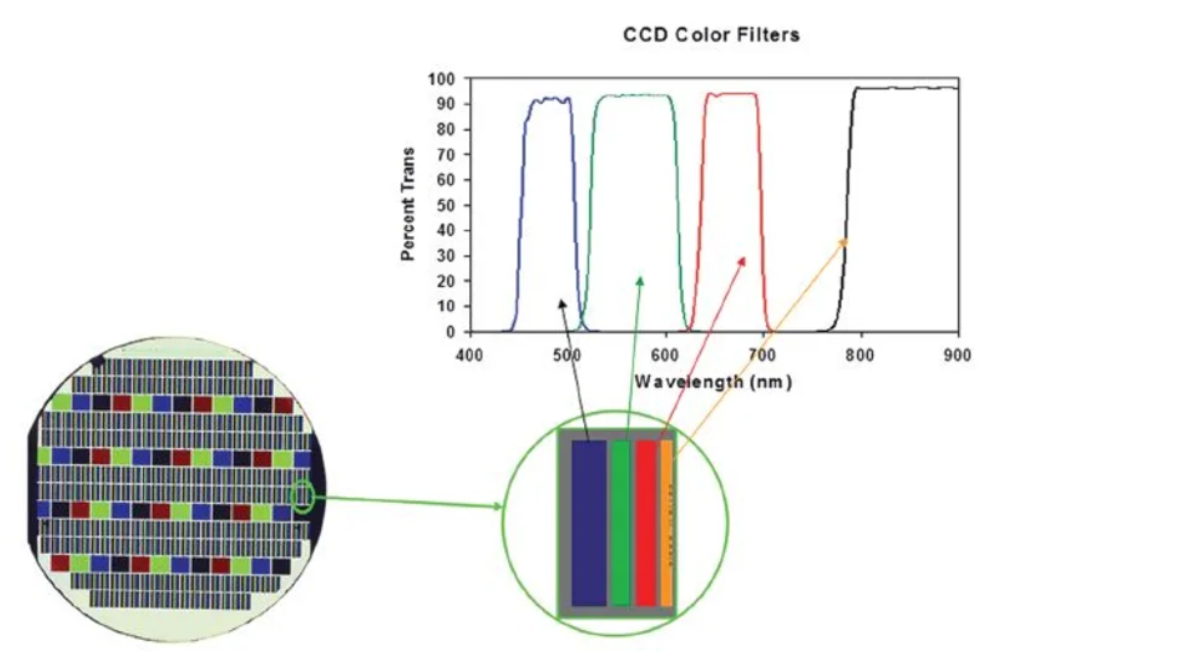

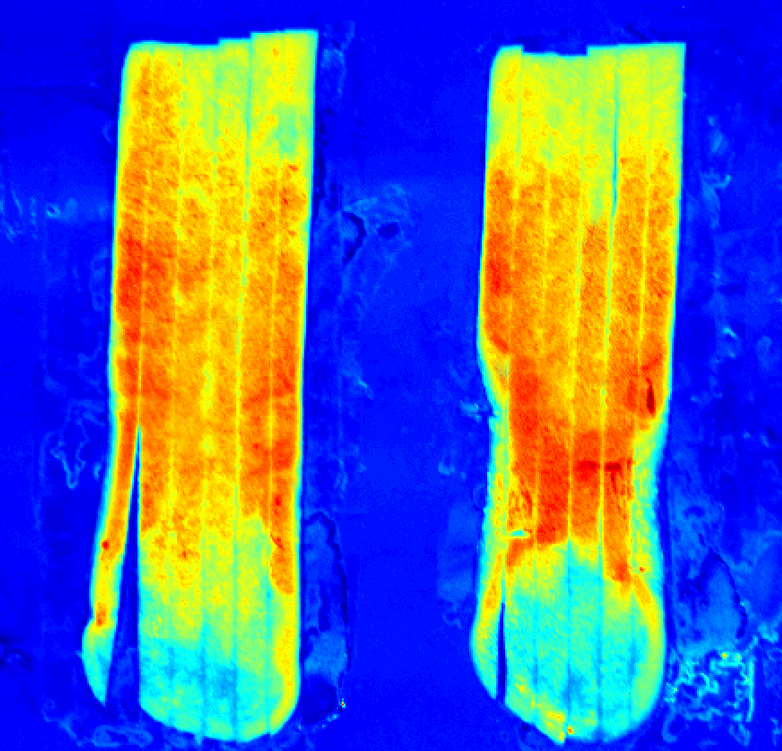

Many vendors surveyed for this article produce systems with at least 100 bands for the spectral range, with full width at half maximum (FWHM) bandwidths on the order of 1 - 5 nm. Frame capture rates run from 100 - 600 fps. Of course actual performance is highly dependent on the system configuration parameters such as the characteristics of the diffraction grating, the field of view, and the type of sensor used. IR sensors generally must be cooled, adding to the size and weight of the device.Figure 3. Example of a 4-color patterned filter deposited onto a 200 mm wafer. Each element, consisting of 4 filters, is diced and mounted onto a detector set. (Photo courtesy of Deposition Sciences, Inc.) Applications must be carefully considered when selecting a hyperspectral imaging system. In many case
