Introduction
Color occurs when light is perceived by the human eye. Color reflected from, or emitted by samples can be measured using basic color meters or more robust spectral devices for more detailed analysis.
Accurate color measurement depends on the sample, on calibrating the setup for the illuminant and detector being used, and on subjective human perception. Also, measurement geometry is critical to ensure consistent results and compliance with standards. Managing each element involves subtleties that are critical for producing accurate, repeatable results.
Advantages of Color Measurement
- Spectral measurement is far more sophisticated than visual inspection
- Data acquired can be used to calculate multiple color parameters
- Non-contact: Measurements can be taken at a distance, preventing damage to the sample and providing flexibility
- Parameters such as brightness, power output and color can be measured simultaneously
Spectrometer + stable visible light source + high efficiency reflection measuring device
Suggestions for spectrometer selection:
1. A spectrometer covering the visible light range of 380-780nm.
2. Sensitivity is more critical than resolution.
3. The stability requirements are selected based on the measurement accuracy requirements.
4. Recommended model ATP1010 ATP2000P ATP5020P

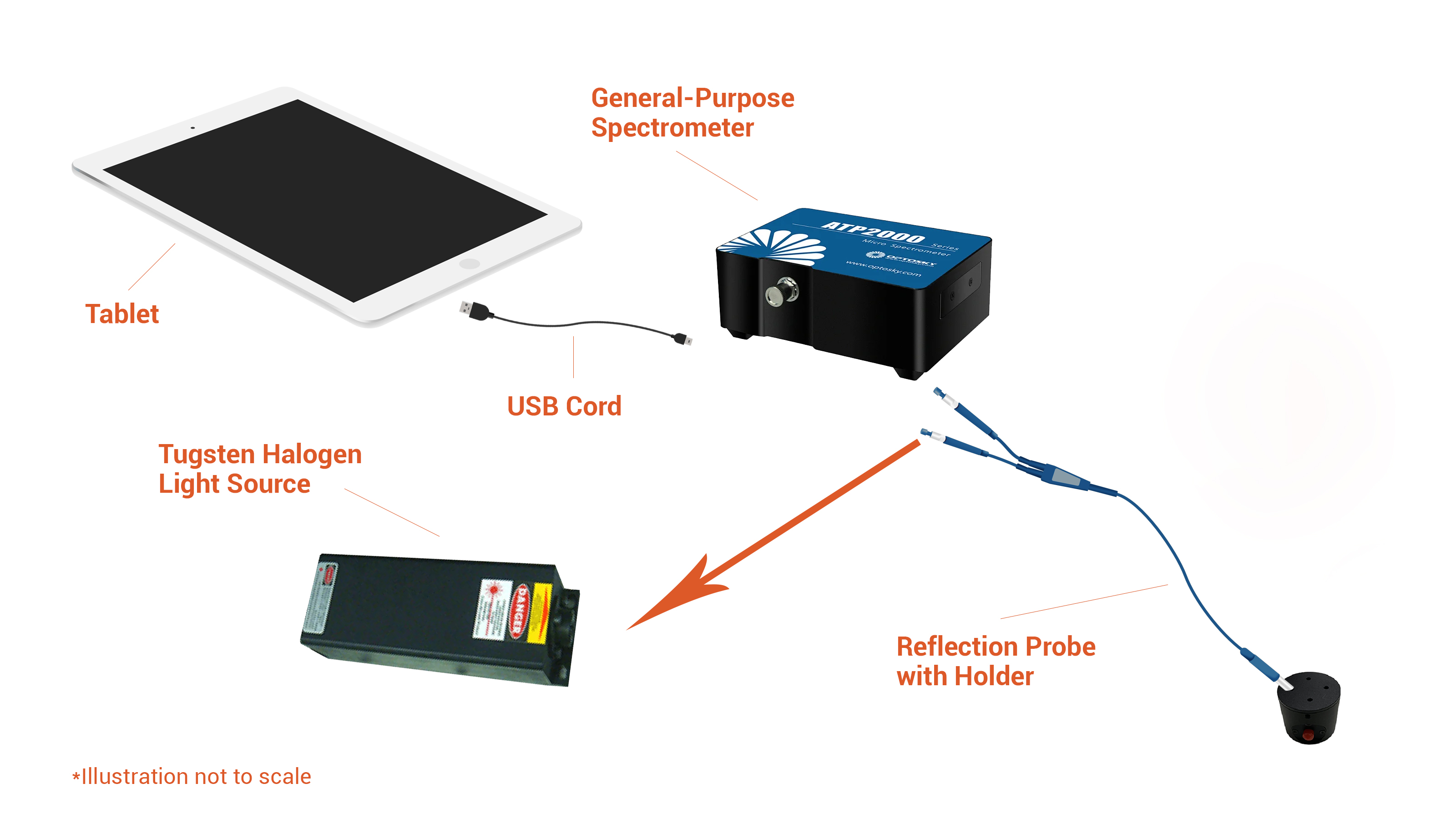

Reflected Color
A general-purpose spectrometers like the ATP1010, ATP2000P and ATP5020P are a good choice for color measurements, although several options – are well suited for industrial use. Complete your system with an application-appropriate combination of light source, sampling optics, reflection standards and operating software.

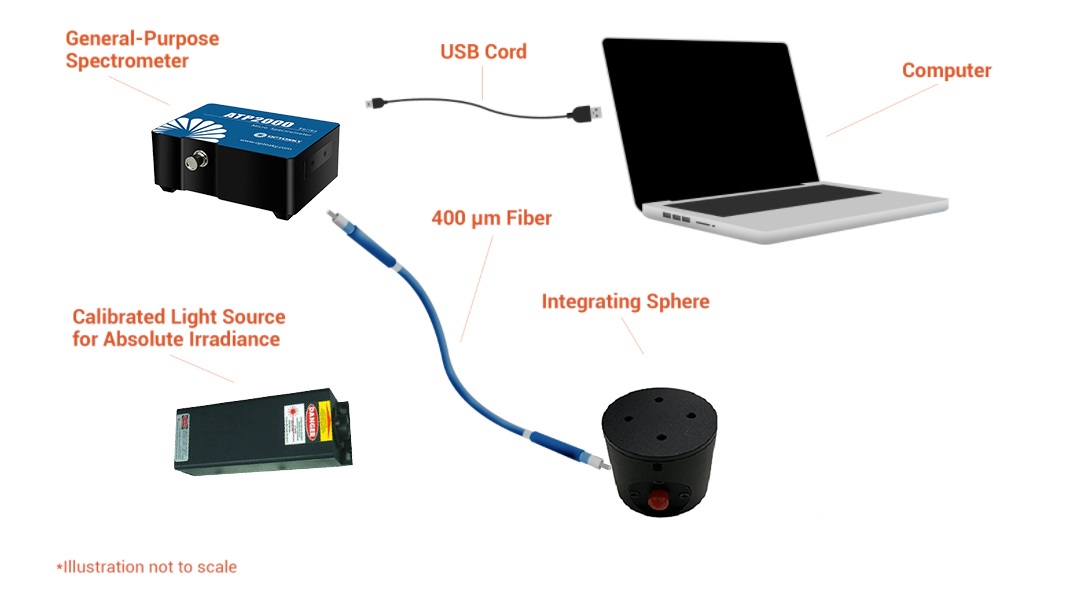

When measuring the color output of an LED, digital display or other emissive source, you’ll need sampling optics like an integrating sphere to collect the emitted light from sample and route it to the spectrometer. Also, you’ll need to calibrate the spectrometer to have an accurate scale for the spectrometer response at each wavelength.

Attachment ( Click picture to more details )

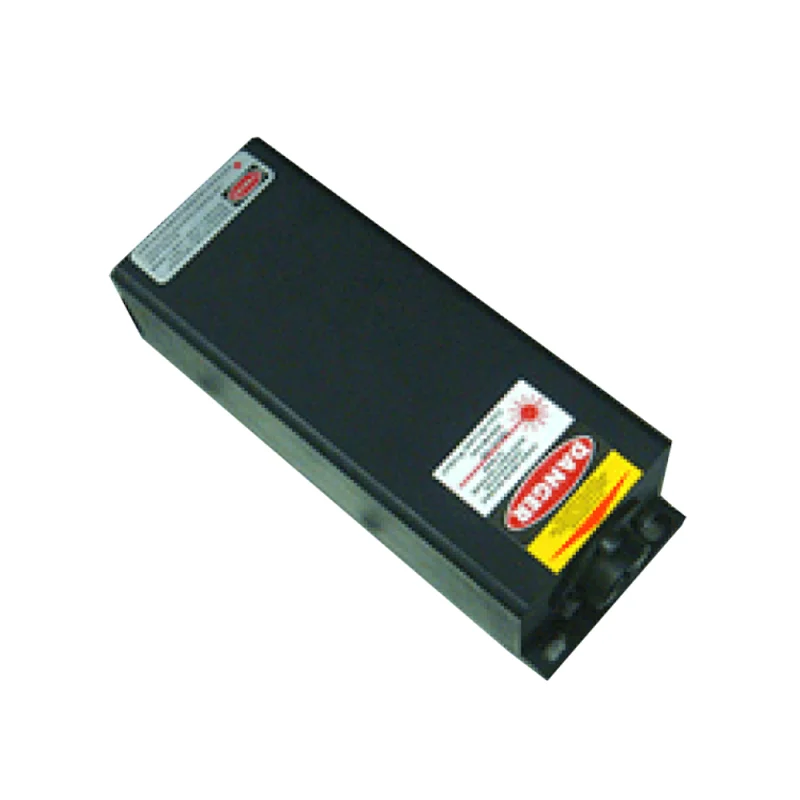

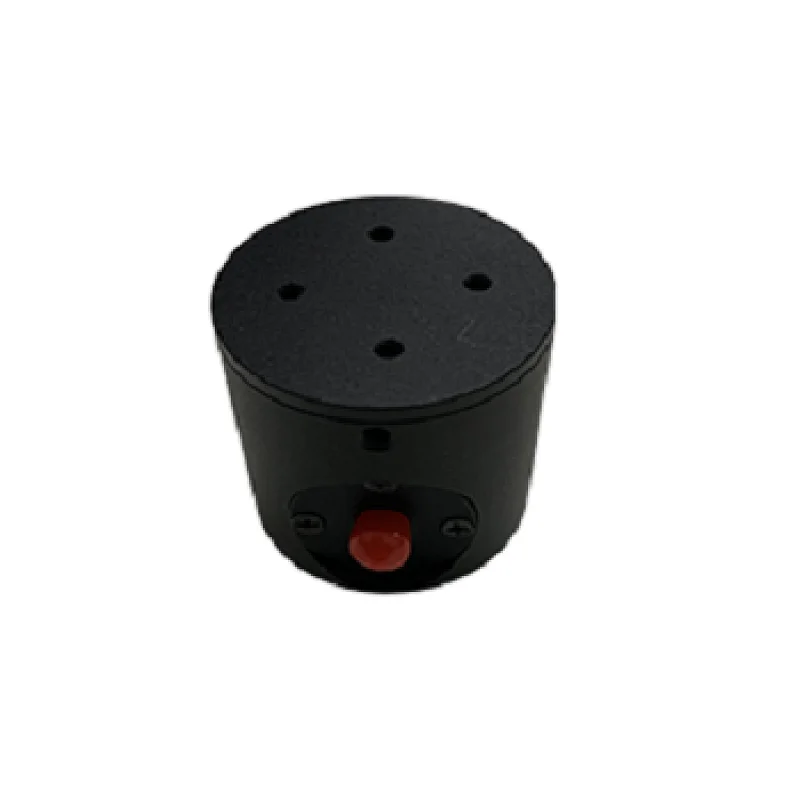

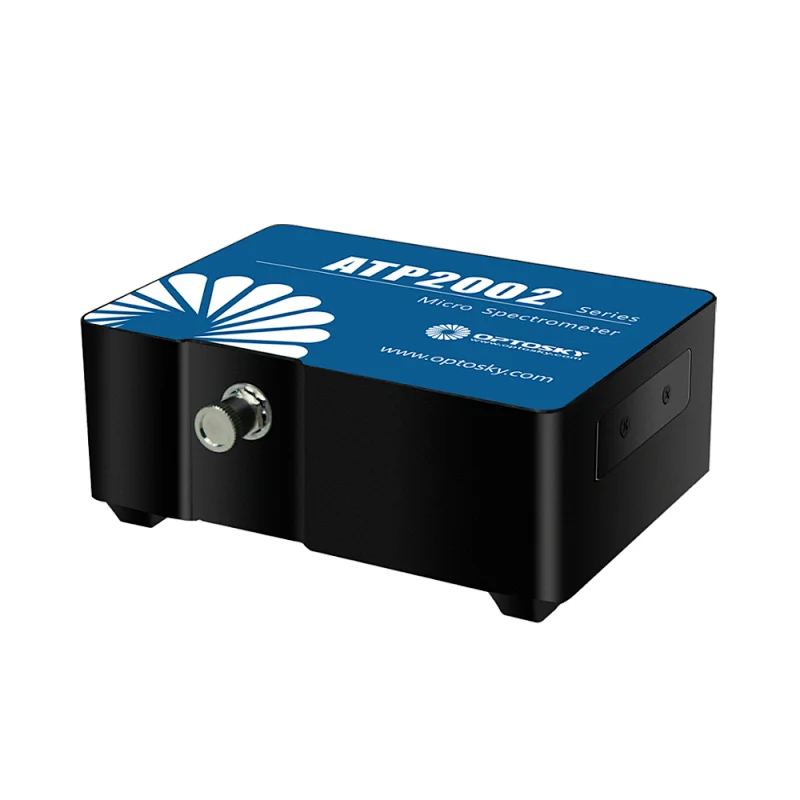

ATP2002 spectrometer ATG1002 Tungsten Halogen Light Source UV-Visible Fibers Reflection Probes Integrating Spheres





ATP2002 spectrometer ATG1002 Tungsten Halogen Light Source UV-Visible Fibers Reflection Probes Integrating Spheres
